Hochiki Intrinsically Safe Conventional Rate of Rise Heat Detector
£45.58
Summary

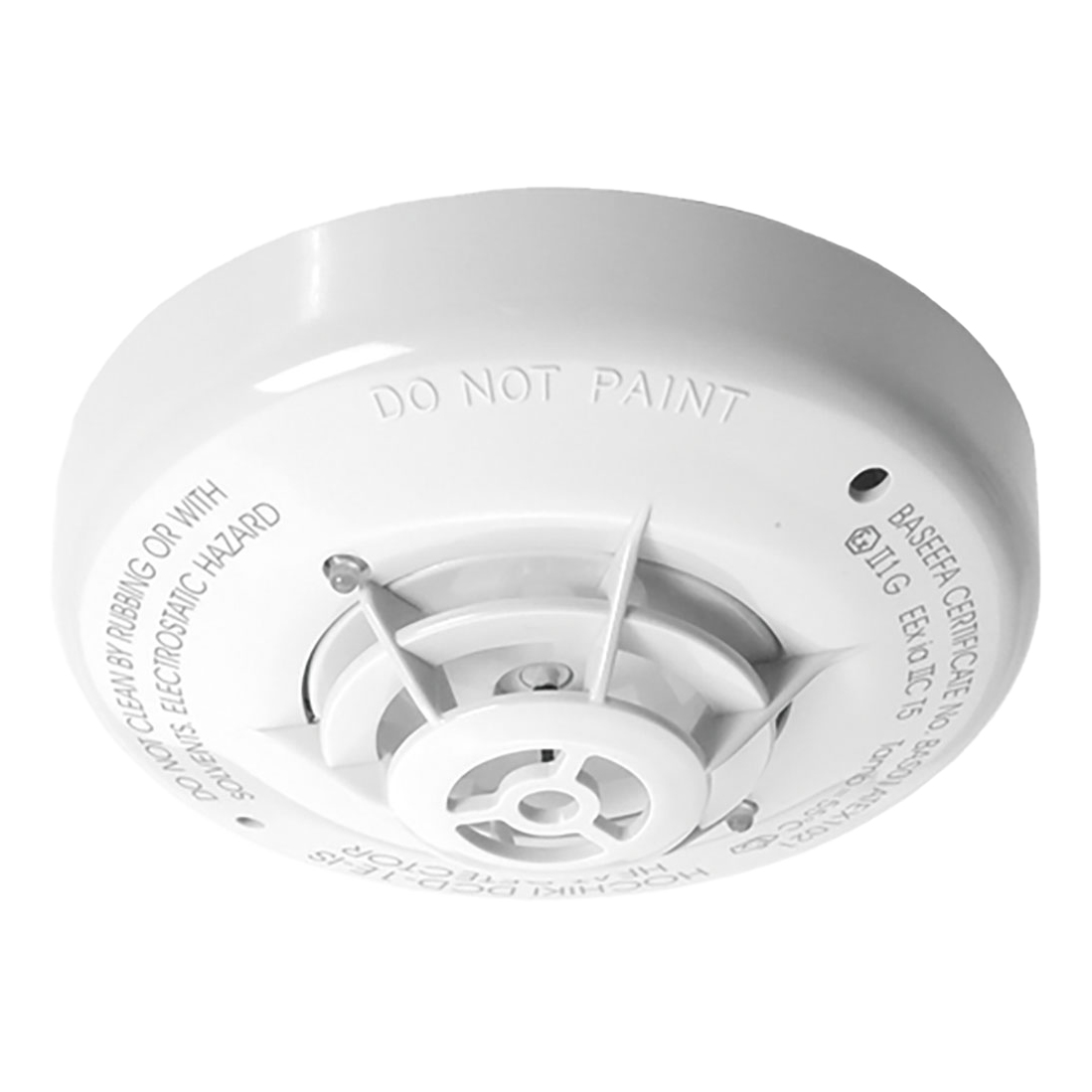

The Hochiki DCD-1E-IS is an Intrinsically Safe Conventional Rate of Rise Heat Detector designed for use in hazardous areas. It features a 60° fixed temperature element and a remote indicator output. This detector is suitable for installation in areas classified as Category 1, including all lower categories, and is approved by LPCB and Germanischer Lloyd. With its electronics-free mounting base and twin fire LEDs for 360° viewing, the DCD-1E-IS ensures reliable performance in challenging environments.
Features
- Twin fire LEDs allow 360° viewing
- Electronics-free mounting base
- Remote indicator output
- ATEX classification to intrinsic safety
- Suitable for installation in Category 1 areas
- Approved by LPCB and Germanischer Lloyd
Specifications
- Ordering Codes : DCD-1E-IS – Ivory / DCD-1E-IS(WHT) – White
- Operating Voltage : 15–30 VDC
- Quiescent Current (typ) : 50 µA
- Maximum Current In Alarm : 50 mA
- Operating Temperature Range : -10 °C to +55 °C
- Storage Temperature Range : -30 °C to +70 °C
- Maximum Humidity : 95% RH – Non condensing (at 40 °C)
- Ingress Protection Rating : IP63
- Colour / Case Material : Ivory or White / ABS
- Weight (g) / Diameter (mm) / Height (mm) : 97 / 100 / 40
- Compatible Base / Base Height (mm) : YBN-R/4(IS) / 8
- Base Fixing Centres (mm) : 48~74
- Approvals : LPCB, Germanischer Lloyd
- ATEX Certification : Certificate Number: BAS01ATEX1021X
- Intrinsic Safety Classification : II I G Ex ia IIC T5 (-20°C ≤ Ta ≤ +55°C)
Downloads
- Datasheet (Adobe PDF)
