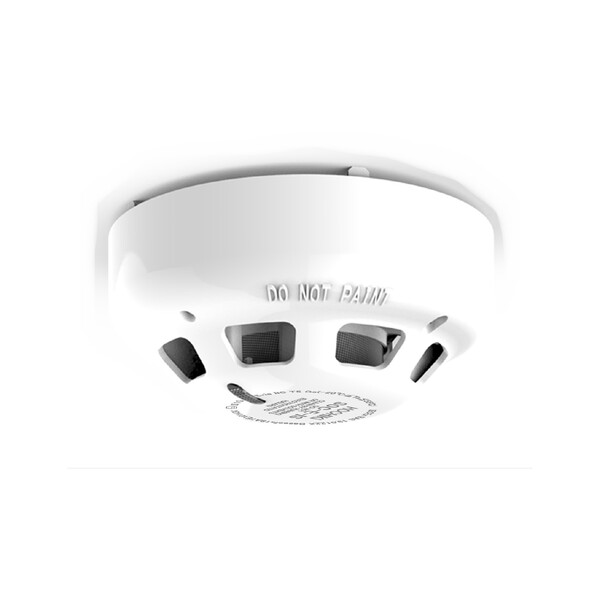

Hochiki Intrinsically Safe Conventional Smoke Detector
£61.79
Summary
The SOC-E-IS is an advanced Photoelectric Smoke Detector designed for compatibility with most conventional systems. It features Hochiki’s unique High Performance photoelectric smoke chamber, eliminating the need for Ionisation Detectors in many applications. The detector incorporates ‘ASWV’ Drift Compensation technology to maintain optimal sensitivity, reducing false alarms. If contamination exceeds limits, the integral red LED provides a visual warning by flashing every three seconds. The smoke chamber is easily removable for cleaning and features a unique baffle design that allows smoke entry while blocking ambient light.
Key Features
- Removable, high performance chamber
- Automatic sensitivity window verification (ASWV) with drift compensation technology
- Remote indicator output
- Wide voltage range (9.5 ~ 30 VDC)
- Low profile design with one piece outer cover
- Single fire LED with 360° viewing
- ATEX classification to Ex ia IIC T5 Ga (-20°C ≤ Ta ≤ +55°C)
- Suitable for installation in areas at Category 1 (including all lower categories)
- Approved by LPCB, VdS, and DNV-GL
Specifications
- Ordering Codes : SOC-E-IS – Ivory / SOC-E-IS(WHT) – White
- Compatible Base : YBN-R/4(IS)
- Operating Voltage : 12 – 30 VDC
- Quiescent Current (typ) : 35 µA
- Maximum Current In Alarm : 40 mA
- Out of Sensitivity Current (RED flashing LED) : 120 µA
- Remote Indicator Drive : 20 mA (max)
- Operating Temperature Range : -20 °C to +55 °C
- Storage Temperature Range : -30 °C to +60 °C
- Maximum Humidity : 95% RH – Non condensing (at 40 °C)
- Ingress Protection Rating : IP42
- Colour / Case Material : Ivory or White / ABS
- Weight (g) / Dimensions (mm) : 106 / Ø 100 x H 48
- Approvals : LPCB, VdS, Bassefa 19ATEX0143X, IECEx BAS 19.0122X, DNV-GL
- Certificate Number : Baseefa19ATEX0143X EC
- ATEX Certification : Intrinsic Safety to classification Ex ia IIC T5 Ga (-20°C ≤ Ta ≤ +55°C)
- LPCB Certification : EN 54-7:2000 + A1:2002 + A2:2006
- Other Certification : VdS (G220019), DNV-GL, SIL2*, EAC*, Intertek
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.11 kg |
|---|---|
| Colour | |
| System Type |
