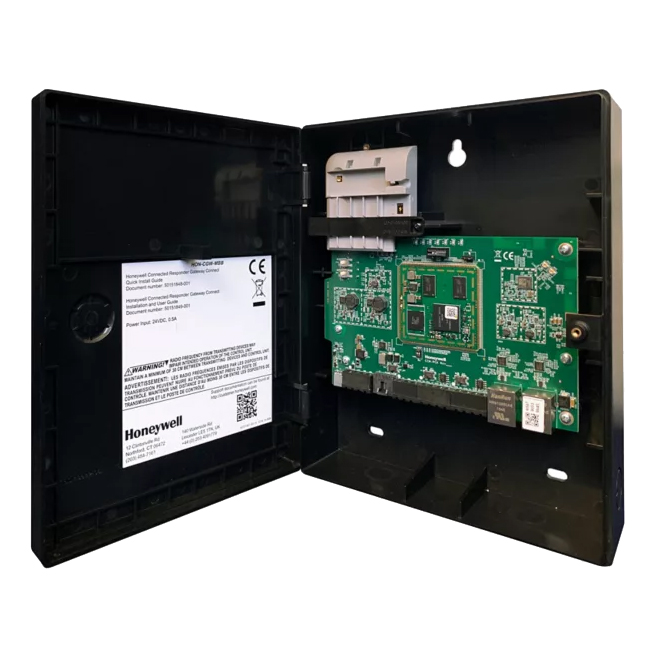

Honeywell CLSS Gateway
£353.63 (inc VAT: £424.36)
Features
- Connects directly to Honeywell/Morley fire alarm control panels or a network of FACPs
- Easy connection between the Gateway and CLSS CheckPoint mobile application
- Bluetooth® mobile pairing for Gateway Configuration and Control capability
- Panel connection options include Standalone Panel, Networked Panel, and Standalone with Digital Voice Control
- Wireless or Wired Connection from the Gateway to the CLSS Cloud
- Serves as a Fire Alarm Communicator to central station when used with optional cellular module and feature activation
- The FACP connected to the Gateway (the master panel) collects system data and sends it to the Cloud via the Gateway
- Can be used for portable or permanently installed applications
Specifications
Power
- Nominal Voltage Range : Consumes 12V to 32V DC from the fire alarm control panel (FACP) or from an external power source
- Current : The power requirement varies with the number of interfaces used
- Typical Current Consumption : 0.1A at 24V (with wireless connection)
- Peak Load : 0.25A at 24V
Environment:
- Temperature : 14°F to 140°F (-10°C to 60°C)
- Relative Humidity : 1% – 94% (non-condensing)
Physical
- Enclosure Dimensions : 10.25″ L x 8″ x 3.75″ (260.03mm L x 203.2mm W x 95.25mm D)
- Weight : 1.6 lb (0.73 kg)
Wireless Transmitter
- VBAT : 3.6V
- Ambient Temperature : 77°F (25°C)
- Output Power : @module RF antenna port
- Target Power : Meets Spectrum Mask and EVM compliance
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.73 kg |
|---|
