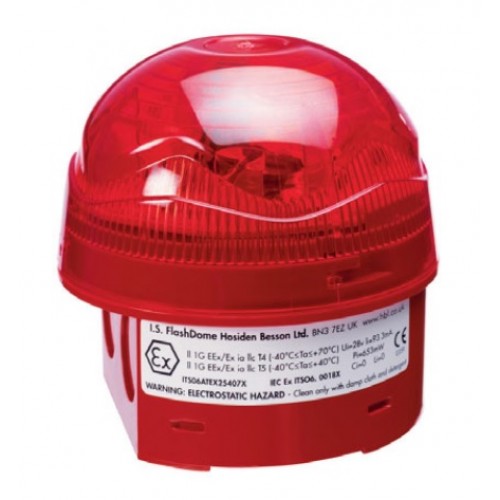

IS FlashDome Intrinsically Safe Beacon
£99.88 (inc VAT: £119.86)
Key features
- Intrinsic safe certified beacon.
- Suitable for zones 0, 1 or 2.
- IP66 rated.
Downloads
Summary
The IS FlashDome is an intrinsically safe beacon for use in hazardous areas. Certified to ATEX and IEC Ex, the IS FlashDome is designed for use in Zones 0, 1 & 2.
View full overview Show less
In order to be intrinsically safe, the IS FlashDome must be powered via an approved 28 V 300 zener barrier or galvanic isolator. Suitable barriers and isolators are available from Vimpex.
Key Features
- Intrinsic safe certified beacon.
- Suitable for zones 0, 1 or 2.
- IP66 rated.
Specifications
- Power Supply : 15 – 28 Vdc
- Current : 5 mA (@24 Vdc via a 28 V 300 barrier)
- Flash Frequency : 1 Hz (1 flash/second)
- Intrinsic Safety Approval :
- EN 60079-0:2004, N60079-26:2004, EN50020:2002*
- II 1G EEx/Ex ia IIC T4 (-40oC
- II 1G EEx/Ex ia IIC T5 (-40oC
- ITS06ATEX25407X IEC Ex ITS06. 0018X
- WEEE Compliant
- Installation :
- Connection must be made via a certified galvanic isolator
or zener barrier with output parameters not exceeding
Ui=28V, Ii=93mA, Pi=0.66W. The output current of the
barrier must be limited by resistor ‘R’ such that Ii=Ui/R - Suitable for Zones : 0,1,2
- Operating Temperature : -40 to +70 C
- IP Rating / Material :
- IP66 / Body – Flame retardant ABS
- Lens – Polycarbonate
- Weight : 0.14 kg
