Kidde Commercial Conventional Hand-held Device Programmer
£115.81 (inc VAT: £138.97)
Key features
- Hand held and portable for easy operation
- 4-digit alphanumeric LCD display for clear visibility
- Low-consumption design with hibernation and power-saving functions
Downloads
Summary

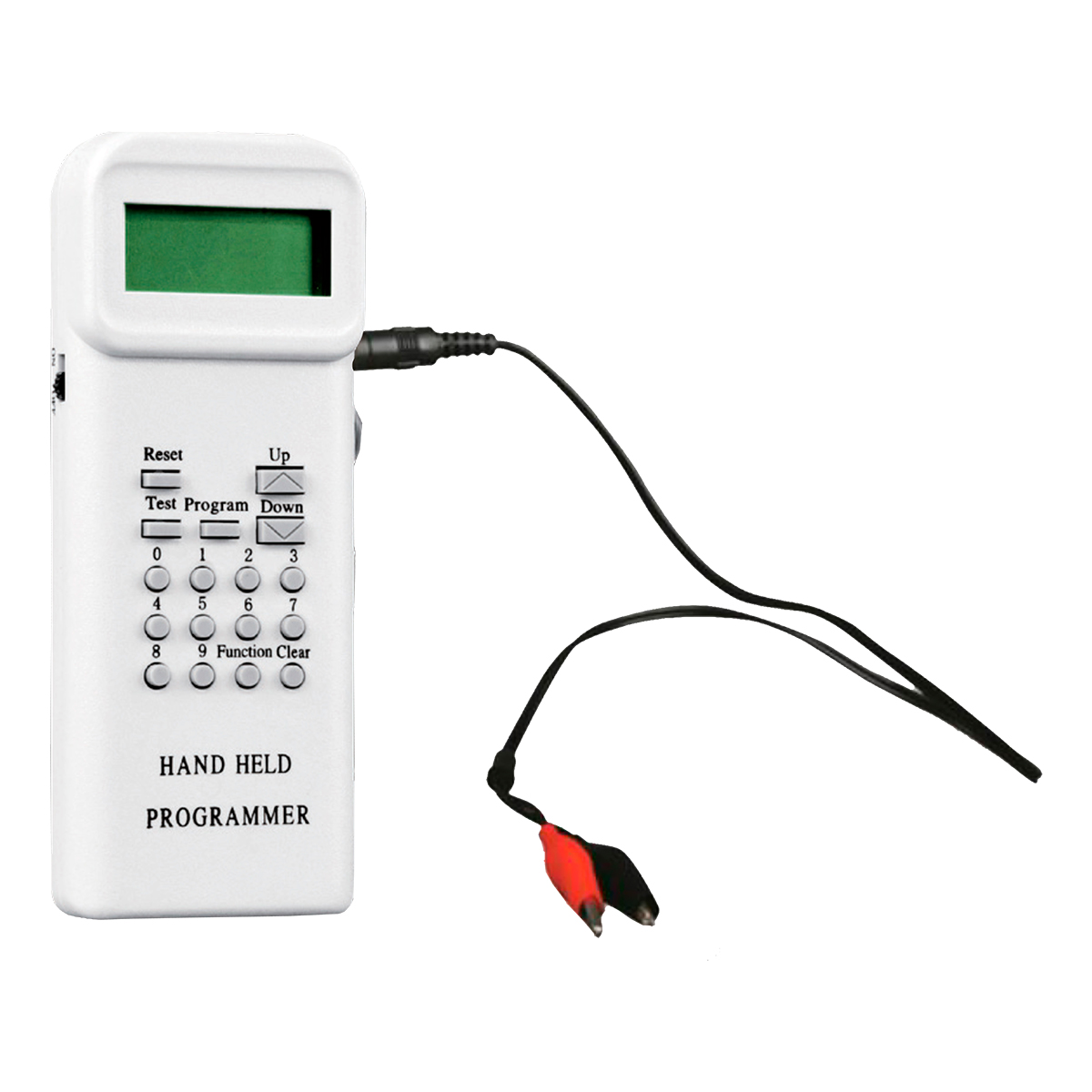

The NC-D-PT is a hand-held tool specifically designed for the programming and configuration of NC-Series conventional point and beam detectors. This versatile device allows users to read parameters and adjust the operating modes and sensitivities of these detectors, making it ideal for harsher or specialized applications where default settings may not be sufficient.
View full overview Show less
With its user-friendly interface, the NC-D-PT enables easy configuration of sensitivity levels and status LED indications for conventional point detectors, as well as sensitivity levels and beam range for conventional beam detectors. This tool is essential for ensuring optimal performance in various detection scenarios.
Features
- Configure conventional point detector sensitivity levels
- Configure conventional point detector status LED powered indications
- Configure conventional beam detector sensitivity levels
- Configure conventional beam detector beam range
- Battery low indication for user awareness
Specifications
- Status Indication : LCD Display
- User Interface : LCD Display
- Compatibility : NC-Series Point & Beam Detectors
- Connectivity : I2C & Fly Leads With Clips
- Batteries : 1 x 9 V (Laminated)
- Current Consumption : ≤100 μA (Standby), ≤8 mA (Operating)
- No. Of Cable Cores : 2
- Terminals : 1
- Auto Power Off : 100 s
- Physical Dimensions : 64 × 164 × 24 mm (W x H x D)
- Net Weight : 150 g
- Colour : Grey
- Material (Body) : ABS
- Operating Temperature : -10 To +65°C
- Storage Temperature : -30 To +75°C
- Relative Humidity : 10 To 95%, Non-Condensing
- Environment : Indoor
- Compliancy : CE, REACH, RoHS 3, WEEE
- Certification : CE
