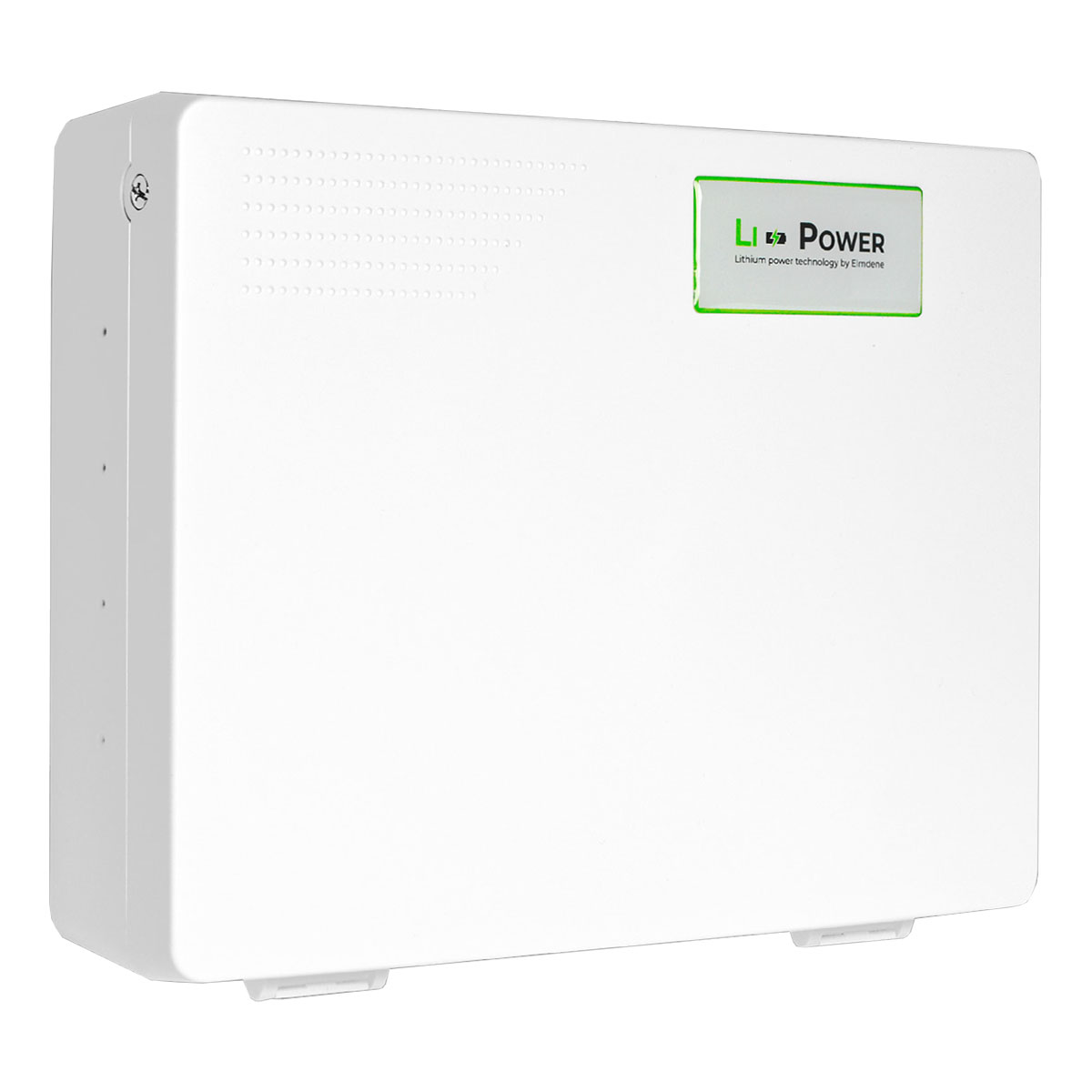

Li-Power 12V Lithium Intruder Power Supply
Summary
The Li-Power power supplies are designed to house and power common alarm signalling communicators, featuring integrated lithium battery packs. These units offer a sleek, low-profile enclosure that provides a compact and flexible solution for intruder installations, meeting both Grade 2 and Grade 3 requirements as per EN50131-6:2017 and PD6662 standards.
Available in two variants, the LPS-12-G2 and LPS-12-G3 models offer 12-hour and 30-hour battery backup respectively. These power supplies are ideal for housing communication alarm signalling devices, providing reliable power with comprehensive battery management and safety features.
With a focus on environmental impact, the lithium batteries used are less toxic and easier to dispose of than traditional lead-acid batteries, offering a lighter weight and reduced packaging for more efficient transportation.
Features
- 12V dc power supply with integrated lithium batteries
- Ideal for housing common communication alarm signalling devices
- Provides 150mA to load
- Mains fail signalling (EPS)
- General PSU fault signalling (GEN)
- Front and rear tamper protection
- Sleek, compact plastic enclosure
- Compliant with EN50131-6 Grade 2 & Grade 3
- Comprehensive battery management
- Deep discharge protection
- Over voltage and over current protection
- Over and under temperature protection
- Short circuit protection
- Over charge protection
- Battery fault detection and signalling (APS)
- Extensive battery testing
- UN38.3 certified: Transportation for Lithium Batteries
- Lifetime warranty (excluding battery)
Specifications
Technical Specifications
- Output : 12V dc
- Rated Input Voltage : 100-240V ac
- Operating Temperature : 5 to 40°C
- Fault Outputs : EPS fault (mains fail), GEN fault (PSU fault), APS fault (battery fault)
Approvals
- Compliant with : EN50131-6:2017
- UN38.3 : Transportation for Lithium Batteries
- CE mark
- UKCA mark
Ordering Information
- Part No : LPS-12-G2
- Description : 12Vdc output, Compliant with EN50131-6 (Grade 2), 12 hour battery backup
- Dimensions : L266 x W195 x D60 (mm), 1.0kg
- Part No : LPS-12-G3
- Description : 12Vdc output, Compliant with EN50131-6 (Grade 3), 30 hour battery backup
- Dimensions : L266 x W195 x D60 (mm), 1.0kg
