MAXHUB Intel-i5 Windows PC Module
£833.00 (inc VAT: £999.60)
Summary

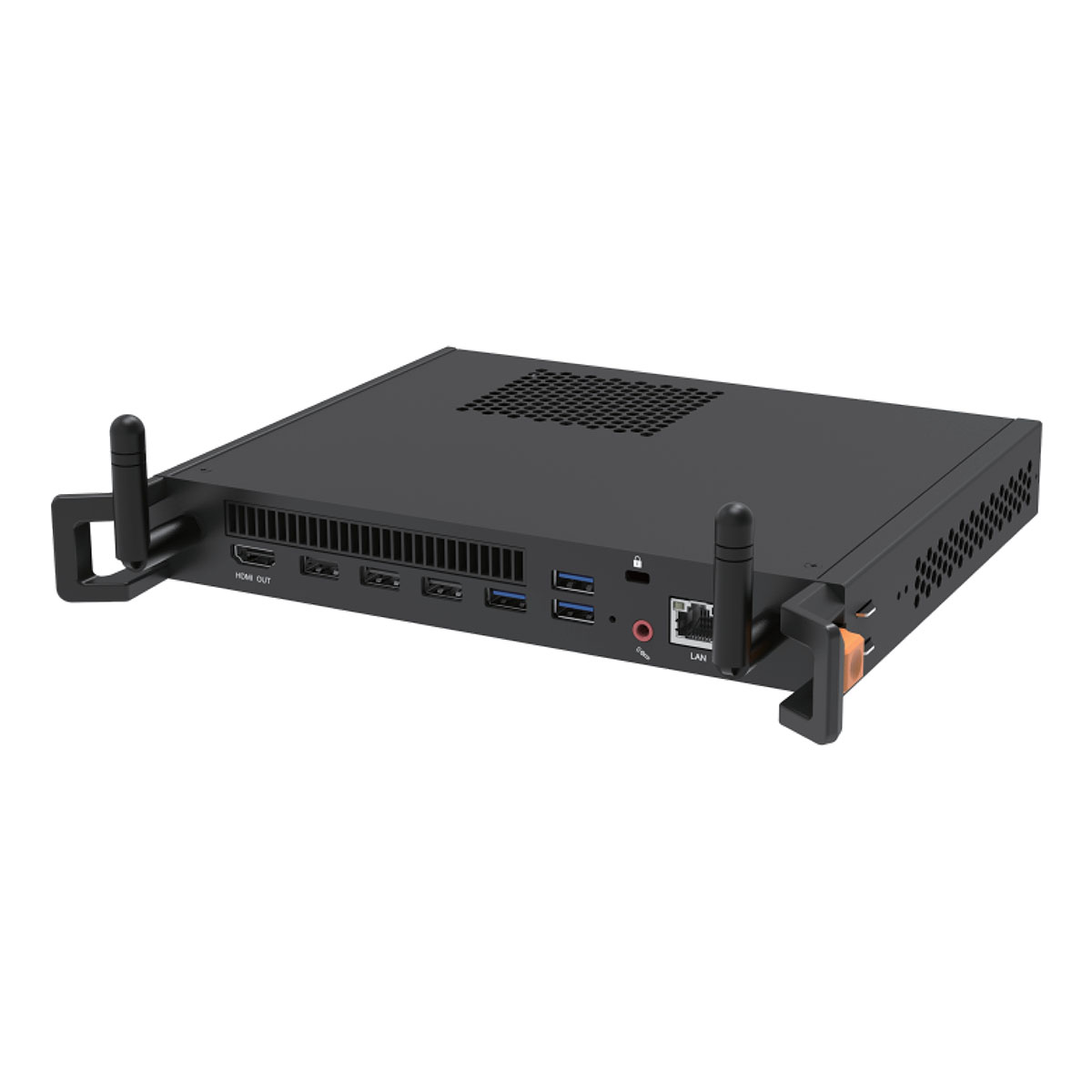

The MAXHUB MT71S is a modular PC designed to seamlessly integrate with MAXHUB Interactive Flat Panels. This powerful device is equipped with a 12th Generation Intel® Core™ i5 Processor, ensuring high performance and efficiency. Pre-installed with the MAXHUB OS, which is based on the Windows system, the MT71S offers a user-friendly interface and robust functionality for various applications.
With its compact design, the MT71S can be easily inserted into compatible interactive panels, enhancing their capabilities with advanced computing power. It is ideal for educational and professional environments where interactive and collaborative solutions are essential.
Features
- Modular PC for easy integration
- Pre-installed MAXHUB OS
- Supports 4K resolution at 60Hz
- Compatible with touchscreen interfaces
- Comprehensive connectivity options
Specifications
- Device Type : Pluggable PC Module
- Operating System : Win 10 IOT (64bit)
- CPU : 12th Generation Intel® Core™ i5 Processor -12450H
- GPU : Intel UHD Graphics (supports 4K@60Hz)
- RAM : 16G, DDR4
- Internal Storage : 256G
- Power Requirements : 18V DC
- Power Consumption Maximum : ≤ 110W
- Power Consumption Standby : ≤ 2.3W
- Operating Temperature : -10°~55°C
- Storage Temperature : -20°~60°C
- Operating Humidity : 10% – 90%RH
- Storage Humidity : 10% – 90%RH
- Kensington Slot : Yes
- Product Dimensions (W×H×D) : 244.5 × 207.2 × 32 mm / 9.67 × 8.16 × 1.26 inch
- Package Dimensions (W×H×D) : 314 × 256 × 70 mm / 12.36 × 10.08 × 2.76 inch
- Net Weight : 1.2 kg / 2.65 lbs
- Gross Weight : 1.79 kg / 3.95 lbs
- HDMI Out (2.0) : 1 (up to 4K@30fps)
- USB 3.0 Type-A : 3
- USB 2.0 Type-A : 3
- RJ45 (Ethernet, 1000M) : 1
- Microphone in : 1
- Kensington Security Slot : 1
- Standard Warranty : 3-year Warranty
Downloads
- Datasheet (Adobe PDF)
