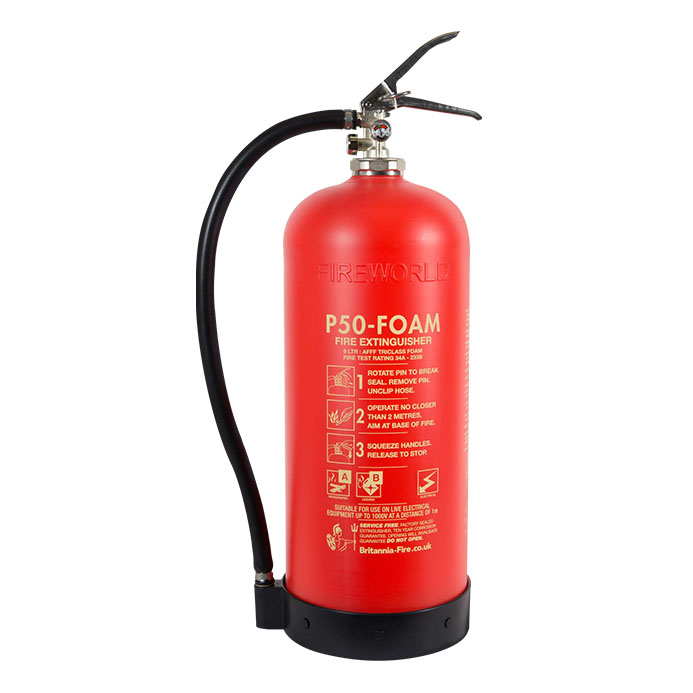

P50 Service-Free 9 Litre Foam Extinguisher
£179.20 (inc VAT: £215.04)
Summary
The P50F9 Composite Fire Extinguisher with BSX-ASX Foam is designed for excellent firefighting capabilities, effective on Class A fires involving wood, paper, and textiles, as well as Class B fires involving paints, solvents, oils, and petrochemical products. It is certified for use on live electrical equipment up to 1000V at a distance of 1 metre. The extinguisher operates within a temperature range of +5°C to +60°C, providing reliable performance in various conditions.
Features
- Manufactured in Great Britain
- 20-year life cycle with one manufacturer overhaul at 10 years
- Super strength Aramid (Kevlar®) type material yarn
- Kitemark, PED, and EN3 approved
- UV protection of the outer casing
- QA laser serial number on outer casing
- Operating valve made of nickel-plated brass
- World-recognised patented design
FAQ
Does the P50 foam extinguisher need to be commissioned?
The commissioning of an extinguisher should be carried out by a competent person. Upon removal from its packaging and transit protection, and immediately prior to placing in its designated place, the extinguisher should undergo the sequence of commissioning actions taking into account the safety precautions.
- Check the safety pin is in place and the anti tamper tag is not damaged.
- Check the fire extinguisher for any signs of damage.
- Check that both gauges are in the green, remove the magnet from the base of the fire extinguisher and pass it over the gauges, making sure the needle moves and goes back into the green.
- Ensure the identification stud in the base of the extinguisher corresponds to the colour and date on the grid at the back of the extinguisher.
- Date the back of the P50 on the date of installation.
Specifications
- Model : P50F9
- Fire Rating : 43A/233B
- Capacity : 9 Litres
- Full Weight : 11.7 Kgs
- Temp Range : +5°C to +60°C
- Operating Pressure : 12 Bar @ 20°C
- Discharge Duration : 49 Secs
- Discharge Range : 7+ Metres
- Diameter : 210 mm
- Height : 640 mm
- Test Pressure (PT) : 22 Bar
- Maximum Allowable Pressure (PS) : 15.38 Bar
- Minimum Burst Pressure : 55 Bar
- Cylinder Material : HDPE with Aramid Winding (Kevlar®)
- Operating Head Material : Brass C3771 – Nickel Plated
- Hose and Nozzle : Hose – EPDM Synthetic Rubber
Downloads
- Datasheet (Adobe PDF)
