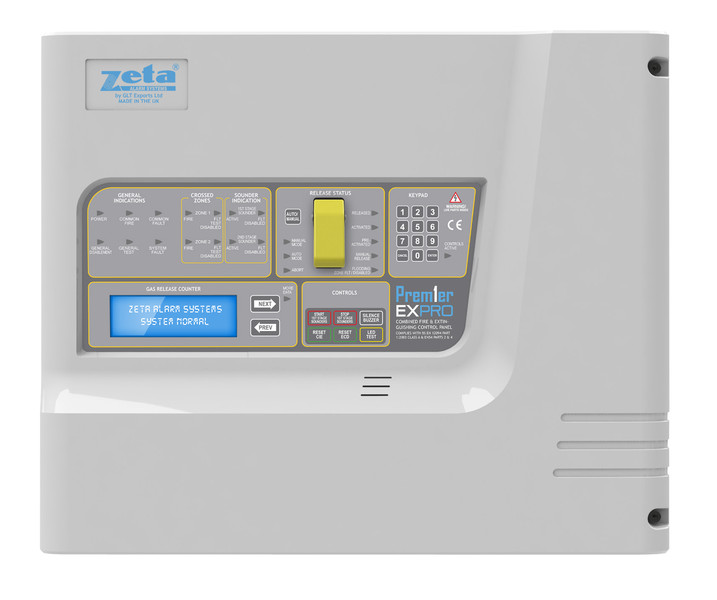

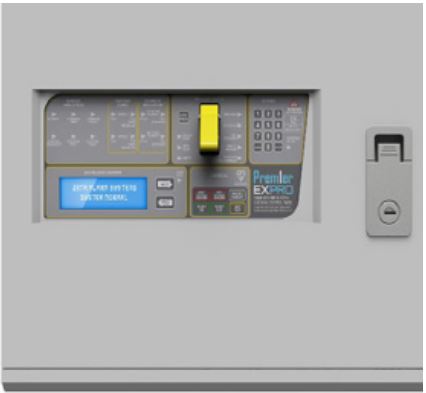

Premier EX Pro Automatic Extinguishing Panel
Summary
The Zeta Alarm Systems Premier EX Pro is the latest modern designed combined fire and extinguishing control panel, fully complying with EN54 parts 2 & 4, and EN12094 part 1. This sophisticated control system represents the cutting edge of fire suppression technology, combining advanced detection capabilities with comprehensive extinguishant release control in a single integrated unit.
Featuring a distinctive blue 4 x 20 LCD display, the EX Pro offers enhanced user interaction with a comprehensive range of advanced features including memory logging of fire, fault and system events, adjustable flood times and real-time countdown of extinguishing sequences. The intuitive interface ensures operators can quickly assess system status and take appropriate action during critical situations.
The panel is assembled in a modernised enclosure with streamlined construction designed specifically for ease of installation and termination. With its integral 2.0 Amp PSU and flexible expansion options, the EX Pro provides a complete solution for professional fire suppression applications whilst maintaining the highest standards of reliability and performance.
Features
- Blue 4 x 20 character LCD display for clear system information
- Integral 2.0 Amp power supply unit
- Real-time countdown display during extinguishing sequence
- Adjustable extinguishing delay timer (0-60 seconds)
- Programmable flooding time settings
- 1.0 Amp bottle output with end-of-line monitoring
- Memory log for 100 alarm, fault and system events
- RS485 communication output for remote devices
- 2 detection zones with 32 device capacity per zone
- 3 sounder circuits (2 x 1st stage, 1 x 2nd stage)
- 5 auxiliary relay outputs for system integration
- 5 monitored inputs for comprehensive system feedback
- Double action manual release control
- Auto/Manual mode selection with clear indication
- Abort function with dedicated controls
- Battery space for up to 2 x 7.0Ah backup batteries
- Optional 8-way relay expansion board compatibility
- Fan output for extract ventilation control
- Comprehensive LED indication array
- Modernised enclosure design for easy termination
FAQ
What detection systems can be connected to the EX Pro?
The EX Pro features 2 detection zones, each capable of supporting up to 32 devices with end-of-line monitoring at 4.7k ohms. The system monitors for both open and short circuit conditions with a maximum cable length of 250m per zone.
How does the countdown feature work during extinguishing?
The blue 4 x 20 LCD display shows a real-time countdown during the extinguishing sequence, providing clear visual indication of the time remaining until discharge. The extinguishing delay timer is adjustable from 0-60 seconds to suit specific application requirements.
What expansion options are available?
The system supports optional expansion boards including the EX-OER8 (8-way relay board) and EX-OER3 (3-way relay board) for additional voltage-free contacts. Remote status indicators can be connected via the RS485 output for distributed system monitoring.
What power supply and battery backup is provided?
The EX Pro includes an integral 2.0 Amp power supply operating at 24V DC nominal. Battery backup space accommodates up to 2 x 7.0Ah, 12V DC sealed lead acid batteries for reliable operation during mains power failure.
How many events can the system log?
The system maintains a comprehensive memory log of up to 100 events, recording fire alarms, faults and system activities with time and date stamps for complete audit trail and maintenance purposes.
What sounder circuits are available?
The panel provides 3 sounder circuits: S1A and S1B for first stage alarms, and S2 for second stage alarms. Each circuit operates at 21-28V DC and is fused at 150mA with a maximum cable length of 60m.
Specifications
- Model: EX-PRO
- Part Number: 37-096
- Supply Voltage: 230V AC +/- 10%
- System Voltage: 24V DC (Nominal)
- Zone Capacity: 32 Devices
- Number Of Detection Zones: 2 – EOL (4.7k)
- Line Monitoring: Yes (Open & Short Circuit)
- Max Cable Length Per Zone: 250m
- Zone Quiescent Current: 2mA max – EOL
- Number Of Sounder Circuits: 3 (S1A, S1B for 1st Stage, S2 for 2nd Stage)
- Sounder Output Rating: 21-28V DC, fused at 150mA per circuit
- Max Sounder Cable Length: 60m
- Number Of Auxiliary Outputs: 5 (fault, 1st stage fire, 2nd stage fire, extract fan, gas fired output)
- Relay Rating: 30V – 1 Amp
- Bottle Output: 1.0 Amp – EOL 18K
- Monitored Inputs: 5 (Manual release, low pressure, gas fired, auto input & abort)
- E.O.L Value: 18K
- Battery Space: Up to 2 x 7.0 AH, 12V DC SLA batteries
- IP Rating: IP32
- Operating Temperature: -10 to 50°C
- Box Dimensions: (W) 370 x (H) 311 x (D) 113mm
- Display Type: 4 x 20 LCD
- Event Log Capacity: 100 Events
- Extinguishing Delay Timer: 0-60 seconds
- Communication Output: RS485
- Approvals: EN54 parts 2 & 4, EN12094 part 1
Downloads
- Brochure (Adobe PDF)
- Installation Manual (Adobe PDF)
Additional information
| Weight | 4 kg |
|---|---|
| Enclosure | Standard Enclosure, Metal Enclosure |
| Device Type | |
| Networkable |
