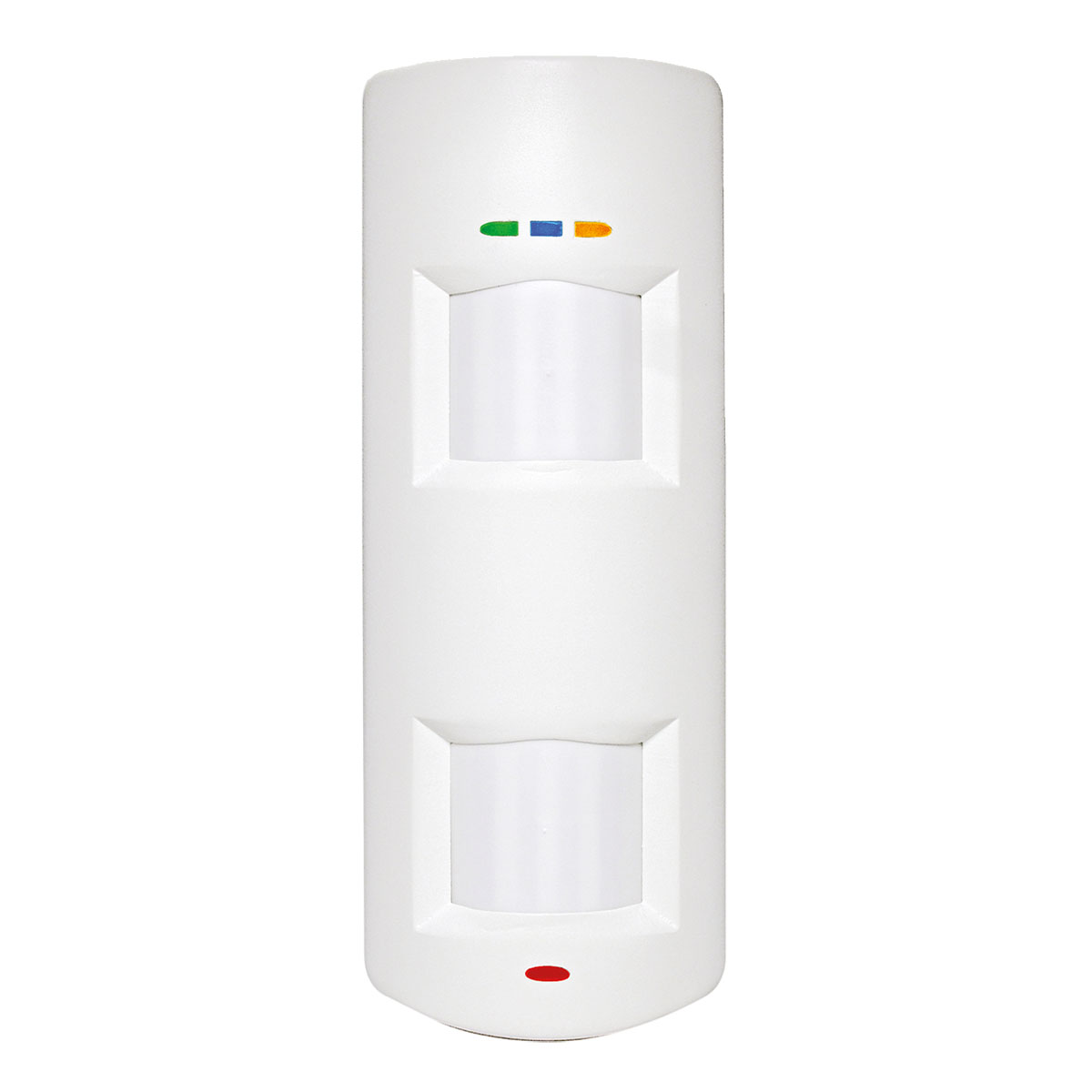

Pyronix TMD15 15m Digital Dual Technology and Combined Non-overlapping Detector
Summary
The TMD15 is a 15m Digital Dual Technology and Combined Non-overlapping Detector. This unique product features two non-overlapping detectors, a PIR and a Dual Technology, all housed in a robust casing. Built on Pyronix’s proven patented technologies, which have been refined over the last 25 years, the TMD15 offers outstanding detection performance with optimum reliability. It is designed to meet the latest industry regulations, ensuring high standards of security and efficiency.
Features
- 15m volumetric detection range
- Digital auto sensitivity adjustment
- Anti-mask protection for both PIR and microwave
- Foam gasket sealed optics to prevent false alarms
- Anti-blocking technology for high security
- Separate relay outputs for independent signaling
Specifications
- Supply Voltage: 9-16V
- Current Consumption: <30mA
- Relay Output: 3 x SELV limits; 60VDC 50mA (42.4 Vac peak)
- Mounting Height: 1.8m – 2.4m = 15m, 3m = 12m
- Certified Mounting Height: 2.4m
- Detection Speed: 0.25 – 2.5m/s
- Lenses: 2 Volumetric lenses, with no overlapping zones
- Detection Method: 2 Low noise dual element passive infrared sensors and a microwave doppler unit
- Anti-Masking Detection Range: 0m – 1m
- Dimensions: 177 x 70 x 40mm
- Warranty: 5 years
Downloads
- Datasheet (Adobe PDF)
