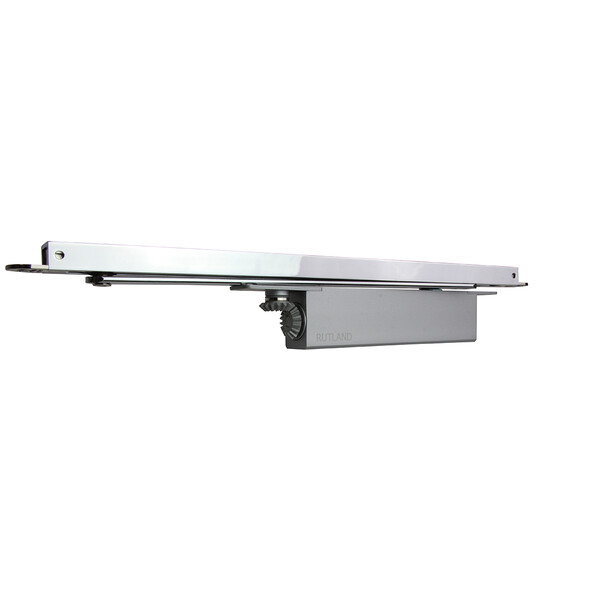

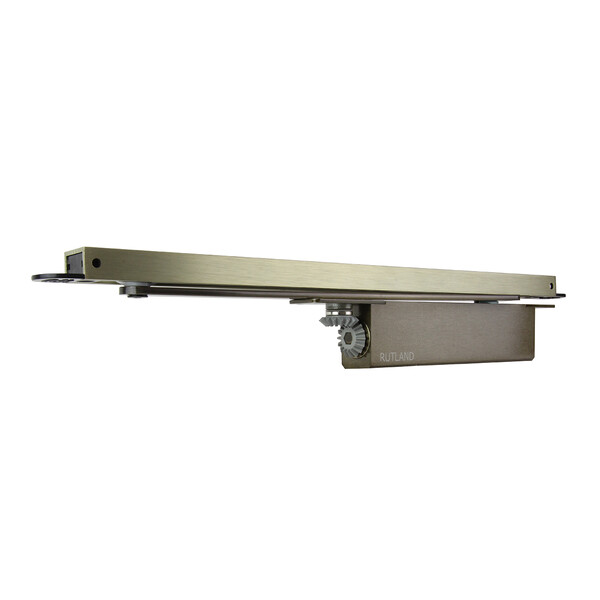

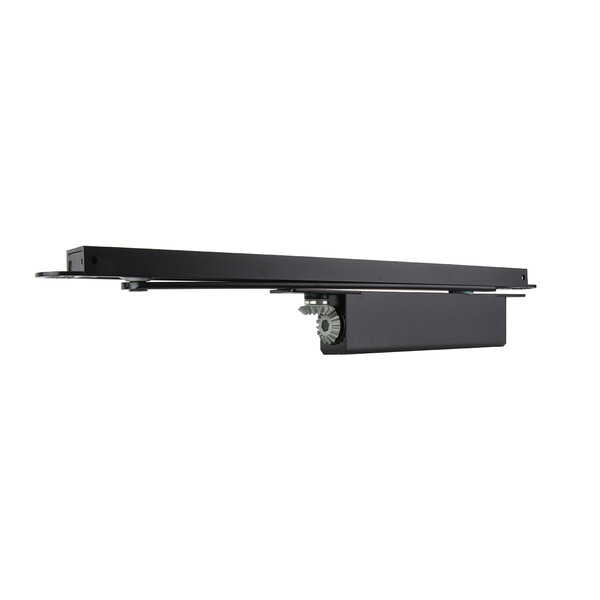

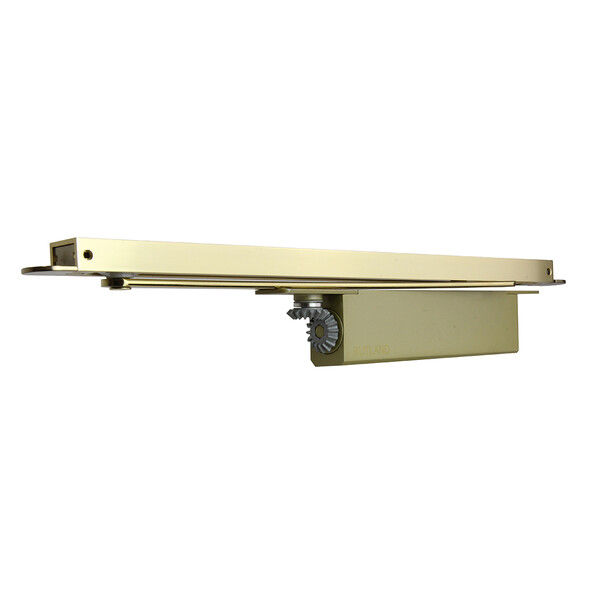

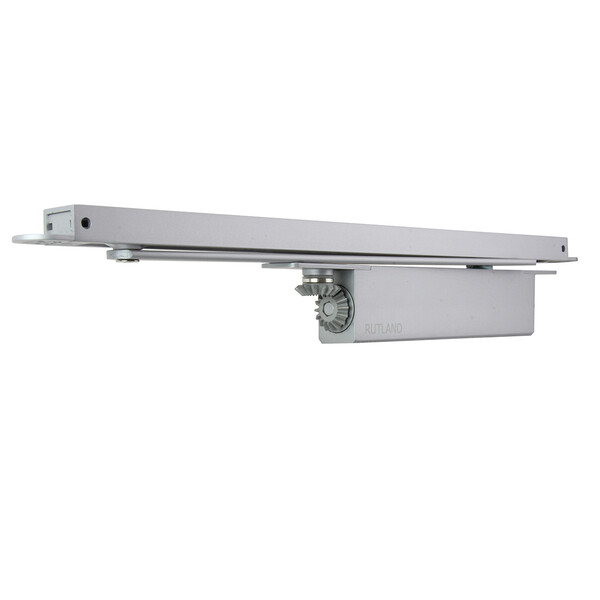

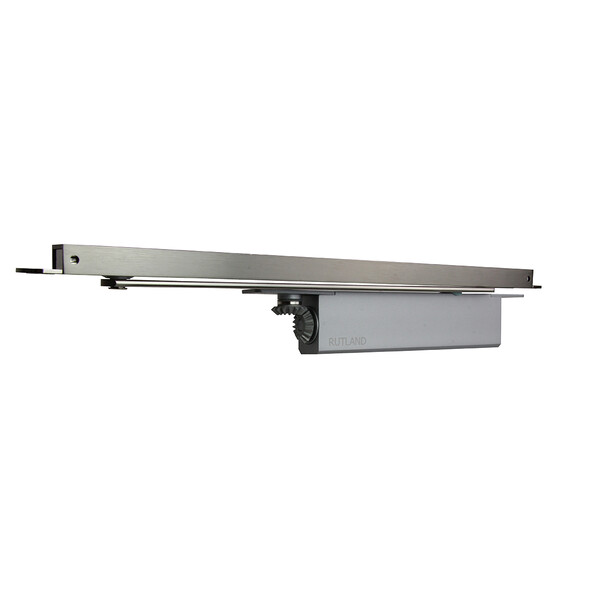

Rutland ITS 11204 Concealed Cam Action Door Closer
Summary
The ITS.11204 is a concealed slide arm door closer designed for seamless integration into door systems. It features a concealed cam and roller mechanism, providing a sleek and unobtrusive appearance while maintaining robust functionality. This door closer is suitable for doors with a minimum thickness of 44mm, offering a versatile solution for various applications.
With variable power adjustment from EN2-4, the ITS.11204 ensures optimal performance across a range of door sizes and weights. It is CE marked and meets the EN 1154 performance standard, ensuring compliance with industry regulations. The ITS.11204 is available in multiple finishes, including Silver, Satin Nickel, Polished Nickel, Electro Brass, Antique Brass, and Black, allowing for aesthetic flexibility.
Features
- Concealed cam and roller mechanism
- Variable power size EN 2-4
- Universal fitting for various door types
- Corrosion Grade 3 for internal use
- Easy-to-read installation instructions
Video
Specifications
- Material : High-quality components
- Power Size : EN2-4
- Finish Options : Silver, Satin Nickel, Polished Nickel, Electro Brass, Antique Brass, Black
- Max Door Weight : 80kg
- Max Door Width : 1100mm
- Opening Angle : 110º
- Fire Tested : Up to 60 minutes
- Certification : BS EN 1154, BS EN 1634
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2 kg |
|---|---|
| Colour | Silver, Satin Nickel, Polished Nickel, Electro Brass, Antique Brass, Black |
| Device Type | |
| Mounting | Door |
