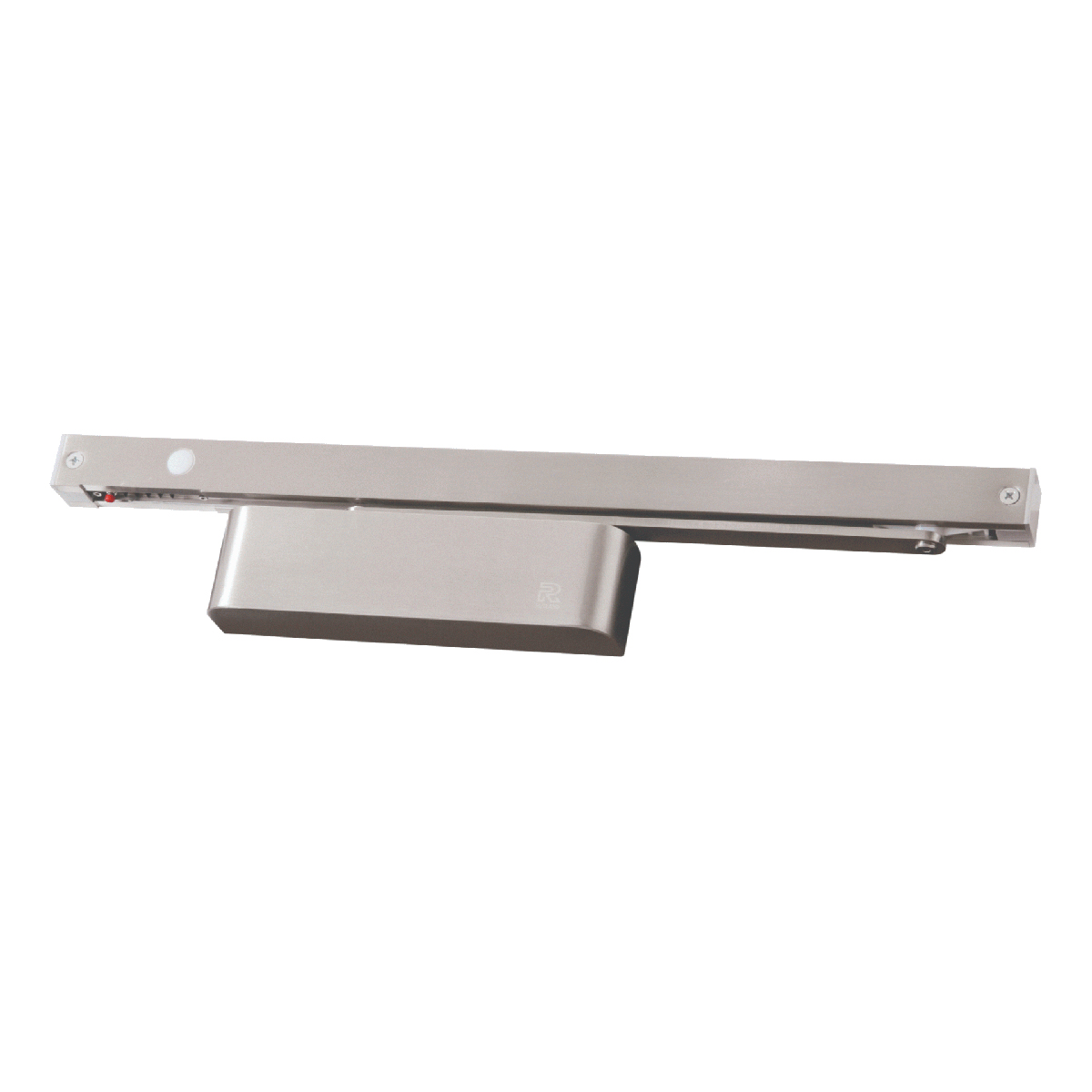

Rutland TS.FIRETRAK.115 Electromagnetic Slide Arm Closer
Summary
TS.FIRETRAK.115 Electromagnetic Slide Arm Closer is a surface mounted Electromagnetic hold-open slide arm with cam action door closer designed for fire and smoke compartmentation doors. Fire and smoke doors will operate in a controlled close with the TS.FIRETRAK.115 when the fire alarm is activated.
Features
- Variable power size EN2-5, does doors up to 110kg & 1250mm wide
- Is a cam action mechanism, so assists BS8300 for DocM contracts
- Tested to EN 1155 (electrical compatibility), EN 1154 (controlled door closing devices) & EN1634 (dual orientation fire tests)
- Universal application – can be fitted in Standard, Parallel arm or Transom fitting position. Push, Pull, Left or Right
- Third-party fire certificated
- UL and ANSI grade 1 classification
- 5 year guarantee
Specifications
- Opening Angle : 130º
- Door Width : 600-1250mm
- BS8300 Min Door Width : 857mm
- Max Door Weight : <110kg
- Power Adjustment : By spring
- Hold Open : Yes
- Dimensions Including Cover (WxHxD) : 254x68x43mm
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2 kg |
|---|---|
| Colour | |
| System Type | |
| Device Type | |
| Mounting | Door |
