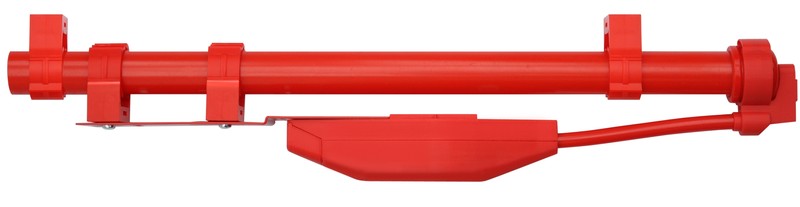

Scorpion ASD Head Unit
Summary
The Scorpion ASD Head Unit Kit offers a cutting-edge solution for the functional testing of aspirating smoke detection (ASD) systems, especially in challenging environments. This system is designed to facilitate the testing process in areas that are difficult to access, such as high atria, void spaces, and other secure or operationally sensitive locations.
With the Scorpion ASD Head Unit, facilities can maintain rigorous compliance with international fire safety standards while minimizing the operational disruptions typically associated with smoke detector testing. The system’s innovative design ensures that testing can be conducted efficiently and safely, without the need for costly access equipment or third-party services.
Features
- Remote smoke generation for ASD systems
- Compatible with existing and new installations
- Reduces need for specialist access equipment
- Supports compliance with international standards
- Can be retrofitted to existing systems
FAQ
What is the maximum distance a head unit can be wired from the access point / controller?
The Maximum distance the head can be wired from the controller is 100m using 1.0mm CSA Cable
Specifications
Environment
- Scorpion ASD Head Unit : Transport/Storage Temperature -10°C to 70°C, Operating Temperature 0°C to 60°C, Storage Humidity 0-90% RH, Operating Humidity 0-95% RH, Ingress Protection IP20
- Scorpion Control Panel : Transport/Storage Temperature -10°C to 50°C, Operating Temperature 5°C to 45°C, Storage Humidity 0-90% RH, Operating Humidity 0-85% RH, Ingress Protection IP40
- Scorpion Engineer’s Controller : Transport/Storage Temperature -10°C to 50°C, Operating Temperature 5°C to 45°C, Storage Humidity 0-90% RH, Operating Humidity 0-85% RH, Ingress Protection IP20
Weights and Dimensions
- Scorpion ASD Head Unit : <200g, 155mm (L) x 54mm (W) x 34mm (H) (excluding nozzle)
- Scorpion Control Panel : <500g, 150mm (L) x 155mm (W) x 37mm (H)
- Scorpion Engineer’s Controller : <500g, 220mm (L) x 95mm (W) x 40mm (H) (excluding cables)
Power Source and Charge Data
- Battery : Solo Battery Baton (Solo 770) – NiMH rechargeable nominal 7.2v 3.0Ah
- Charging Time : 75 – 90 minutes using Solo-727 charger
Cabling
- Scorpion Circuit Wiring : FP200 1.5 mm², Lapp J-Y(ST) Y 0.5 mm², or equivalent – 3 cores per Head Unit
- Maximum Cable Length : 100 metres per Scorpion Control Panel
- Scorpions Per Control Panel : 8 (max.)
- Scorpion Per Access Point : 1
Downloads
- Brochure (Adobe PDF)
- User Manual (Adobe PDF)
Additional information
| Weight | 0.2 kg |
|---|---|
| Trigger | SCORP 8000 Wall Mounted Controller, SCORP 7000 Portable Controller |
