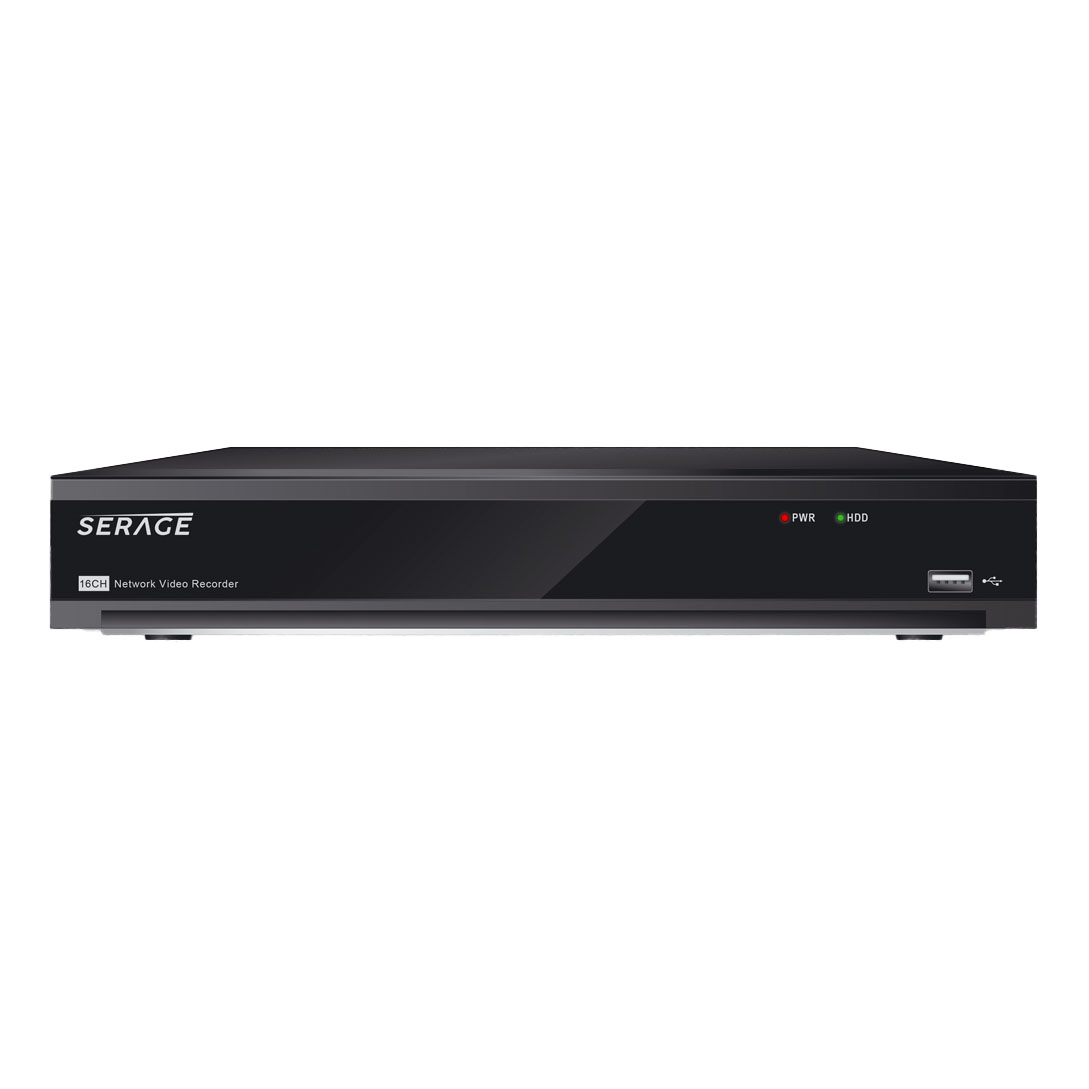

Serage 16 Channel PoE 2xHDD 4K NVR
Summary
The Serage SR9016NP/2 is a sophisticated 16-channel Network Video Recorder (NVR) engineered for high-demand surveillance applications. It features advanced AI capabilities such as license plate detection, crowd density analysis, and face recognition, ensuring comprehensive security coverage. This NVR is NDAA compliant, making it suitable for use by government agencies and enterprises.
With support for high-resolution video and efficient compression formats, the SR9016NP/2 provides excellent video quality and storage efficiency. Its extensive connectivity options and robust design make it an ideal choice for various surveillance environments.
Features
- License plate detection
- Crowd density analysis
- People counting
- Pedestrian & vehicle detection
- App notifications
- Face recognition
Specifications
- Resolution : 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1.0MP (720P)
- Inputs : 16*RJ45, 802.3at/af
- Output : 1 RJ45 100/1000 Base-T
- Compression : Video: H.264/H.264+/H.265/H.265+, Audio: G.711A;G.711U
- Frame Rate : 4K: 60fps, 4MP: 120fps, 2MP: 240fps
- AI Features : Yes
- Playback Function : Fast forward/backward (2x, 4x, 8x,16x), Slow forward (1/2x, 1/4x, 1/8x,1/16x), Max 16CH playback
- VGA/HDMI : (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080), HDMI 2: (1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 3840*2160/EDID)
- USB : USB2.0 * 1 (front), USB3.0 * 1 + USB2.0 * 1 (rear)
- Audio Out : 1
- E-SATA : 1
- HDD : 2 SATA, each HDD up to 8TB
- Alarm Input/Output : 16 in / 1 out
- OSD Language : Multiple languages including English, French, Spanish, etc.
- Dimension (WxDxH) : 380x340x50mm
- Rack Mount : 1U
- Input Voltage/Current : ATX280W
- Power Consumption : 12W (excluding hard disk)
- Operating Temperature : -10°C to +50°C (14°F to 122°F)
- Humidity : Less than 90%RH
