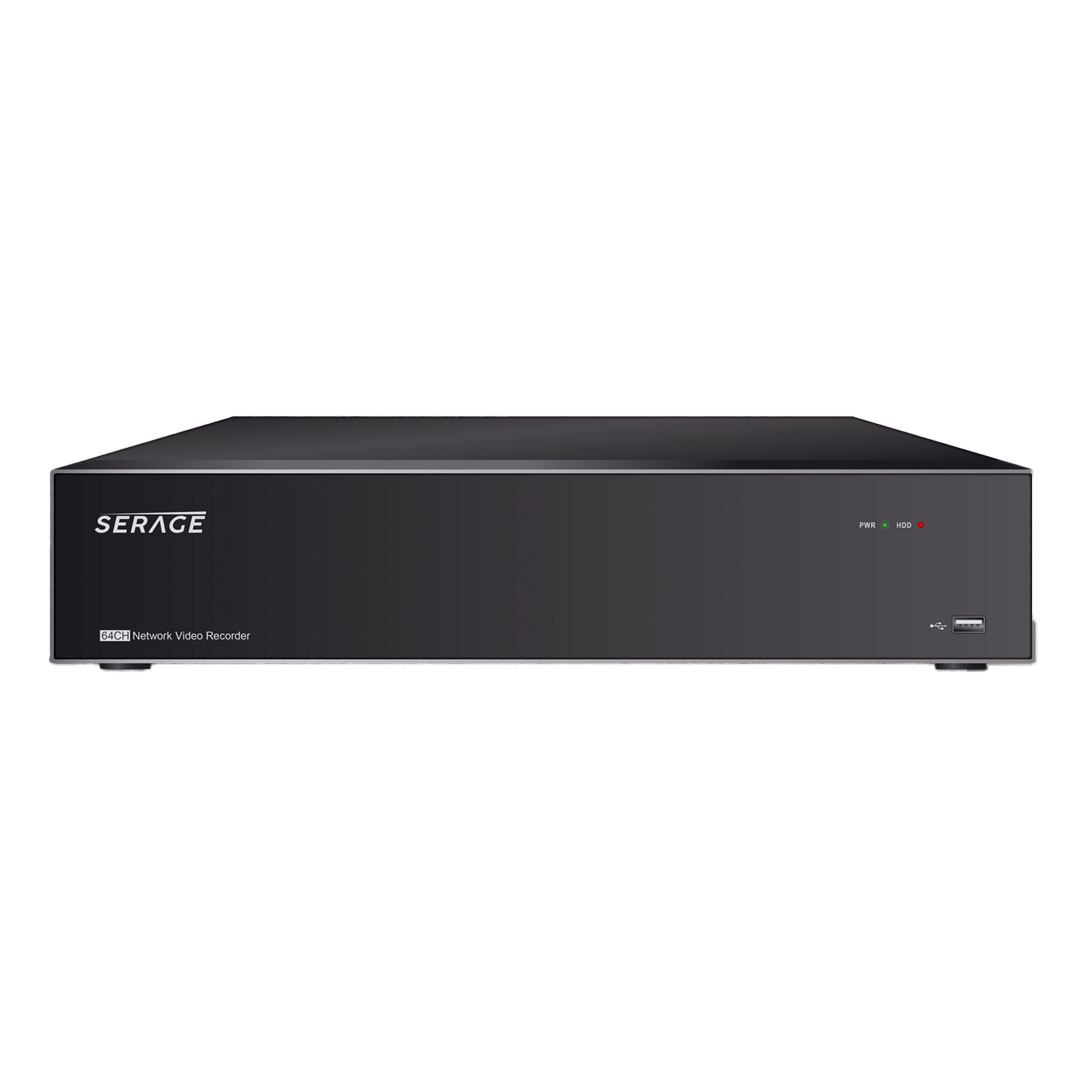

Serage 64 Channel 8xHDD 4K NVR
Summary
The Serage SR9064N is a high-capacity 64-channel Network Video Recorder (NVR) designed for large-scale surveillance operations. It features an array of advanced AI capabilities, including license plate detection, crowd density analysis, and face recognition, providing comprehensive security solutions. This NVR is NDAA compliant, ensuring it meets the security standards required by government agencies and enterprises.
With support for ultra-high-resolution video and efficient compression technologies, the SR9064N offers superior video quality and storage management. Its extensive connectivity options and robust design make it an ideal choice for demanding surveillance environments.
Features
- License plate detection
- Crowd density analysis
- People counting
- Pedestrian & vehicle detection
- App notifications
- Face recognition
- Heat map
- Perimeter intrusion detection
- Line crossing detection
- Queue length detection
- Rare sound detection
Specifications
- Resolution : 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1.0MP (720P)
- Inputs : 640 Mbps
- Output : 640 Mbps
- SOC : RK3588
- Flash : NAND128MB
- DDR : LPDDR4 2666 2*16G
- Compression : Video: H.264/H.265/H.264+/H.265+, Audio: G.711a
- Frame Rate : 4K: 240fps, 4MP: 480fps, 2MP: 960fps
- AI Features : Yes
- Playback Function : Fast forward/backward (2x, 4x, 8x,16x), Slow forward (1/2x, 1/4x, 1/8x,1/16x)
- VGA/HDMI : 4 HDMI (up to 4K), 1 VGA
- Ethernet : 2 RJ45 1000 Base-T
- USB : USB2.0*1 (front), USB3.0*2 (rear)
- Audio Out : 1
- E-SATA : 1
- HDD : 8 SATA HDD, up to 12TB each
- RAID : 0, 1, 3, 5, 6, 10, JBOD, CLONE
- Alarm Input/Output : 16 in / 4 out
- OSD Language : Multiple languages including English, French, Spanish, etc.
- Dimension (WxDxH) : 440x460x89mm
- Rack Mount : Yes
- Input Voltage/Current : ATX 250W
- Power Consumption : 8W (excluding hard disk)
- Operating Temperature : -10°C to +50°C (14°F to 122°F)
- Humidity : Less than 90%RH
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2.50 kg |
|---|---|
| Device Type | |
| Series | |
| Channels | |
| Codec | |
| Max HDD Capacity | |
| Maximum Record Resolution | |
| Monitor Outputs | |
| PoE Ports | |
| Alarm In/Out | |
| Audio In/Out |
