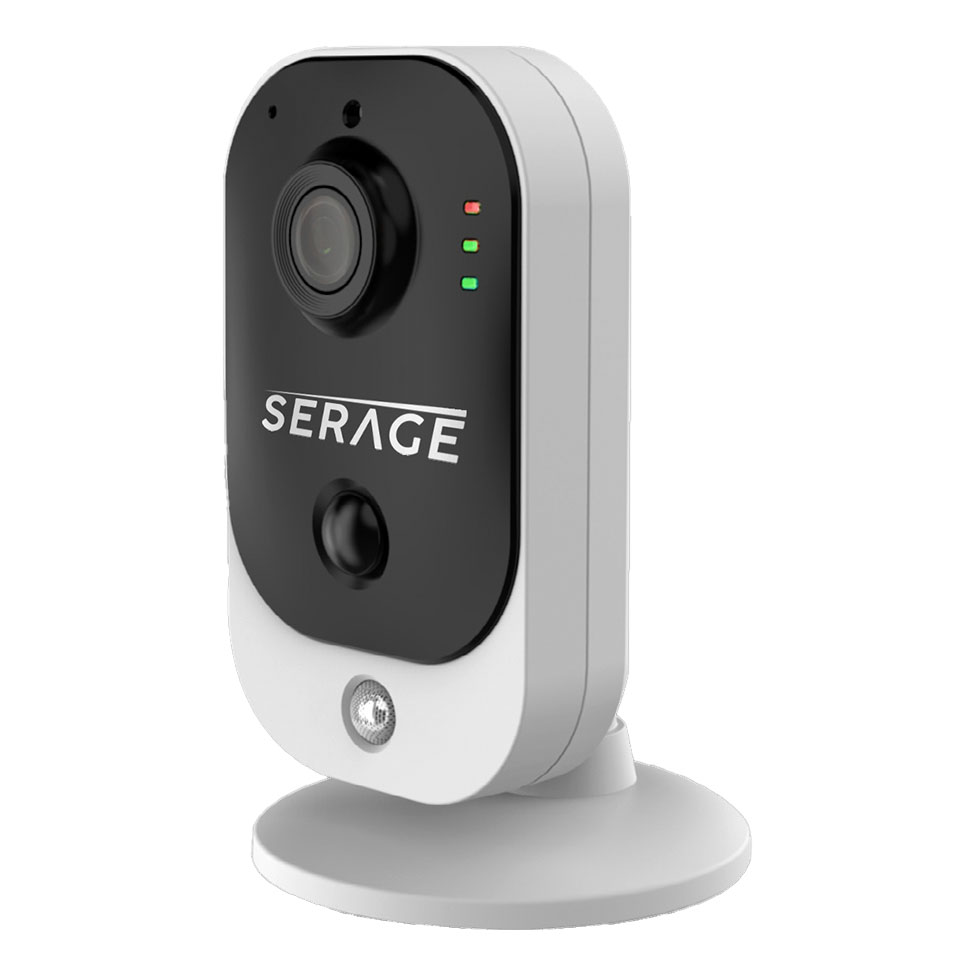

Serage IP 2MP 2.8mm Night Light Qube Camera
Summary
The SERAGE SRCN2F is a state-of-the-art 2MP cube camera designed for both home and business use. It offers exceptional internal detection and deterrent capabilities, ensuring the safety and security of your premises. With its advanced features, the SRCN2F provides peace of mind by actively monitoring and responding to any detected motion.
This camera is equipped with a loud siren and flashing lights that activate upon motion detection, and it sends immediate notifications to your smartphone. The accompanying app allows you to listen in and communicate with potential intruders, enhancing your security measures.
Features
- 2MP progressive CMOS sensor
- Effective pixels: 1920(H) x 1080(V)
- Minimum illumination: Color 0.006 lux, B/W 0 lux with IR
- IR distance up to 10m
- Focal length: 2.8mm
- Wide dynamic range
- 3D noise reduction
- Built-in mic and speaker
- Micro SD card support up to 256GB
- Wi-Fi and Ethernet connectivity
Specifications
- Image Sensor : 1/2.8″ 2Megapixel progressive CMOS
- Effective Pixels : 1920(H) x 1080(V)
- Minimum Illumination : Color 0.006 lux @ F1.6 (AGC ON); B/W 0 lux @ IR ON
- IR Distance : Up to 10m
- IR On/Off Control : Auto/Disable/Enable
- IR LED : 12
- Focal Length : 2.8mm
- Max. Aperture : F No. 2.0±10%
- Angle of View : H: 92.7° V: 48.5° D: 115.2°
- Focus Control : Fixed
- Close Focus Distance : 0.2m
- Compression : H.264/H.265
- Streaming Capability : Triple Streams
- Resolution : Mainstream: 1080P/1.3M/720P; Substream: 720P/VGA/QVGA; Mobilestream: QVGA
- Frame Rate : 50Hz: 25fps; 60Hz: 30fps
- Bit Rate : H264/H265: 8K – 8Mbps
- Day/Night : Auto(ICR)/Color/B/W
- Wide Dynamic Range : WDR
- BLC Mode : BLC
- White Balance : Auto/Manual
- Noise Reduction : 3D DNR
- Motion Detection : Support
- Smart IR : On/Off
- Mirror : On/Off
- Audio Interface : G.711A/U
- Ethernet : RJ-45 (10/100Base)
- Wi-Fi : 2.4GHz, 10m
- Protocol : TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, HTTPS
- Streaming Method : Unicast/Multicast
- Max. User Access : 7 Users
- Edge Storage : Micro SD Card (up to 256GB)
- Web Viewer : Yes
- Smart Phone : iOS, Android
- Alarm : 1/1, PIR
- Power Supply : DC12V/POE
- Power Consumption : MAX 4.5W
- Operating Conditions : -10°C – +45°C (14°F – +113°F) / Less than 95% RH
- Storage Conditions : -10°C – +45°C (14°F – +113°F) / Less than 95% RH
- Dimensions : 63 x 120 x 33mm
