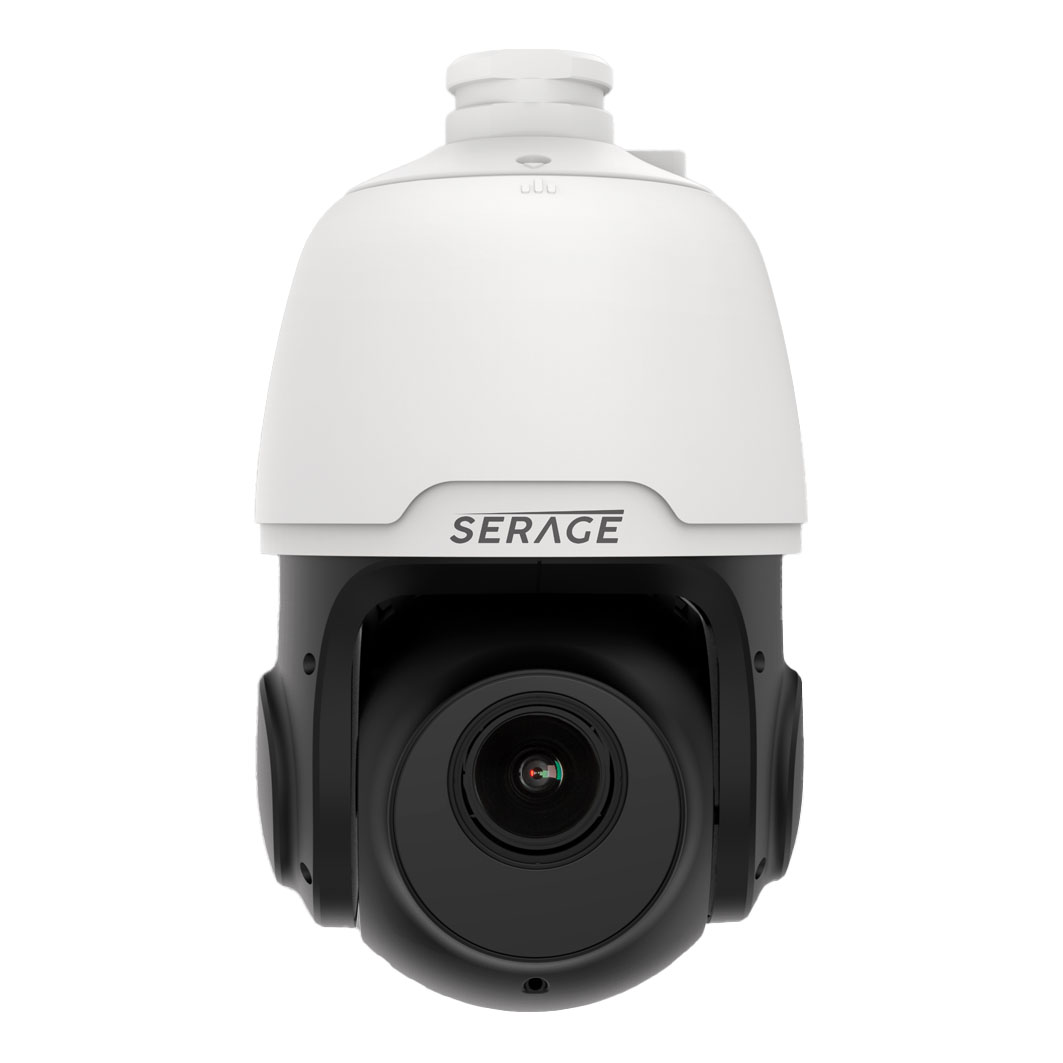

Serage IP 2MP 25xZoom Auto Tracking Night Light AI Speed Dome Camera
Summary
The Serage SRSP2M25 is a 2MP Speed Dome PTZ camera, offering a great solution for auto tracking individuals and vehicles where 360-degree coverage is needed. It features pan, tilt, and zoom capabilities for around 50 meters with colour under low light at night and up to 100m infrared range in complete darkness. This makes it suitable for car parks, factories, and any large space applications where comprehensive monitoring and close-up views are required.
Features
- 1/2.8″ Progressive Scan CMOS image sensor
- Max resolution of 1920×1080
- 25x optical zoom
- IR distance up to 100m
- Pan speed configurable from 0.6° to 80°/s
- Supports H.265+/H.265/H.264+/H.264 compression
- Built-in memory card slot, up to 256 GB
- IP66 protection rating
Specifications
- Image Sensor : 1/2.8″ Progressive Scan CMOS
- Max. Resolution : 1920×1080
- Min. Illumination : Color: 0.002 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Speed : 1/5 s to 1/20000 s
- Day & Night : IR cut filter
- Zoom : 25x optical
- Focal Length : 5.0 mm to 125 mm
- FOV : Horizontal: 56.9° to 2.9°, Vertical: 32.2° to 1.6°, Diagonal: 65.2° to 3.3°
- Aperture : Max. F1.5
- Supplement Light Range : IR Distance up to 100 m
- Movement Range (Pan) : 360°
- Movement Range (Tilt) : -10° to 90° (auto flip)
- Pan Speed : Configurable from 0.6° to 80°/s; preset speed: 120°/s
- Tilt Speed : Configurable from 0.6° to 80°/s; preset speed: 100°/s
- Presets : 255
- Video Compression : Main stream: H.265+/H.265/H.264+/H.264
- Audio Compression : G.711a/G.711u
- Protocols : IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DONS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE
- Power : DC 12V/POE+, max. 22 W
- Operating Condition : -30°C to 60°C, Humidity 90% or less (non-condensing)
- Material : Metal
- Dimension : Ø160 mm x 270 mm (Ø6.3″ x 10.6″)
- Protection : IP66
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2.50 kg |
|---|---|
