Serage IP 8MP 4xZoom 2.8-12mm 2-Way Audio AI Mini Speed Dome Camera
Summary

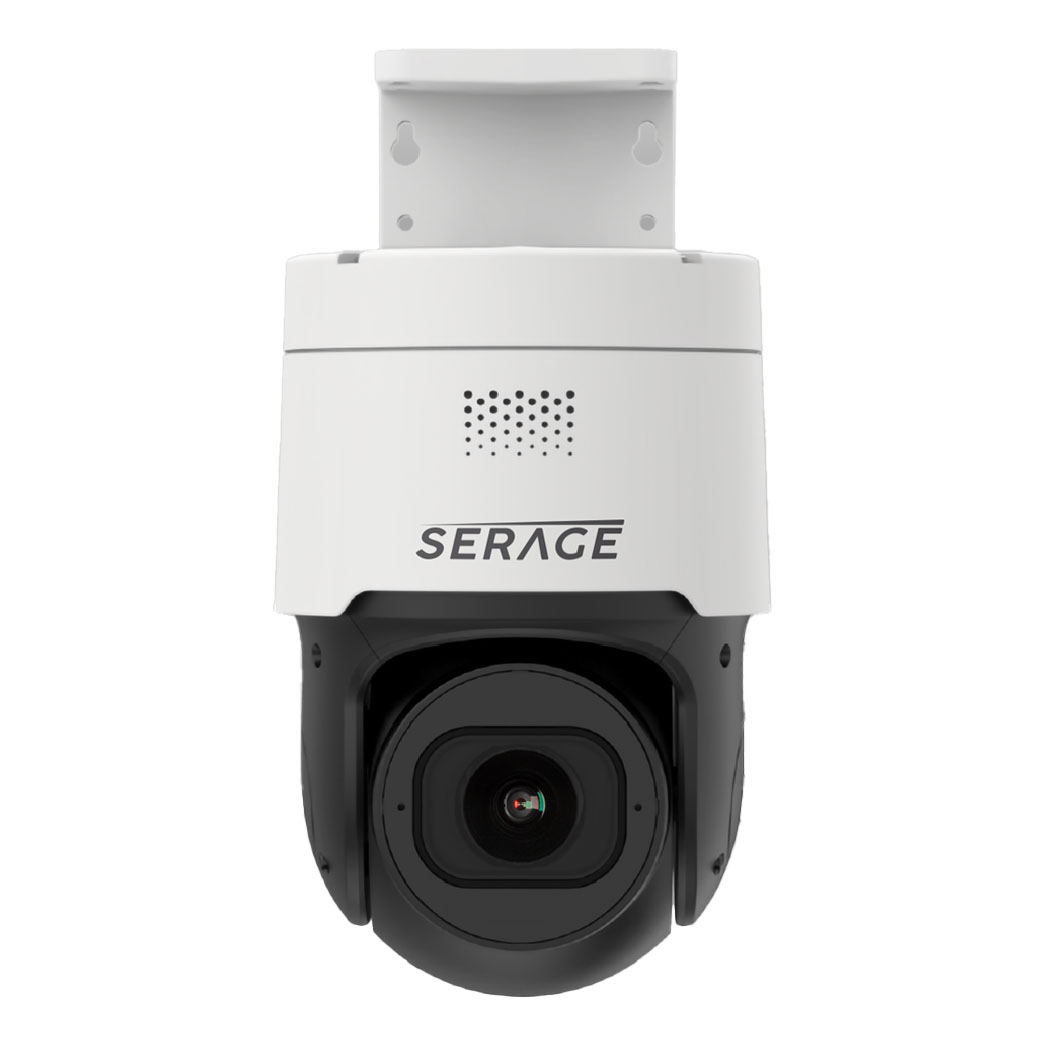

The Serage SRSPD8M is a high-performance speed dome PTZ camera designed for versatile surveillance applications. It features advanced imaging capabilities and intelligent functions, making it ideal for monitoring large areas such as parking lots, shopping centres, and public spaces. With its robust design and comprehensive feature set, this camera ensures reliable and effective security coverage.
Features
- 1/2.7″ progressive scan CMOS sensor
- Max resolution: 3840×2160
- Minimum illumination: Color 0.009 Lux @ F1.6, B/W 0 Lux with IR
- Shutter speed: 1/5 s to 1/20000 s
- Day & night functionality with IR cut filter
- Focal length: 2.8 mm to 12 mm
- Field of view: Horizontal 113° to 31.4°, Vertical 58.4° to 17.6°, Diagonal 138.6° to 36°
- Aperture: Max F1.6
- Auto and manual focus
- IR distance: up to 30m
- Pan range: 355°, Tilt range: 0° to 90°
- Configurable pan and tilt speed
- 255 presets with 3D positioning
- Video compression: H.265+/H.265/H.264+/H.264
- Audio compression: G.711a/G.711u
- Supports multiple protocols including IPv4/IPv6, HTTP, HTTPS, FTP, and more
- Onvif compliant (Profile S, G, T)
- Simultaneous live view up to 15 channels
- Built-in microphone and speaker
- Deep learning functions: Face recognition, human & vehicle detection, and more
- Operating temperature: -30°C to 60°C
- Ingress protection: IP66
Specifications
- Image Sensor : 1/2.7″ Progressive Scan CMOS
- Max. Resolution : 3840×2160
- Min. Illumination : Color 0.009 Lux @ F1.6, B/W 0 Lux with IR
- Shutter Speed : 1/5 s to 1/20000 s
- Slow Shutter : Yes
- Day & Night : IR cut filter
- Zoom : 4x optical
- Focal Length : 2.8 mm to 12 mm
- FOV : Horizontal 113° to 31.4°, Vertical 58.4° to 17.6°, Diagonal 138.6° to 36°
- Aperture : Max F1.6
- Focus : Auto, manual
- Supplement Light Range : Up to 30 m
- Supplement Light Type : IR
- Movement Range (Pan) : 355°
- Movement Range (Tilt) : 0° to 90°
- Pan Speed : Configurable from 0.6° to 45°/s
- Tilt Speed : Configurable from 0.6° to 38°/s
- Presets : 255
- 3D Positioning : Yes
- Main Stream : H.265+/H.265/H.264+/H.264
- Sub-Stream : H.265+/H.265/H.264+/H.264/MJPEG
- Third Stream : H.265+/H.265/H.264+/H.264
- Video Bit Rate : 8 kbps to 16384 kbps
- Audio Compression : G.711a/G.711u
- Protocols : IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DONS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE
- API : Onvif (Profile S, G, T), Http API
- Simultaneous User/Host : 5 Users
- Security : Password protection, HTTPS encryption, IP address filter
- Client : VMS
- Web Browser : IE11, Chrome 57+, Firefox 52+, Safari 11+
- Day/Night Switch : Day, Night, Auto, Schedule
- Image Enhancement : BLC, HLC, 3D DNR
- Wide Dynamic Range (WDR) : DWDR
- Image Settings : Saturation, brightness, contrast, sharpness, hue, and white balance adjustable
- Privacy : 4 privacy masks
- Ethernet Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage : Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Alarm : Built-in red & blue flashing lights
- Audio : 1 built-in MIC, 1 built-in speaker
- Basic Event : Motion detection
- Deep Learning Function : Face recognition, human & vehicle detection, perimeter intrusion detection, and more
- Power : DC 12V/POE, max. 13 W
- Operating Condition : -30°C to 60°C, Humidity 90% or less (non-condensing)
- Material : Plastic
- Dimension : Ø166.75 mm x 238 mm (Ø6.56″ x 9.37″)
- Weight : Approx. 0.92 kg (2 lb.)
- Protection : IP66
Downloads
- Datasheet (Adobe PDF)
