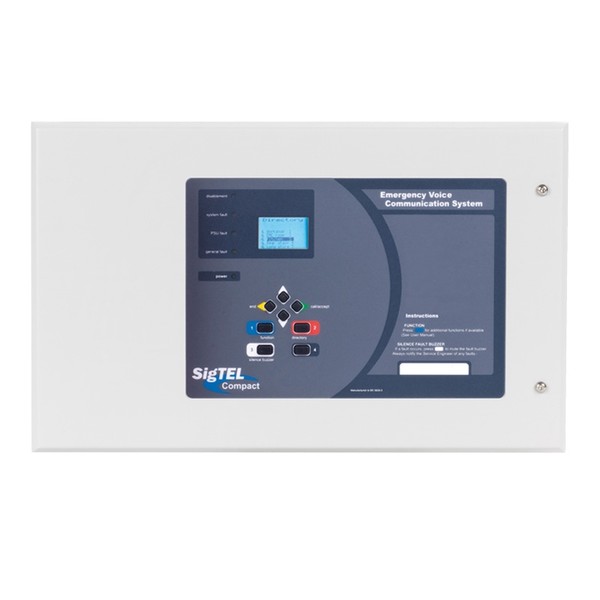

SigTEL 8 Line Master Controller (No Handset)
SigTEL 8 Line Master Controller (No Handset) - Image 2
C-Tec

SigTEL 8 Line Master Controller (No Handset)

£914.84 (inc VAT: £1,097.81)

Low Stock

SKU: ECU-8NT Category: Brand:

Key features

  • Connects up to 8 outstations
  • Backlit LCD display
  • Auto-learn facility

Downloads

Summary

The SigTEL 8 Line Master Controller, part number ECU-8NT, is an ideal solution for disabled refuge, fire telephone, and stadium marshalling applications. Designed for networked SigTEL systems that do not require multiple control points, this unit does not include a handset. It can connect to up to eight disabled refuge or fire telephone outstations, with improved networking capabilities allowing systems of up to 224 lines with optional desk unit control.

View full overview Show less

Featuring a backlit LCD display and a unique ‘auto-learn’ facility, the ECU-8NT ensures fast system setup. It can be semi-flush mounted using an AFP385 bezel and maintains operation for 24 hours on standby and 3 hours in use with 2 x 12V 7 Ahr batteries. The controller is easily interfaced with NC951 accessible toilet alarms, PDA range hearing loop systems, strobes, CCTV activation relays, and more.

Features

  • Ideal for disabled refuge and fire telephone applications
  • Improved networking capability for up to 224 lines
  • Operation maintained with 2 x 12V 7 Ahr batteries
  • Easily interfaced with various systems

Specifications

  • Approvals/Certifications : Facilitates compliance with BS5839-9
  • Mains Supply : 230V 50/60Hz
  • Mains Rated Current : 500mA
  • Internal Power Supply : 19V-28.5V (27V nominal), Ripple 7V max
  • Total Output Current : 1.5A @ 230Vac
  • Quiescent Current : 100mA plus 1mA per Type A outstation, 3.2mA per Type B
  • Battery : 2 x 12V 7Ah VRLA connected in series
  • Auxiliary Relays : Open collector outputs, Changeover fault relay (30V 1A max)
  • Indicators : 128 x 64 pixel LCD display, Disablement, System fault, PSU fault, General fault, Power on
  • Controls : Silence Buzzer
  • Product Dimensions (mm) : 410 W x 250 H x 80 D (base); 439 W x 274 H x 7 D (lid)
  • Construction & Finish : Metal lid and base, RAL7035 grey texture
  • IP Rating : IP20
  • Weight : 3.1kg (without batteries)
  • Operating Conditions/Temperature : -5ºC to +40ºC, Max relative humidity: 95%

Downloads

Additional information

Weight5 kg
Device Type

Lines
