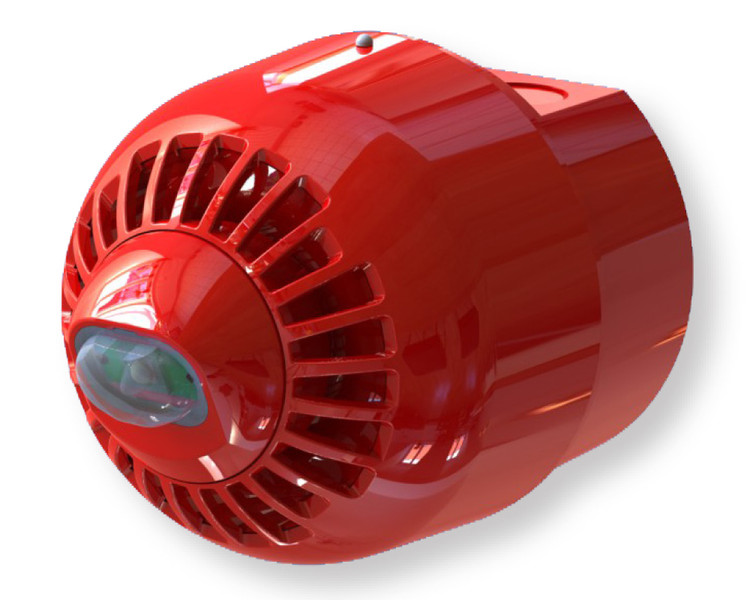

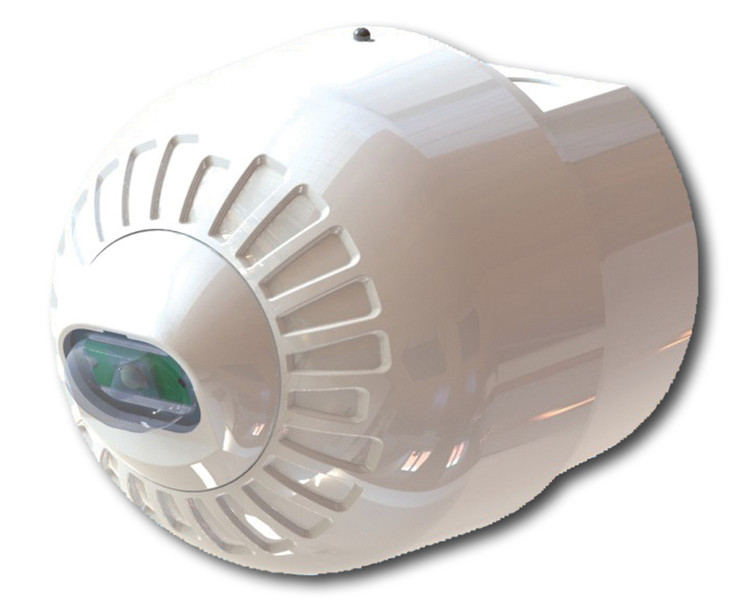

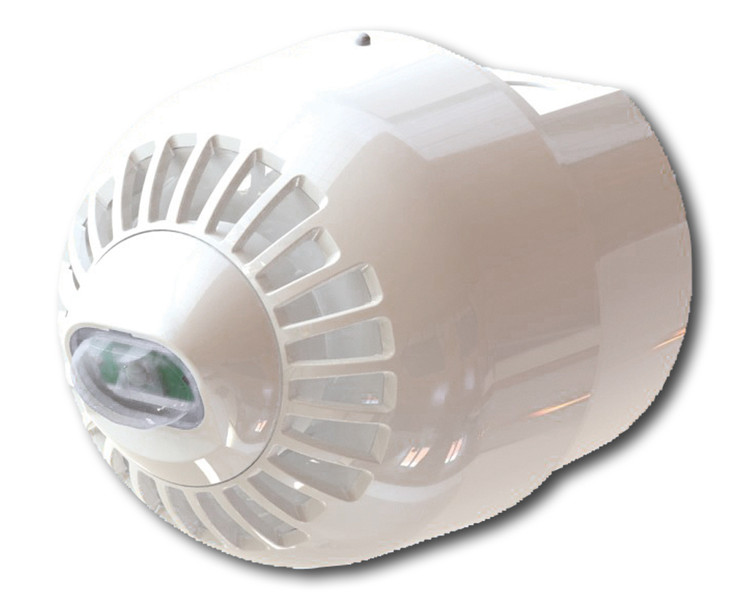

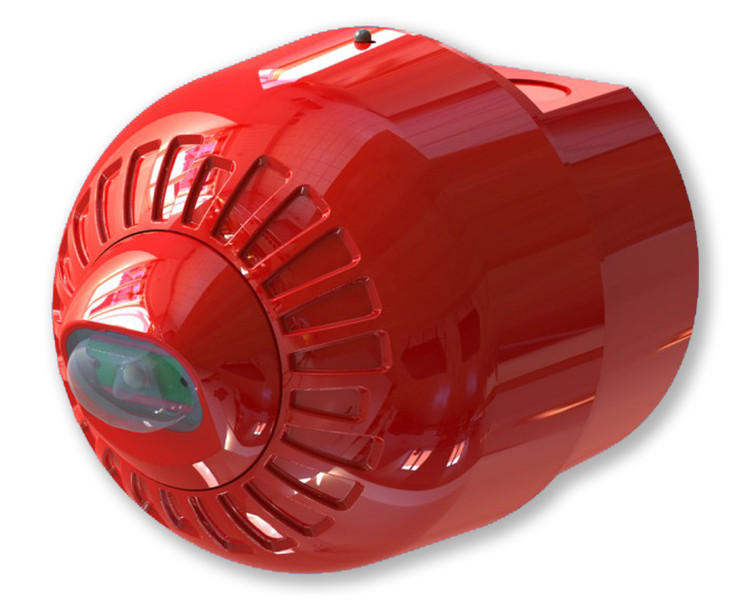

Sonos Pulse Wall Mounted VAD

SKU: 01e15c60b65e-1 Category: Sounders, Flashers & Bells Brand: Klaxon

Summary

Sonos Pulse wall mounted Visual Alarm Devices are available as fire beacons or combined sounder beacons.

Feature	Benefits
Conforms to EN54-23	Exceeds the illumination requirements of EN54-23
Pulse Alert Technology	Patented electronic design maximises system efficiency by minimising power consumption
Up to 11.3m Coverage volume	Reduces the number of devices required most rooms can be protected with a single device
Wire to Base Technology	Installation is quick and simple with mounting and wiring made only to the base the head clicks on to the base during commissioning
Simple Upgrade	Sonos Pulse VADs share the same base mounting and wiring as previous versions making the transition to Pulse versions as simple as possible
Optimum Performance Level	Pulse Alert Technology enables the coverage pattern to be fixed at the optimum performance level
Synchronised Flash	Sonos Pulse VADs protect everyone including people prone to photosensitive epilepsy
No Surge Current	Eliminates power surges during system start up
Weatherproof to IP65	Surpasses the Ingress Protection requirements of EN54-23 making them suitable for a wide variety of environmental conditions

Bases : Available with either Deep or Shallow Base
Body Colour : White or Red
Flash Colour : White or Red
Voltage : 17-60 VDC
Current @ 0.5Hz :
- Beacon Only : 20mA
- Combined Beacon Sounder : 25mA
Current @ 1Hz :
- Beacon Only : 40mA
- Combined Beacon Sounder : 45mA
IP Rating :
- Beacon Only : IP65 (deep base version)
- Combined Beacon Sounder : IP21
Operating Temperature : -25ºC to +70ºC
Construction : Flame Retardant Polycarbonate
Cable Entries: Deep Base : 2 x 20mm cable glands
Weight (kg) :
- Shallow Base : 0.24kg
- Deep Base : 0.29kg
