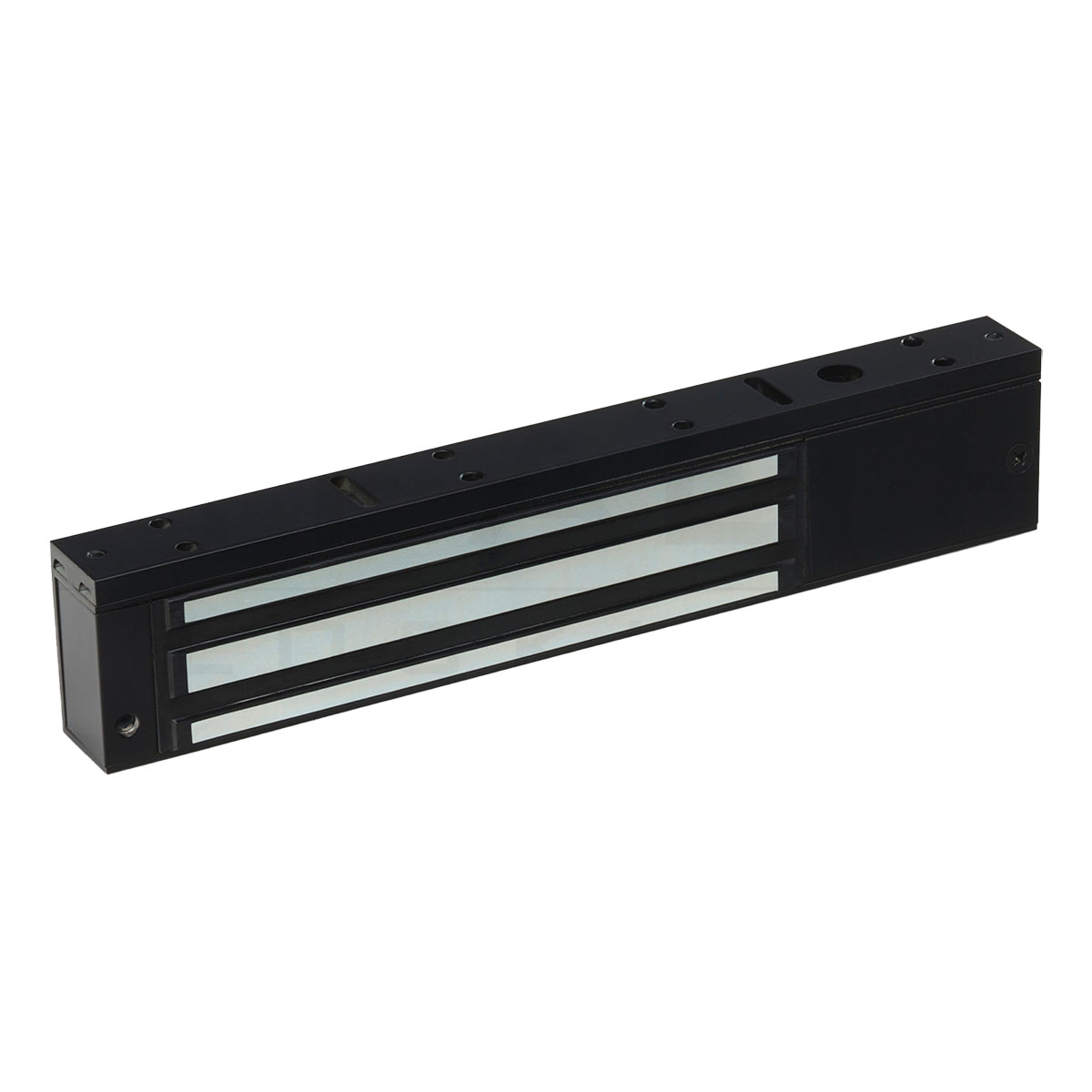

Stealth Black Slimline Single Door Maglock
Summary
The STEALTH01 Slim Unmonitored Maglock is a compact and efficient solution for securing indoor environments. Designed with a sleek profile, it is ideal for applications where a holding force of 275kg is sufficient. This magnetic lock combines functionality with a stealth black finish, making it a discreet yet powerful security option.
Engineered for reliability, the STEALTH01 features fail-safe operation, ensuring that the lock releases in the event of a power failure. It is equipped with advanced protections against spikes, surges, and residual magnetism, enhancing its durability and performance. With dual voltage capability, this maglock offers flexibility in installation and operation.
Features
- MOV provides spike and surge protection
- Fail-safe operation (power to lock)
- Anti-residual magnetism protection
- Top-plate, armature-plate and fixings included
- Dual voltage 12Vdc or 24Vdc (selectable)
- Surface mount
- Stealth black finish
Specifications
- Holding Force : Up to 275kg (600lb)
- Current Draw : 500mA @ 12Vdc / 250mA @ 24Vdc
- Voltage Tolerance : +/- 15%
- Operating Temp : -10°C to +55°C; Humidity: 0-95% non-condensating
- Mag Dimension : 250mm X 48 X 26
- Weight : 2kg approx.
- Fire Rated : Yes
Downloads
Datasheet
- STEALTH01 – Unmonitored (Adobe PDF)
- STEALTH01DS – Unmonitored/Door Status (Adobe PDF)
Additional information
| Monitored | No, Yes |
|---|---|
| Colour | |
| Device Type | |
| Door Status | No, Yes |
