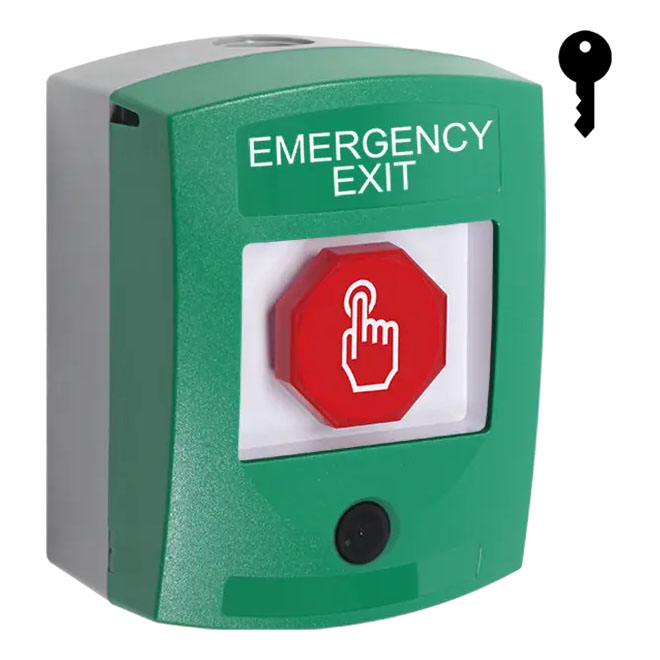

STI G3 Emergency Exit Push Button with Camera
Summary
The STI G3 Multipurpose Push Button with integrated camera is a versatile emergency signaling device designed specifically for exit applications. This innovative green-colored unit combines a robust Key-to-Reset push button with an advanced IP camera system, providing both reliable emergency activation and visual identification capabilities.
Featuring a recessed button design within a durable polycarbonate housing, this device helps prevent accidental activation while ensuring reliable performance in challenging indoor environments. The integrated 5MP HD camera captures video of individuals interacting with the button, as well as their movements before and after activation, making it ideal for security-conscious applications where user identification is crucial.
The unit’s versatile mounting system accommodates North American single-gang, double-gang, four-square electrical boxes, and European electrical boxes, allowing seamless integration into existing setups without complex modifications. With its three-year guarantee against polycarbonate breakage and comprehensive customization options, this emergency exit button delivers outstanding long-term performance.
Features
- 5MP HD IP camera with 180° diagonal field of view for comprehensive coverage
- H264/H265/H265+ video compression compatibility
- ONVIF compliant for seamless integration with security systems
- Key-to-Reset operation requiring manual reset after activation
- Recessed button design within polycarbonate housing prevents false activation
- DPDT (2 Form C) dry contact switch rated 30 VAC/VDC at 5A
- Camera relay output 24 VAC/DC, 2A with included wire harness
- Power options: 12 VDC 1.2A max or PoE (802.3af, 36-57V) 0.2A max
- Versatile mounting plate fits multiple electrical box types
- Indoor rated for temperatures -10 to 49°C (14 to 120°F)
- Durable polycarbonate construction with sleek low-profile design
- Emergency Exit labeling in English
- Green color housing for clear identification
- UL/cUL Listed No. S7255 and CE approved
- Three year guarantee against polycarbonate breakage
FAQ
What is the difference between Key-to-Reset and other operating modes?
Key-to-Reset operation means the button remains in the activated position after being pressed and requires a key to manually reset it. This differs from Momentary operation (returns automatically) and Turn-to-Reset (requires twisting to reset). The G3 can be reconfigured between these modes if needed.
Can the camera function in low light conditions?
Yes, the integrated IP camera is designed for both daylight and low-light use, helping to identify who activated the station even in challenging lighting conditions.
What video formats does the camera support?
The camera supports H264, H265, and H265+ video compression formats and is ONVIF compliant for compatibility with most security systems.
Is the unit suitable for outdoor installation?
No, this model is rated for indoor use only with an operating temperature range of -10 to 49°C (14 to 120°F).
Can I change the button text after installation?
The button cap would need to be replaced to change the text. This unit comes with “EMERGENCY EXIT” labeling in English, but other text options and custom text are available when ordering.
What electrical boxes are compatible with this unit?
The versatile mounting plate fits North American single-gang, double-gang, four-square electrical boxes, and European electrical boxes.
Specifications
- Model Number : G3C102EX-EN
- Dimensions : 137mm H x 104mm W x 37mm D
- Operating Mode : Key-to-Reset
- Housing Color : Green
- Button Text : Emergency Exit (English)
- Switch Type : 1 DPDT (2 Form C) dry contact
- Switch Rating : 30 VAC/VDC at 5A
- Camera Resolution : Up to 5MP HD @ 30fps
- Camera Field Of View : 180° diagonal
- Video Compression : H264/H265/H265+
- Camera Protocol : ONVIF compliant
- Power Requirements : 12 VDC, 1.2A max or PoE (802.3af, 36-57V) 0.2A max
- Camera Relay Output : 24 VAC/DC, 2A
- Operating Temperature : -10 to 49°C (14 to 120°F)
- Construction Material : Polycarbonate
- Mounting : Flush or surface mount
- Installation Rating : Indoor use only
- Approvals : UL/cUL Listed No. S7255, CE approved
- Warranty : 3 years polycarbonate, 1 year electromechanical/electronic components
Downloads
- Datasheet (Adobe PDF)
Additional information
| Device Type | |
|---|---|
| Colour | |
| Cover | No, Yes |
