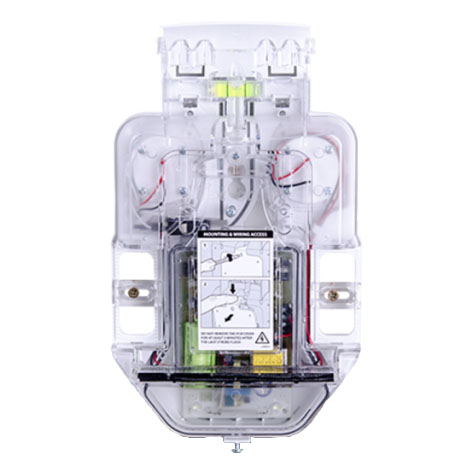

Texecom Odyssey X Grade 3 Sounder Backplate
Summary
The Odyssey X3 is a high-performance external sounder that combines innovative design with advanced technology to enhance security systems. With its modern aesthetics and extensive features, the Odyssey X3 is tailored for both installers and end users, ensuring reliable performance and professional branding opportunities. This sounder is engineered to meet the highest standards of security, making it an ideal choice for various applications.
Features
- Wired, wireless & dummy versions available
- White comfort LEDs for enhanced visibility
- A host of installer-friendly features
- Designed to comply with EN50131-4 standards
Specifications
- Wired Units Supply Voltage : 12-16 VDC (13.7 Nominal)
- Current Drain (Quiescent) : 18mA +40mA (Backlit Version)
- Strobe Current Drain : 100mA
- Sounder Current Drain : 405mA
- Standby Battery Type : NiMh Stack
- Standby Battery Voltage : 7.2VDC (Nominal)
- Standby Battery Capacity : 250mAh
- Flash Tube : 1Ws Xenon
- Comfort LEDs Brightness : 100mcd (Typical)
- Flash Rate (Tamper Secure) : 1Hz Alternating (Typical)
- Wireless Units Supply Voltage : 12V DC
- Wireless Battery Type : 8 x Lithium Type (AA 1.5V)
- High Power LED Strobe : 320lm
- Wireless Frequency : 868.0MHz – 868.6MHz
- Volume (SAB Mode at 13.7 VDC) : 115dB(A)
- Cut-Off Time : 15 Minutes
- Waterproof Coating : Conformal
- Operating Temperature : -25°C to +55°C
- Storage Temperature : -25°C to +60°C
Downloads
- Datasheet (Adobe PDF)
