Texecom Premier Elite Odyssey 3 Backplate
Summary

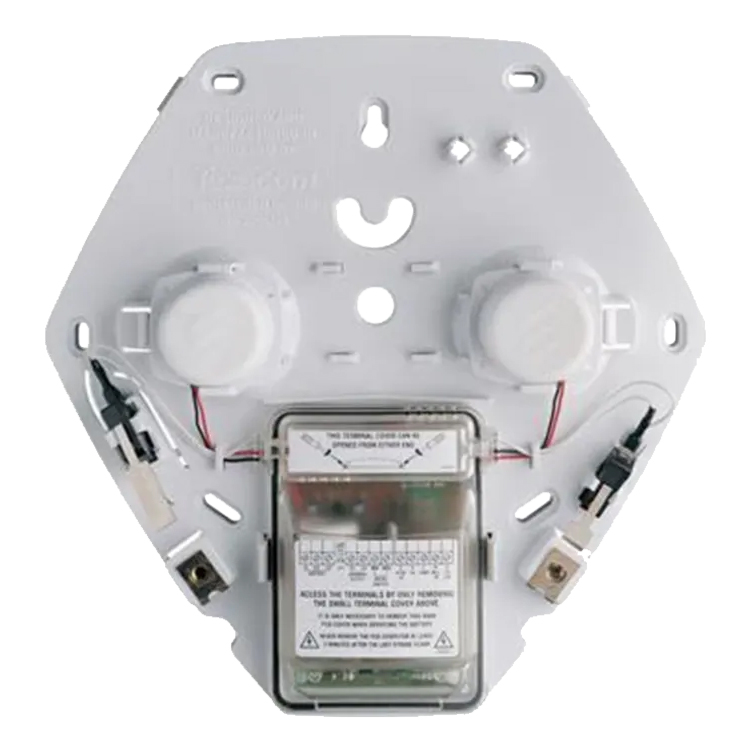

The Texecom FCC-1111 is a grade 3 wired external siren backplate which is used in conjuction with an Odyssey 3 cover.
Features
- 115dB volume
- IP65 environmental protection
- Patented safety engineer hold-off mode
Specifications
- Supply Voltage: 12-16 VDC (13.7 nominal)
- Current Drain (typical at 13.7VDC):
- Strobe: 100mA
- Ody 3/3M: 405mA 190mA 30mA
- Ody 3E: 285mA 160mA 30mA
- Quiescent: 18mA
- Standby Battery Type: NiMh Stack
- Voltage: 7.2VDC (nominal)
- Capacity: 250mAh
- Flash Tube: 1Ws Xenon
- Flash Rate: 1Hz (typical)*
- Discharge Time (<60VDC): <180 seconds
- Comfort LEDs Brightness: 100mcd (typical)
- Flash Rate (tamper secure): 1Hz alternating (typical)
- Material 3mm Polycarbonate
- Tamper Detection:
- Ody 3: Wall, screw & lid
- Ody 3E: Wall & lid
- Dimensions (h x w x d): 315mm x 306mm x 78mm
- Packed Weight:
- Ody 3/3E: 1250g approx
- Ody 3M: 3000g approx
- Volume (SAB mode at 13.7VDC):
- Ody 3/3M: 115dB Peak at 1m (A Weighting, 90˚)
- Ody 3E: 109dB Peak at 1m (A Weighting, 90˚)
- Cut-Off Time: <15 minutes
- Environmental Protection:
- Ody 3/3M: IP65
- Ody 3E: IP44
- Operating Temperature: -25˚C (-13˚F) to +55˚C (+131˚F)
- Storage Temperature: -25˚C (-13˚F) to +60˚C (+140˚F)
- EMC Environment: Residential / Commercial / Industrial
