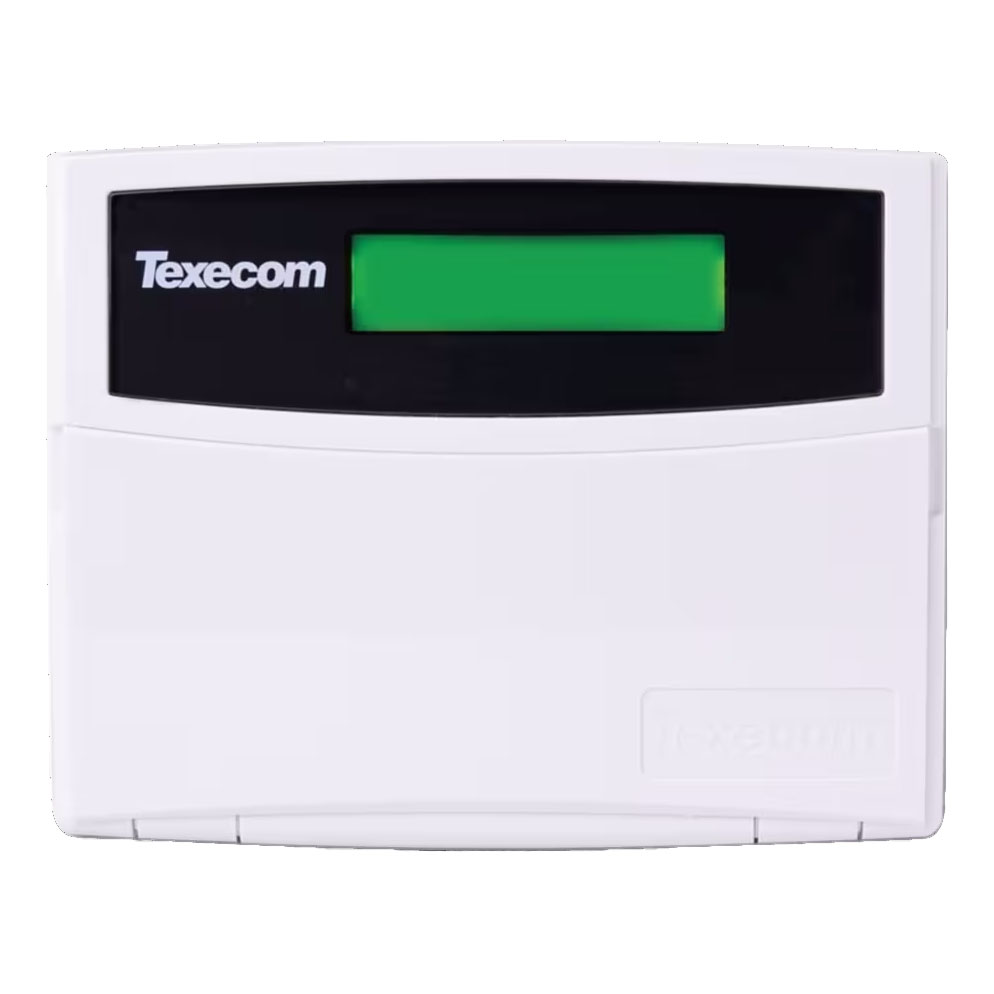

Texecom Speech & Text Dialler
Summary
The Speech Dialler is an innovative device designed to communicate alarm information from an alarm control panel to a standard or mobile telephone. This unit integrates seamlessly with alarm control panels, providing necessary power and battery backup while connecting to a standard telephone line. It functions as an extension to the telephone, ensuring normal operation is unaffected.
Equipped with four trigger inputs, the Speech Dialler can assign each input a voice or text message, allowing for versatile alarm communication. It supports up to eight contacts, each with a name, telephone number, message type, and acknowledgment type. The device is capable of storing and playing back voice messages, and the Speech & Text model extends functionality by sending SMS text messages.
Features
- Connects to alarm control panels
- Four trigger inputs for alarms
- Stores up to eight contacts
- Built-in microphone and speaker
- Supports SMS text messaging
- Remote access and control
- Listen-in and talkback modes
- Memo recording and playback
Specifications
- Supply Voltage : 10 – 14 VDC
- Current Consumption : 35mA (Standby), 100mA (Active)
- Trigger Inputs : 4; +ve applied or +ve removed (5-24VDC)
- Outputs : 2; Open collector switched -ve @ 100mA
- Telecommunications Approval : CTR21
- REN Rating : 1
- Dialling Formats : Pulse or DTMF
- Dimensions : 140mm x 115mm x 30mm
- Packed Weight : 360g (Approximately)
Downloads
- Installation Manual (Adobe PDF)
