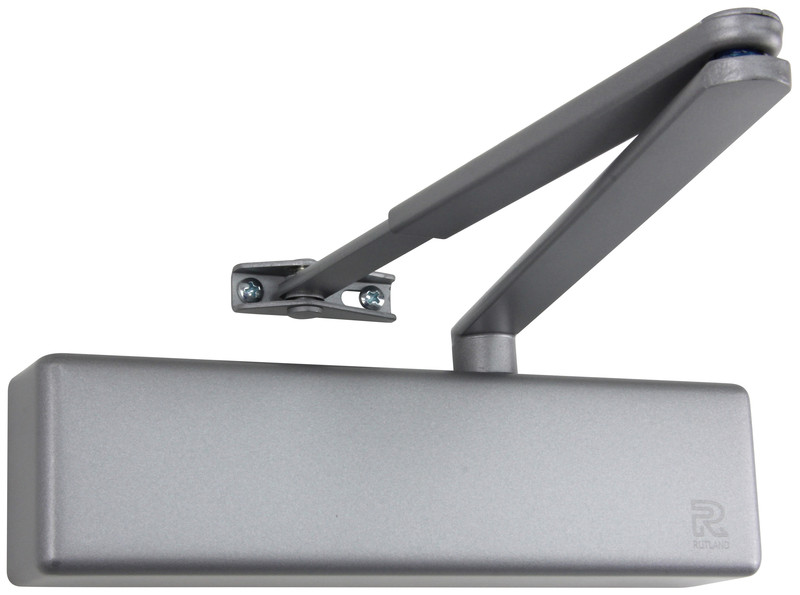

TS.4204 Size 2-4 Contract Door Closer
£28.47
Summary
The TS.4204 Door Closer from Rutland’s Contract Range represents a premium solution for commercial and institutional door control applications. Engineered from exceptional high-quality components, this door closer delivers reliable performance whilst maintaining the aesthetic appeal required in professional environments.
Designed with versatility in mind, the TS.4204 features variable power adjustment from EN2-4, making it suitable for a wide range of door weights up to 80kg and widths up to 1100mm. The unit comes complete with back check and delayed action features as standard, providing enhanced control and user safety.
Available in four premium finishes including Silver, Satin Nickel Plate, Polished Nickel Plate, and Electro Brass, the TS.4204 can complement any architectural specification. All certification and product testing is conducted by UKAS approved third-party test bodies, ensuring compliance with BS EN 1154 performance standards and fire testing up to 120 minutes.
Features
- Engineered from exceptional high quality components
- Variable power adjustment from power size EN2-4
- High-quality finishes available in SE, SNP, PVD, and PNP
- Back check and delayed action features as standard
- UKAS approved third-party certification and testing
- Easy to read instructions saving over 12 minutes fitting time
- Twin locking machine screws for secure installation
- Latching and speed control valves
- Flat bar forearm design
- Adjustable delayed action mechanism
- Anti vibration clips on the cover
- Universal application for push and pull side mounting
- Fire tested for 30, 60 and 120 minute door sets
- CE marked to BS EN 1154 performance standard
- 10 year guarantee
FAQ
What is the maximum door weight and width for the TS.4204?
The TS.4204 can accommodate doors up to 80kg in weight and 1100mm in width, making it suitable for most commercial door applications.
What power sizes are available?
The TS.4204 features variable power adjustment from EN2-4, allowing you to adjust the power to suit different door weights and usage requirements.
Is the TS.4204 suitable for fire doors?
Yes, the TS.4204 has been fire tested to EN 1634 for 30, 60 and 120 minute door sets. Test certificates are available on request. Note that hold-open arm options should not be used on fire doors.
What finishes are available?
The TS.4204 is available in four high-quality finishes: Silver (SE), Satin Nickel Plate (SNP), Polished Nickel Plate (PNP), and Electro Brass (PVD).
What is included as standard with the TS.4204?
The TS.4204 comes complete with back check and delayed action features as standard, along with the closer body, flat bar armset, cover, and PA bracket.
What is the opening angle capability?
The TS.4204 provides a maximum opening angle of 180°, offering full door opening capability when required.
What warranty is provided?
The TS.4204 comes with a comprehensive 10 year guarantee, demonstrating confidence in the product’s durability and performance.
Is the installation difficult?
No, the TS.4204 features easy to read instructions that save over 12 minutes of fitting time compared to standard door closer installations.
Specifications
- Max Door Weight : 80kg
- Max Door Width : 1100mm
- Opening Angle : 180°
- Power Size : EN2-4 (Variable)
- Fire Test Rating : Up to 120 minutes
- Standard Compliance : BS EN 1154
- BS EN 1154 Classification : 4 8 4 2 1 1 3
- Fire Test Standard : BS EN 1634
- Guarantee Period : 10 years
- Available Finishes : Silver (SE), Satin Nickel Plate (SNP), Polished Nickel Plate (PNP), Electro Brass (PVD)
- Application Type : Universal (Push/Pull side mounting)
- Standard Features : Back Check, Delayed Action
- Certification : CE Marked
- Testing Authority : UKAS approved third-party test bodies
- Product Code Silver : TS.4204DABC.SLFB.SESE (12109)
- Product Code Satin Nickel : TS.4204DABC.SLFB.SNPSNP (12110)
- Product Code Polished Nickel : TS.4204DABC.SLFB.PNPPNP (12111)
- Product Code Electro Brass : TS.4204DABC.SLFB.PVDPVD (12112)
- Box Quantity : 8 units
- Cover Length : 252mm
- Cover Width : 45mm
- Cover Height : 68mm
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2 kg |
|---|---|
| Finish | Silver, Satin Nickel, Polished Nickel |
| Device Type | |
| Mounting | Door |
