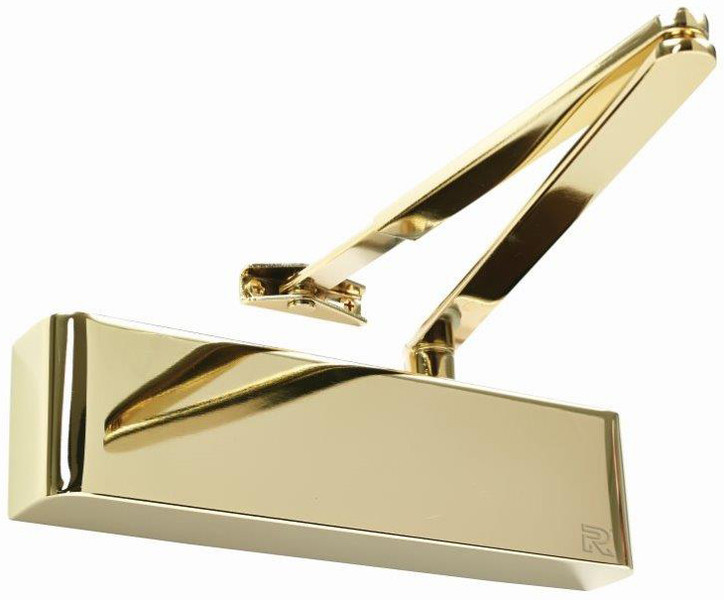

TS.9205 Architectural Door Closer
£52.56
Summary
The TS.9205 Door Closer from Rutland’s Designer Range represents the pinnacle of door closer technology, renowned for its high efficiency, quality, reliability and ease of opening. Engineered to perform at up to 82% efficiency, this premium door closer sets new standards in both performance and aesthetic appeal for commercial and architectural applications.
Specifically designed to assist door sets in meeting the requirements of Approved Document M and BS 8300 recommendations, the TS.9205 provides enhanced accessibility whilst maintaining superior control. The double spring action ensures smooth operation across variable power settings from EN2-5, accommodating doors up to 110kg and 1250mm width.
Available in an extensive range of 15 premium finishes including the new Marine Stainless 316 option, the TS.9205 can complement any architectural specification. With temperature stable hydraulic oil operating between -30°C to +60°C, UL listing, ADA compliance, and an exceptional 35-year guarantee, this door closer delivers uncompromising performance in the most demanding environments.
Features
- Up to 82% efficiency for superior performance
- Double spring action for smooth operation
- Variable power EN 2-5 by spring adjustment
- Assists Document M and BS 8300 compliance
- Temperature stable hydraulic oil (-30°C to +60°C)
- Available with or without cover option
- Twin locking machine screws for secure installation
- Snap fix connection arm set for ease of fitting
- Easy to read instructions saving over 12 minutes fitting time
- 15 premium finish options including Marine Stainless 316
- Universal application for push and pull side mounting
- Fire tested up to 120 minutes (timber) and 240 minutes (metal)
- UL Listed certification
- ADA Compliant for accessibility requirements
- CE marked to BS EN 1154 performance standard
- Adjustable closing speed control
- Adjustable latch speed control
- Adjustable back check feature
- Adjustable delayed action mechanism
- 35 year guarantee
FAQ
What is the maximum door weight and width for the TS.9205?
The TS.9205 can accommodate doors up to 110kg in weight and 1250mm in width across the EN2-5 power range, making it suitable for heavy commercial door applications.
How efficient is the TS.9205 compared to standard door closers?
The TS.9205 operates at up to 82% efficiency, significantly higher than standard door closers. This high efficiency reduces the opening force required, improving accessibility and user experience.
Does the TS.9205 help with accessibility compliance?
Yes, the TS.9205 is specifically engineered to assist door sets in meeting Approved Document M and BS 8300 recommendations. It’s also ADA compliant, with minimum door widths of 835mm (Fig 1) and 728mm (Fig 66).
What finishes are available for the TS.9205?
The TS.9205 is available in 15 premium finishes including Silver, Satin Nickel Plate, Polished Nickel Plate, Electro Brass, Satin Stainless Steel, Polished Stainless, Black, various bronze options, and the new Marine Stainless 316 finish.
Is the TS.9205 suitable for fire doors?
Yes, the TS.9205 has been fire tested to BS EN 1634 for 30, 60 and 120 minutes on timber doorsets, and 240 minutes on metal doorsets. It’s also UL Listed for additional certification.
What temperature range can the TS.9205 operate in?
The TS.9205 features temperature stable hydraulic oil that operates reliably between -30°C to +60°C, making it suitable for both internal and external applications.
What warranty is provided with the TS.9205?
The TS.9205 comes with an exceptional 35-year guarantee, demonstrating the manufacturer’s confidence in the product’s long-term durability and performance.
What mounting configurations are available?
The TS.9205 is available in both Standard Arm (Fig 1) and Parallel Arm (Fig 66) configurations, with universal application for push and pull side mounting to suit different door requirements.
Specifications
- Max Door Weight : EN2-5 up to 110kg
- Max Door Width : EN2-5 up to 1250mm
- Opening Angle : 180°
- Power Size : EN2-5 (Variable by spring)
- Efficiency Rating : Up to 82%
- Fire Test Rating : Up to 120 minutes (timber), 240 minutes (metal)
- Operating Temperature : -30°C to +60°C
- Standard Compliance : BS EN 1154, Document M, BS 8300
- BS EN 1154 Classification Fig 1 : 4 8 5 2 1 1 3
- BS EN 1154 Classification Fig 66 : 4 8 4 2 1 1 3
- Fire Test Standard : BS EN 1634
- Additional Certifications : UL Listed, ADA Compliant
- Guarantee Period : 35 years
- Spring Action : Double spring for smooth operation
- Hydraulic Oil : Temperature stable
- Connection Type : Snap fix connection arm set
- Application Type : Universal (Push/Pull side mounting)
- Cover Options : Available with or without cover
- Min Door Width Fig 1 : 835mm (BS8300)
- Min Door Width Fig 66 : 728mm (BS8300)
- Cover Length : 269mm
- Cover Width : 40mm
- Cover Height : 69mm
- Cover Depth : 55mm
- Available Finishes : 15 options including Silver (SE), Satin Nickel Plate (SNP), Polished Nickel Plate (PNP), Electro Brass (PVD), Satin Stainless Steel (SSS), Polished Stainless (PSS), Black (BK), Antique Brass (AB), Antique Copper (AC), Satin Brass (SB), Light Bronze (LB), Medium Bronze (MB), Dark Bronze (DB), Weathered Bronze (WB), Antique Pewter (AP), Marine Stainless 316
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2 kg |
|---|---|
| Finish | Silver, Satin Nickel, Polished Nickel, Polished Brass, Antique Brass |
| Mounting | Door |
