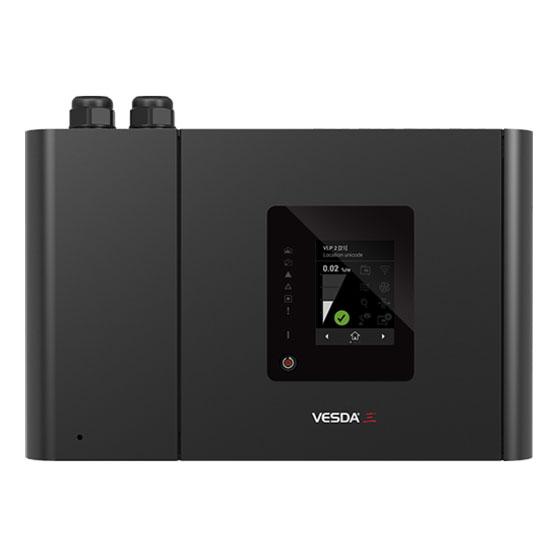

VESDA-E VEP Aspirating Smoke Detector
You may also need
Key features
- Choose one or four sampling pipe inlets
- LED indicators on VEP-A00-1P and VEP-A00-P, 3.5-inch display on VEP-A10-P
- Xtralis Flair detection technology for very early smoke warning
Downloads
Summary
Choose the Xtralis VESDA-E VEP aspirating smoke detector by the number of sampling pipe inlets and the type of front-panel indication. Select Display: No for LED indicators or Display: Yes for the 3.5-inch display.
View full overview Show less
Which VESDA-E VEP model do I need?
| Order code | Pipe inlets | Front panel | Maximum area in datasheet |
|---|---|---|---|
| VEP-A00-1P | 1 | LED indicators | 1,000 m² |
| VEP-A00-P | 4 | LED indicators | 2,000 m² |
| VEP-A10-P | 4 | 3.5-inch display | 2,000 m² |
Actual coverage depends on the sampling pipe design. Check the pipe lengths, airflow and applicable detection class in Xtralis’s VEP datasheet and use ASPIRE to verify the design.
Features
- One and four pipe models for different applications
- Flair detection technology delivers reliable very early warning with minimal nuisance alarms
- Short wavelength laser-based detection with high sensitivity from small particle light scattering
- No drift compensation required with focused light and low backgrounds
- High stability with temperature and time variations
- Multi stage filtration and optical protection with clean air barriers
- Four alarm levels and wide sensitivity range for optimum protection
- Intuitive LCD icon display provides instant status information (VEP-A10-P)
- Flow fault thresholds per port accommodate varying airflow conditions
- Smart on-board filter retains dust count and remaining filter life
- Extensive event log capacity up to 20,000 events for analysis and diagnostics
- AutoLearn™ smoke and flow for reliable and rapid commissioning
- Referencing to accommodate external environmental conditions
- Backward compatible with VLP and VESDAnet systems
- Ethernet connectivity for configuration, secondary monitoring and maintenance
- USB port for PC configuration and firmware upgrade using memory stick
- Two programmable GPIs (1 monitored) for flexible remote control
- Field replaceable sub-assemblies enable faster service and maximum uptime
- Seven programmable relays with latching or non-latching states
- Wide measurement range 0.000 to 32% obs/m
- Comprehensive sensitivity range 0.005 to 20% obs/m
- IP40 rated enclosure for robust installation environments
- Powerful aspirator enables extensive pipe network lengths
- ASPIRE software support for pipe network design and system commissioning
Video
FAQ
What is the difference between the VEP-A00-1P, VEP-A00-P, and VEP-A10-P models?
The VEP-A00-1P is a single pipe model with LED indicators covering up to 1,000 m², while the VEP-A00-P is a four pipe model with LEDs covering up to 2,000 m². The VEP-A10-P is also a four pipe model covering 2,000 m² and has a 3.5-inch display. The area figures are datasheet maxima and depend on the sampling pipe design.
What is Flair detection technology and how does it improve performance?
Flair is the revolutionary detection chamber that forms the core of the VESDA-E VEP, providing higher stability and increased longevity. It uses direct imaging of sampled particles with a CMOS imager combined with multiple photodiodes, enabling better detection performance and significantly fewer nuisance alarms compared to traditional light scattering methods.
Is the VESDA-E VEP suitable for hazardous locations?
Xtralis lists Class I, Division 2 applications and states that approvals vary by model and region. Confirm the approval for the exact detector and installation with Xtralis before specifying it.
How does the VEP series handle connectivity and networking?
The VEP series offers multiple connectivity options including VESDAnet for robust bi-directional communication with up to 200 devices, Ethernet connectivity for corporate networks, and USB ports for direct PC connection and firmware upgrades. The system is backward compatible with existing VESDA installations and VESDAnet networks.
What pipe network lengths can the VEP series support?
The single pipe VEP-A00-1P supports up to 100m linear or 130m branched pipe networks, while the four pipe models (VEP-A00-P and VEP-A10-P) support up to 280m linear or 560m branched pipe networks. The actual length depends on the number of pipes in use, with configurations from 70m to 110m per pipe depending on the setup.
What maintenance features does the VEP series include?
The VEP series includes extensive maintenance features such as field replaceable sub-assemblies for faster service, smart on-board filter monitoring that retains dust count and remaining filter life, extensive event logging up to 20,000 events, and AutoLearn functionality for automatic threshold setting. The system also supports remote diagnostics and monitoring through various connectivity options.
Specifications
- Supply Voltage : 18-30 VDC (24V Nominal)
- Power consumption at 24 V DC varies by model and aspirator setting. Xtralis publishes different figures in different document revisions. For power supply sizing, check the specification for the hardware supplied.
- Dimensions (W H D) : 350 mm x 225 mm x 135 mm (13.8 in x 8.9 in x 5.3 in)
- Weight VEP-A00-1P/A00-P : 4.4 kg (9.7 lbs)
- Weight VEP-A10-P : 4.5 kg (9.9 lbs)
- Operating Temperature Ambient : 0°C to 38°C (32°F to 100°F)
- Operating Temperature Sampled Air : -20°C to 60°C (-4°F to 140°F), subject to the sampled air reaching the detector’s ambient temperature at entry
- Humidity : 5% to 95% RH, non-condensing
- Area Coverage One Pipe : 1,000 m² (10,760 sq. ft)
- Area Coverage Four Pipe : 2,000 m² (21,520 sq. ft)
- Minimum Airflow Per Pipe : 15 l/m
- Pipe Length Linear One Pipe : 100 m (328 ft)
- Pipe Length Linear Four Pipe : 280 m (919 ft)
- Pipe Length Branched One Pipe : 130 m (427 ft)
- Pipe Length Branched Four Pipe : 560 m (1,837 ft)
- Number Of Holes One Pipe (A/B/C) : 30/40/45
- Number Of Holes Four Pipe (A/B/C) : 40/80/100
- Pipe Inlet External Diameter : 25 mm or 1.05 in (3/4 in IPS)
- Pipe Exhaust External Diameter : 25 mm or 1.05 in (3/4 in IPS) via adaptor
- Relays : 7 programmable relays (latching or non-latching), 2A @ 30 VDC
- IP Rating : IP40
- Cable Access : 4 x 26 mm (1.02 in) cable entries
- Cable Termination : Screw Terminal blocks 0.2–2.5 sq mm (24–14 AWG)
- Measurement Range : 0.000 to 32% obs/m (0.0000 to 11.09% obs/ft)
- Sensitivity Range : 0.005 to 20% obs/m (0.0015% to 6.575% obs/ft)
- Alert Threshold Range : 0.005% to 2.0% obs/m (0.0015% to 0.614% obs/ft)
- Action Threshold Range : 0.005% to 2.0% obs/m (0.0015% to 0.614% obs/ft)
- Fire 1 Threshold Range : 0.010% to 2.0% obs/m (0.0030% to 0.614% obs/ft)
- Fire 2 Threshold Range : 0.020% to 20.0% obs/m (0.0061% to 6.575% obs/ft)
- Event Log Capacity : Up to 20,000 events with time and date stamp
- AutoLearn : Automatic alarm thresholds and flow fault thresholds by environmental monitoring
Downloads
- Xtralis VESDA-E VEP datasheet (Adobe PDF)
