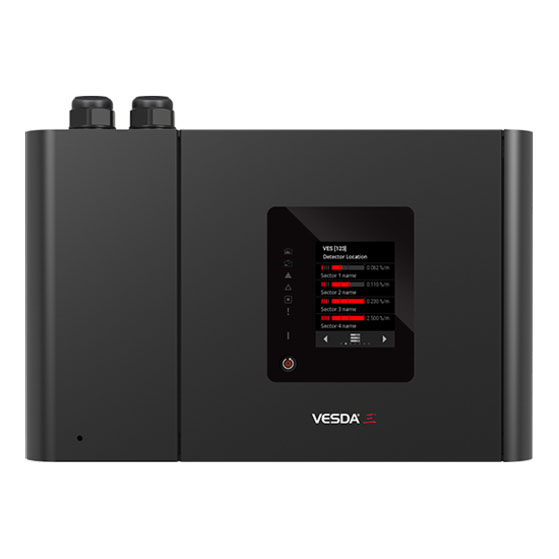

VESDA-E VES Aspirating Smoke Detector
Summary
The VESDA-E VES builds upon the flagship VESDA-E VEP aspirating smoke detector technology, adding revolutionary sector addressability capabilities that enable a single fire zone to be divided into four separate sectors. This advanced configuration incorporates a valve mechanism in the inlet manifold and sophisticated software to control airflow from the four sectors, making it ideal for applications such as distinguishing between separate aisles within a data room or monitoring different areas within a single protected space.
Available in two models – the VES-A00-P with LED indicators and the VES-A10-P featuring a 3.5″ LCD display – the VES series enables users to locate the source of smoke by identifying the first sector to reach the Alert level. The detector continues to sample from all sectors to monitor fire growth and reports separate alarm levels for each sector, providing unparalleled situational awareness for faster incident response.
Built on the revolutionary Flair detection technology with years of application experience, VES detectors achieve consistent performance over their lifetime through absolute calibration. The system provides four individually configurable alarm levels (Alert, Action, Fire 1 and Fire 2) for each sector, allowing optimised protection across the widest range of applications while maintaining the superior detection performance and minimal nuisance alarms that define the VESDA-E platform.
Features
- Sector addressability for up to four sectors with valve-controlled airflow
- Adaptive scan threshold with automatic transition to sector monitoring
- Fast scan technology quickly identifies smoke-carrying sectors
- First Alarm Sector (FAS) designation for immediate source identification
- Four individually configurable alarm levels per sector (Alert, Action, Fire 1, Fire 2)
- Flair detection technology delivers reliable very early warning with minimal nuisance alarms
- Short wavelength laser-based detection with high sensitivity from small particle light scattering
- No drift compensation required with focused light and low backgrounds
- High stability with temperature and time variations
- Multi stage filtration and optical protection with clean air barriers
- Intuitive LCD display with sector status page (VES-A10-P) or LED indicators (VES-A00-P)
- User-configurable sector names for easy identification
- Flow fault thresholds per port accommodate varying airflow conditions
- Smart on-board filter retains dust count and remaining filter life
- Extensive event log capacity up to 20,000 events for analysis and diagnostics
- AutoLearn™ smoke and flow for reliable and rapid commissioning
- Backward compatible with VLS and VESDAnet systems
- Ethernet connectivity for configuration, secondary monitoring and maintenance
- USB port for PC configuration and firmware upgrade using memory stick
- Two programmable GPIs (1 monitored) for flexible remote control
- Field replaceable sub-assemblies enable faster service and maximum uptime
- Twelve programmable relays with latching or non-latching states
- Wide measurement range 0.000 to 32% obs/m
- Comprehensive sensitivity range 0.005 to 20% obs/m
- IP40 rated enclosure for robust installation environments
- Powerful aspirator enables 560m total pipe length capability
- ASPIRE software support for pipe network design and system commissioning
FAQ
What is sector addressability and how does it work in the VES?
Sector addressability allows the VES to divide a single fire zone into four separate sectors using a valve mechanism in the inlet manifold. The system draws air from all sectors, but when smoke levels reach the Adaptive Scan Threshold, it quickly scans each sector to identify which one contains smoke. The first sector to reach Alert level becomes the First Alarm Sector (FAS), enabling precise source location for faster response.
What is the difference between VES-A00-P and VES-A10-P models?
Both models offer the same sector addressability and detection capabilities covering up to 2,000 m². The VES-A00-P features LED indicators for status display, while the VES-A10-P includes a 3.5″ LCD display that shows detailed sector status pages with smoke level bar graphs, alarm threshold indicators, and user-configurable sector names for enhanced visualization and control.
How does the adaptive scan threshold feature work?
The adaptive scan threshold automatically triggers when smoke levels reach a predetermined point. Once exceeded, the VES display transitions from the Home page to the Sector status page, and the system performs a fast scan of all sectors to identify which sector is carrying smoke. This enables rapid identification while maintaining continuous monitoring of all protected areas.
What applications benefit most from sector addressability?
Sector addressability is particularly valuable in large open spaces that need to be subdivided for operational purposes, such as data centers with separate server aisles, warehouses with distinct storage zones, large office floors with departmental areas, or manufacturing facilities with different production zones. It enables faster incident response by pinpointing the exact location of smoke detection.
Is the VES backward compatible with existing VESDA installations?
Yes, the VESDA-E VES maintains backward compatibility with existing VESDA installations. It occupies the same mounting footprint, pipe, conduit and electrical connector positioning as VESDA VLS. The VES is also compatible with existing VESDAnet installations, allowing monitoring of both VESDA-E and legacy detectors via the latest VSC and VSM4 applications.
How are the individual sector alarm levels configured?
Each of the four sectors can be individually configured with four alarm levels: Alert, Action, Fire 1, and Fire 2. This allows optimization for different environmental conditions within each sector. The system supports both latched and non-latched alarm configurations, and if alarms are latched, the sector alarm indication will be retained until a manual reset is applied.
Specifications
- Supply Voltage : 18-30 VDC (24V Nominal)
- Power Consumption VES-A00-P Quiescent : 7.5W (Aspirator Setting 1), 9.8W (Aspirator Setting 5), 15.4W (Aspirator Setting 10)
- Power Consumption VES-A00-P Alarm : 8.4W (Aspirator Setting 1), 10.8W (Aspirator Setting 5), 15.8W (Aspirator Setting 10)
- Power Consumption VES-A10-P Quiescent : 8.0W (Aspirator Setting 1), 10.4W (Aspirator Setting 5), 16.3W (Aspirator Setting 10)
- Power Consumption VES-A10-P Alarm : 9.2W (Aspirator Setting 1), 11.3W (Aspirator Setting 5), 17.3W (Aspirator Setting 10)
- Dimensions (W H D) : 350 mm x 225 mm x 135 mm (13.8 in x 8.9 in x 5.3 in)
- Weight VES-A00-P : 4.7 kg (10.4 lbs)
- Weight VES-A10-P : 4.8 kg (10.6 lbs)
- Operating Temperature Ambient : 0°C to 38°C (32°F to 100°F)
- Operating Temperature Sampled Air : -20°C to 60°C (-4°F to 140°F)
- Humidity : 5% to 95% RH, non-condensing
- Area Coverage : 2,000 m² (21,520 sq. ft)
- Minimum Airflow Per Pipe : 20 l/m
- Pipe Length Linear : 280 m (919 ft)
- Pipe Length Branched : 560 m (1,837 ft)
- Pipe Lengths 2 Pipes : 100 m (328 ft)
- Pipe Lengths 3 Pipes : 80 m (262 ft)
- Pipe Lengths 4 Pipes : 70 m (230 ft)
- Number Of Holes (A/B/C) : 40/80/100
- Pipe Inlet External Diameter : 25 mm or 1.05 in (3/4 in IPS)
- Pipe Exhaust External Diameter : 25 mm or 1.05 in (3/4 in IPS) via adaptor
- Relays : 12 programmable relays (latching or non-latching), 2A @ 30 VDC
- IP Rating : IP40
- Cable Access : 4 x 26 mm (1.02 in) cable entries
- Cable Termination : Screw Terminal blocks 0.2–2.5 sq mm (24–14 AWG)
- Measurement Range : 0.000 to 32% obs/m (0.0000 to 11.09% obs/ft)
- Sensitivity Range : 0.005 to 20% obs/m (0.0015% to 6.575% obs/ft)
- Alert Threshold Range : 0.005% to 2.0% obs/m (0.0015% to 0.614% obs/ft)
- Action Threshold Range : 0.005% to 2.0% obs/m (0.0015% to 0.614% obs/ft)
- Fire 1 Threshold Range : 0.010% to 2.0% obs/m (0.0030% to 0.614% obs/ft)
- Fire 2 Threshold Range : 0.020% to 20.0% obs/m (0.0061% to 6.575% obs/ft)
- Event Log Capacity : Up to 20,000 events with time and date stamp
- AutoLearn : Automatic alarm thresholds and flow fault thresholds by environmental monitoring
- Sector Addressability : Up to 4 sectors with individual alarm configuration
- Computer Design Tool : ASPIRE
