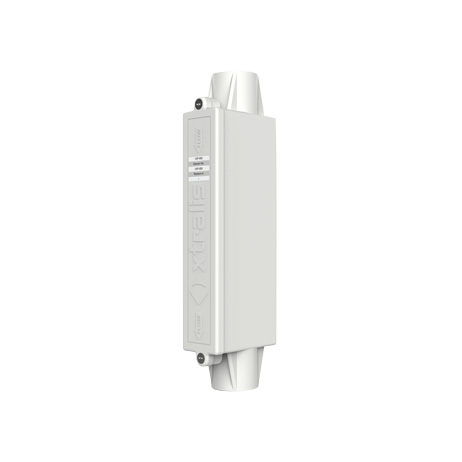

Xtralis In-Line Filter
£116.59
Summary
The Xtralis In-Line Filter provides Xtralis customers the ability to address a wide array of harsh environments with high levels of air-borne contaminants in a simple and cost-effective manner. Unlike other in-line filtration solutions available on the market, the Xtralis In-Line Filter provides superior performance in terms of improving detector longevity and reducing maintenance frequency.
Having tapered inlet and outlet means the Xtralis In-Line Filter is easily fitted in line with the sampling pipe without the need for any additional pipe fittings hence reducing the cost of installation. Filter elements can be easily replaced without having to remove the filter from the pipe network hence simplifying maintenance.
Its elegant design blends in seamlessly into the installation where up to four can be installed side-by-side on Xtralis multi-pipe installations. The arrows on the filter cover indicate the direction of airflow aiding ease of correct mounting, whilst the angled filter elements maximise surface area exposure to promote longer filter life.
Features
- Suitable for all Xtralis Aspirating Smoke Detectors
- Improved detector longevity in applications with high levels of air-borne contamination
- Reduces maintenance intervals, thus reducing total cost of ownership
- Requires no additional pipe fittings thus reducing cost of installation
- Improved aesthetics
- Vertical or horizontal mounting
- Compatible with metric (25mm OD) and imperial (1″ OD) pipes eliminating the need for pipe adaptors
FAQ
What environments is the Xtralis In-Line Filter suitable for?
The filter is designed for harsh environments with high levels of air-borne contaminants where standard aspirating smoke detectors may require frequent maintenance.
Can the filter be installed on existing pipe networks?
Yes, the tapered inlet and outlet design allows easy fitting in line with existing sampling pipes without requiring additional pipe fittings.
How do I know which direction to install the filter?
The filter cover has directional arrows that indicate the correct airflow direction for proper installation.
Can filter elements be replaced without removing the entire unit?
Yes, filter elements can be easily replaced without having to remove the filter from the pipe network, simplifying maintenance procedures.
What pipe sizes is the filter compatible with?
The filter is compatible with both metric (25mm OD) and imperial (1″ OD) pipes, eliminating the need for pipe adaptors.
How many filters can be installed together?
Up to four filters can be installed side-by-side on Xtralis multi-pipe installations whilst maintaining an elegant appearance.
Specifications
- Model Number : VSP-850
- Length : 206mm
- Width : 161mm
- Height : 59mm
- Pipe Inlet Diameter : 33mm
- Pipe Compatibility : Metric (25mm OD) and Imperial (27mm/1″ OD)
- Mounting Options : Vertical or horizontal
- Filter Element Replacement : In-situ without removal from pipe network

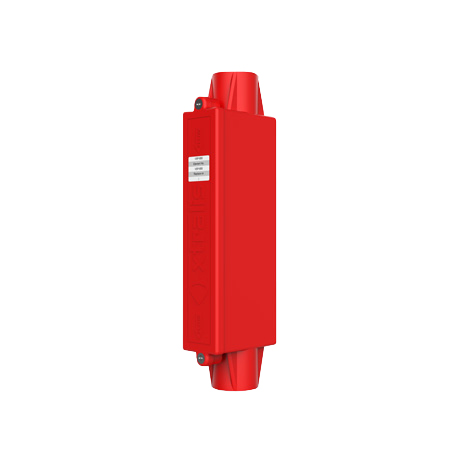

- Colour Options : Grey (VSP-850-G) or Red (VSP-850-R)
- Filter Elements : Available in 4-pack (VSP-855-4) or 20-pack (VSP-855-20)
- Compatible Systems : All Xtralis Aspirating Smoke Detectors
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.4 kg |
|---|---|
| Colour | Red, Grey |
