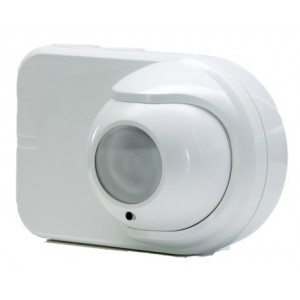

Xtralis OSID Emitter
£252.00
Summary
Open-area Smoke Imaging Detection (OSID) by Xtralis represents a revolutionary advancement in projected beam smoke detection technology. This innovative system combines advanced dual wavelength projected beams with optical imaging technology to deliver early warning smoke detection that overcomes traditional beam detection challenges including false alarm incidents and alignment difficulties.
The OSID system provides a low-cost, reliable and easy-to-install solution that measures smoke levels entering beams of light projected over protected areas. With a single OSID Imager capable of detecting up to seven Emitters, the system delivers wide coverage areas whilst maintaining exceptional stability and sensitivity with superior immunity to high-level lighting variability.
Utilising unique dual wavelength particle detection and CMOS imaging chip technology, OSID distinguishes between particle sizes and provides repeatable smoke obscuration measurements while rejecting transient dust particles and solid intruding objects, making it ideal for demanding fire detection applications.
Features
- Maximum detection range of 150m for the OSI-10
- Dual wavelength LED-based smoke detection technology
- Optical imaging with CMOS imaging chip
- On-board event log for fault and alarm diagnostics
- High tolerance to false alarms due to building movement
- High tolerance to transient dust, steam and intrusion of solid objects
- Easy alignment with large adjustment and viewing angles
- No need for precise alignment
- Tolerant of alignment drift
- Automatic commissioning in under ten minutes
- Simple DIP switch configuration
- Simple and easy maintenance requirements
- Three selectable alarm thresholds
- Status LEDs for fire, trouble and power
- Conventional alarm interface for straightforward fire system integration
- Battery powered emitters with 3 or 5 year battery life
- Internal heating option to prevent condensation
- IP44 rating for electronics, IP66 for optics enclosure
FAQ
What is the maximum detection range of the OSID system?
The OSID system offers a maximum detection range of 150m (492 ft) for the OSI-10 imager, making it suitable for large open areas and high ceiling applications.
How many emitters can a single imager detect?
A single OSID imager can detect up to seven emitters, providing wide coverage areas with the 90° imager offering 80° horizontal and 48° vertical field of view.
What makes OSID different from traditional beam detectors?
OSID uses advanced dual wavelength detection (UV and IR) combined with optical imaging technology, allowing it to distinguish between particle sizes and reject false alarms from dust or building movement whilst requiring less precise alignment.
How long do the battery-powered emitters last?
Battery-powered emitters are available with either 3-year (high power version) or 5-year (standard power version) battery life, significantly reducing installation time and costs.
What alarm threshold options are available?
The OSID system offers three selectable alarm thresholds: Low (20% – highest sensitivity), Medium (35% – medium sensitivity), and High (50% – lowest sensitivity with maximum resistance to nuisance conditions).
What approvals and certifications does OSID have?
OSID holds multiple international approvals including UL, ULC, FM, AFNOR, CE (EMC and CPR), VdS, ActivFire, and BOSEC certifications.
Specifications
- Supply Voltage: 20 to 30 VDC (24 VDC nominal)
- Imager Current Consumption Nominal: 8mA (1 Emitter), 10mA (7 Emitters)
- Imager Current Consumption Peak: 31mA during training mode
- Emitter Current Consumption Wired: 350µA Standard Power, 800µA High Power
- Battery Version Voltage: 1.9 – 3.2 VDC
- Battery Life: 5-year (SP Version), 3-year (HP Version)
- Cable Gauge: 0.2 – 4mm² (26-12 AWG)
- Alarm Threshold Levels Low: 20% (0.97 dB)
- Alarm Threshold Levels Medium: 35% (1.87 dB)
- Alarm Threshold Levels High: 50% (3.01 dB)
- Adjustment Angle Horizontal: ±60°
- Adjustment Angle Vertical: ±15°
- Maximum Misalignment Angle: ±2°
- Dimensions (WHD): 208 mm x 136 mm x 96 mm (8.19 in. x 5.35 in. x 3.78 in.)
- Operating Temperature: -10°C to 55°C (14°F to 131°F)
- Operating Humidity: 10 to 95% RH (non-condensing)
- Storage Temperature: 0°C to 85°C
- Storage Humidity: Dry (<95%)
- IP Rating Electronics: IP44
- IP Rating Optics Enclosure: IP66
- Event Log Capacity: 10,000 events
- Detection Range OSI-10: 30-150m (98-492 ft)
- Detection Range OSI-90: 6-34m standard power, 12-68m high power
- Field Of View OSI-10: 10° horizontal, 7° vertical
- Field Of View OSI-90: 80° horizontal, 48° vertical
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 4 kg |
|---|---|
| Power Type | Standard, High Powered |
| Battery | Battery Operated, Wired |
