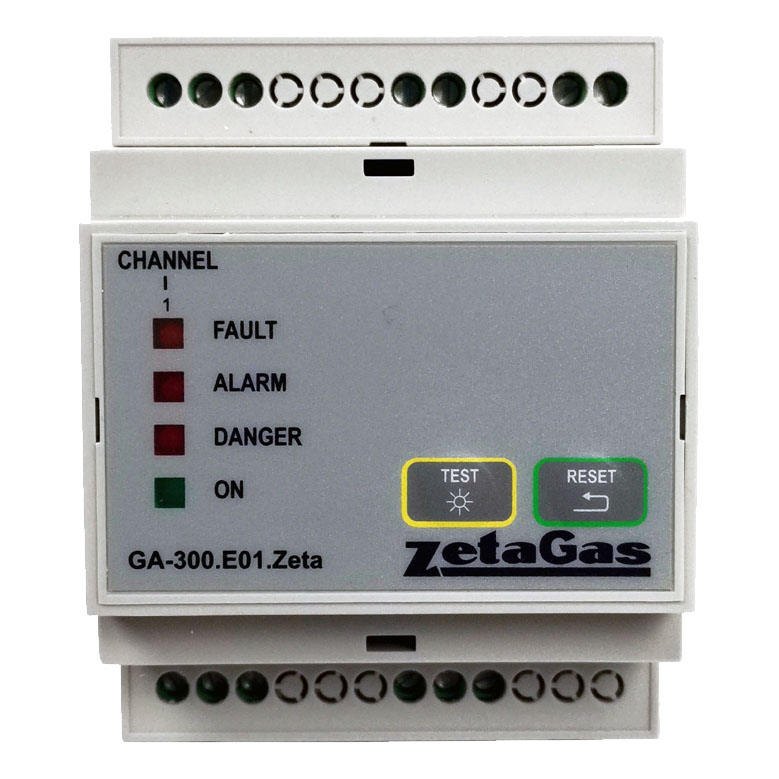

Zeta Analogue Gas Controller
Summary
The Zeta Analogue Gas Controller (GA-300.E01/02/03/04) is designed to manage up to four gas detectors, providing reliable gas detection for non-ATEX areas such as kitchens and boiler rooms. This versatile controller features two alarm levels with LED indication and differential audible alarms, ensuring prompt notification of gas presence. It is equipped with a “TEST” mode for checking actuator conditions and a “RESET” mode that deactivates alarm relay outputs temporarily. The GA-300.E series is compatible with GA-220.BC.V gas detectors and offers easy installation with its DIN housing, making it an ideal choice for standard electrical switchboards.
Features
- Test mode for checking actuator conditions
- Reset mode deactivates alarm relay outputs for 2 minutes
- External backup battery management
- DIN housing for easy installation
- Sound signalisation
- Back-up power supply option
- LED status indication
- Relay outputs
- Complies with EN50270
Specifications
Technical Specifications
- Number Of Inputs: 1 – 4
- Supported Sensors: GS-220.BC.V
- Alarm Levels: 2
- Signalisation: LED, Sound
- Number Of Detectors: GA-300.E01/02: 1, 2; GA-300.E03/04: 3, 4
- Output Signal: Relay SPDT, 250V/2A
- Working Voltage: Mains (230V AC / 50Hz); Backup (12 VDC)
- Power Consumption: 5W – 12W (Depends on the number of sensors)
- Input Line Signal: Analogue 0-4-12-20mA
- Weight: GA-300.E01: 0.220kg; GA-300.E02: 0.240kg; GA-300.E03: 0.310kg; GA-300.E04: 0.330kg
- Working Temperature: -20 – +50°C
- Humidity: 10 – 90% RH
- Enclosure Material: ABS
- Certification: CE
Downloads
- Datasheet (Adobe PDF)
Additional information
| Number of Detectors | 1, 2, 3, 4 |
|---|
