Ziton Conventional Fire Panel Supervised or Unsupervised Relay Board
Key features
- Bus Type Easy Cable Free Installation
- Output Delay per Output
- “AND” “OR” Programming Functionality
- Powered from Panel Bus
Downloads
Summary

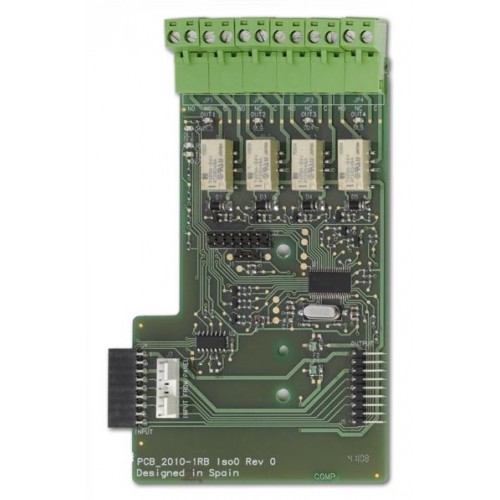

The 2010-1-RB is a programmable, voltage free relay board. It provides 4 auxiliary outputs for the 1X conventional fire alarm control panel. These outputs may be allocated to activate on various alarm statuses of the panel, or to activate on the status of any, all or combinations of the individual fire detection zones in the panel. Up to 4 of these modules may be installed on the 1X panel line.
Key Features
- 4 Potential free, COM-NO-NC, changeover relay outputs
- Bus type, easy cable free panel installation
- Powered from panel bus
- ”AND” and ”OR” programming functionality
- Output delay setting per output
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.1 kg |
|---|---|
| Version | Unsupervised, Supervised |
