Apollo Series 65 is a range of conventional fire alarm detectors with separate mounting bases. This guide covers the optical smoke detector, the A1R, BR, CR and CS heat options sold by Huvo, and the base choices to check before ordering.

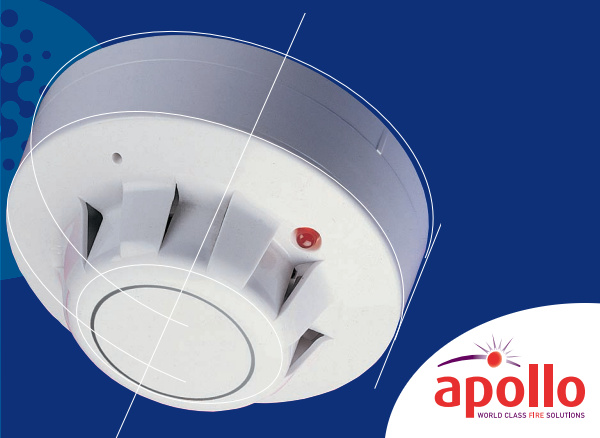

Apollo Series 65 optical smoke detector
The Apollo Series 65 optical smoke detector 55000-317APO uses light scatter to sense smoke entering its chamber. Its red indicator lights in alarm. Huvo lists this standard model as SKU 55000-317. Apollo also makes separate flashing-LED variants, so check the full code on an existing head when ordering a replacement.
Apollo describes the optical detector as responding well to slow-burning, smouldering fires. Detector selection should follow the fire alarm design and conditions at the installation.
Apollo Series 65 heat detector classes
Huvo’s Series 65 conventional heat detector listing offers four standard models. A1R, BR and CR have a rate-of-rise response. CS uses a static heat response. The class must suit the expected ambient temperature and normal temperature changes in the protected area.
| Class and model | Response | Maximum application temperature | Maximum static response temperature |
|---|---|---|---|
| A1R 55000-122APO | Rate of rise | 50°C | 65°C |
| BR 55000-127APO | Rate of rise | 65°C | 85°C |
| CR 55000-132APO | Rate of rise | 80°C | 100°C |
| CS 55000-137APO | Static heat | 80°C | 100°C |
Maximum application temperature describes the environment the class is intended for. The static response figure is an upper response limit, rather than a single guaranteed activation temperature. A rate-of-rise detector can respond to a rapid temperature increase before reaching its static response limit. Match the class and part number specified by the system designer. Huvo’s product selector uses the corresponding codes without the APO suffix.
The figures above match Apollo’s current PP2614 Issue 2 datasheet and the temperature table on page 2 of the PP2614 Issue 1 heat detector datasheet.
Which base does a Series 65 detector need?
The base connects the detector to the circuit. Choose the Series 65 base specified for the panel, wiring and required function. Physical fit alone does not establish electrical compatibility.
- Standard base 45681-200APO. Apollo’s standard mounting base has terminals for the zone wiring and a remote indicator. Follow the base installation diagram and panel instructions.
- Diode base 45681-201APO. Apollo specifies this for compatible conventional control equipment where manual call points and detector bases share a circuit. It contains a Schottky diode between L1 IN and L1 OUT. Confirm that the panel supports this arrangement.
- 12 V DC relay base 45681-508APO. Apollo provides latching and non-latching jumper settings for fire and security applications respectively. Confirm the supply, relay function and configuration against the installation instructions.
Huvo lists these bases under SKUs 45681-200, 45681-201 and 45681-508. Apollo also offers other Series 65 base functions. Match the full base reference to the system specification before substituting a different type.
Replacing an older Series 65 detector
Check the code on the detector head, the heat class where applicable, the existing base and the panel’s compatibility requirements. Huvo’s old Series 65 ionisation detector listing is marked obsolete. Have the installer confirm a suitable replacement for the application and system before changing detector type.
Product details were checked against Apollo’s optical detector page, heat detector documentation and Series 65 range. Use the instructions for the exact detector, base and panel when planning or maintaining an installation.
