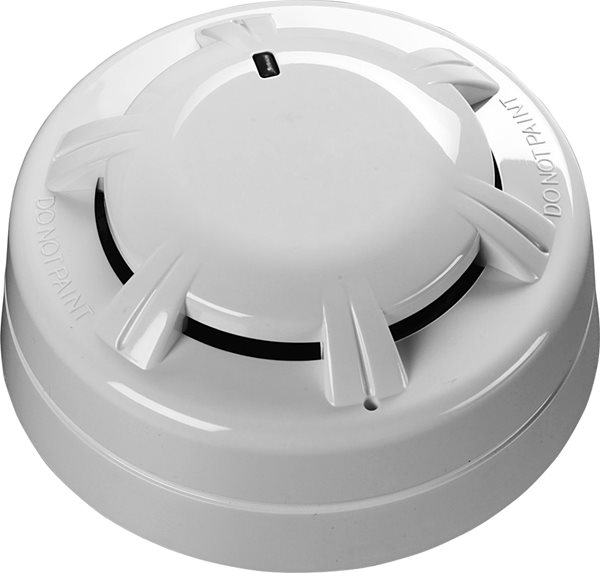

Apollo Orbis Conventional Optical Smoke Detector
£15.79
Key features
- Improved sensitivity to black smoke
- Compensation for build-up of dirt
- Extra confirmation of smoke before an alarm signal is given
Downloads
Summary
The Apollo Orbis ORB-OP-12001-APO is a conventional optical smoke detector for 8.5–33 V DC systems. Select No under Flashing LED for this standard model. Its LED does not flash in normal operation. Apollo uses the separate code ORB-OP-12003-APO for the version that flashes in normal operation.
View full overview Show less
This listing is for the detector head. The Orbis TimeSaver mounting base (ORB-MB-00001-APO) is sold separately. Check the specified panel and base against Apollo’s model information and see the Orbis detector head installation guide for fitting and LED checks.
Features
- Photo-electric detection of light scattered by smoke particles
- Sampling frequency of once every four seconds
- Operating voltage range of 8.5 V dc to 33 V dc
- Two wire supply, polarity sensitive
- Alarm current of 20 mA at 12 V and 40 mA at 24 V
- Integral indicator with 360º visibility
- Automatic drift compensation with a DirtAlert indicator
- Operating temperature range of -40ºC to +70ºC
- Humidity tolerance of 0% to 98% RH
- Compliance with multiple standards including EN54-7 and CPR
Specifications
- Detection Principle : Photo-electric Detection
- Sampling Frequency : Once Every Four Seconds
- Operating Voltage : 8.5 V dc To 33 V dc
- Power Up Time : Less Than 20 Seconds
- Minimum Detector Active Voltage : 6 V
- Average Quiescent Current: 95 µA
- Alarm Current : 20 mA At 12 V, 40 mA At 24 V
- Alarm Load : 600 Ω
- Holding Voltage : 5 V – 33 V
- Alarm Reset Voltage : Less Than 1 V
- Alarm Reset Time: One Second
- Operating Temperature : -40ºC To +70ºC
- Humidity : 0% To 98% RH
- Ingress protection : Apollo’s product page and Orbis engineering guide list IP23D. The 2019 PP2632 datasheet lists IP44. Confirm the applicable rating with Apollo if it is required for the installation.
- Dimensions : 97 mm Diameter X 31 mm Height
- Weight : 75 g
- Materials : White Flame Retardant Polycarbonate
