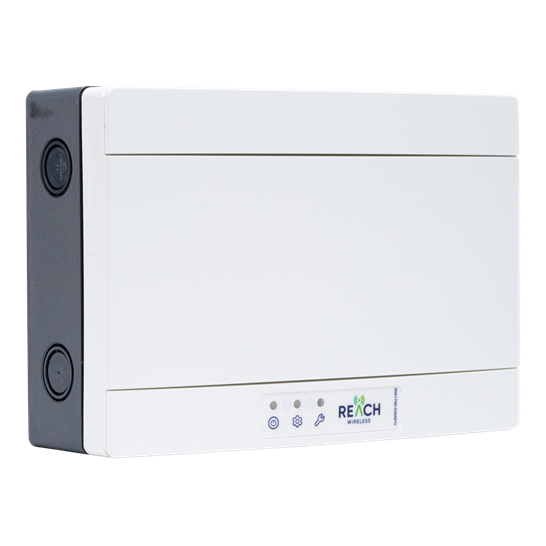

Apollo REACH Loop Interface Module
£214.57 (inc VAT: £257.48)
Summary
The REACH Wireless Loop-Interface is a vital component that connects REACH Wireless devices to an Apollo wired loop system. This interface translates wireless communication into wired protocol, ensuring seamless integration and operation with the fire panel. With its robust design and advanced features, the Loop-Interface enhances the reliability and efficiency of fire detection systems.
Features
- Communication range of 100 m in open space
- 22 pairs of field device radio frequency channels
- Radiated power of 14 dBm (25 mW)
- Operating temperature range of -20°C to +70°C
- Maximum relative humidity of 95% (non-condensing)
- IP rating of IP 65 for dust and water resistance
- Dimensions of 236 mm diameter x 100 mm height x 70 mm depth
- Weight of 700 g including base and batteries
- Loop-powered with built-in isolator for added safety
- Bi-directional wireless communication with dual channel redundancy
FAQ
Which fire panels is the REACH loop interface module compatible with?
The REACH wireless loop module is compatible with all Apollo wired addressable systems. The loop module uses the Apollo XP95 protocol, making it compatible with Discovery and CoreProtocol loops as a legacy device.
However, fire panel features and technical specifications can vary, so it’s recommended to refer to the specific panel’s compatibility list to confirm REACH wireless support.
Can the REACH loop interface be used as a standalone solution?
The REACH loop module cannot function as a standalone solution and must be connected to a wired loop to operate. This is because it acts as a bridge between the wired and wireless networks, translating communication between the wired panel and wireless devices.
Specifications
- Product Name : REACH Wireless Loop-Interface
- Part Number : RW1700-030APO
- Line Voltage : 17 V – 35 V (typical 24 V)
- Current Consumption : 40 mA peak @ 24 V
- Flash Rate : 0.5 Hz
- Available Protocol Addresses : 126 (XP95)
- Maximum Number of Connected Devices : 32
- Dimensions : 236 Mm Diameter X 100 Mm Height X 70 Mm Depth
- Weight : 700 G
Downloads
- Datasheet (Adobe PDF)
