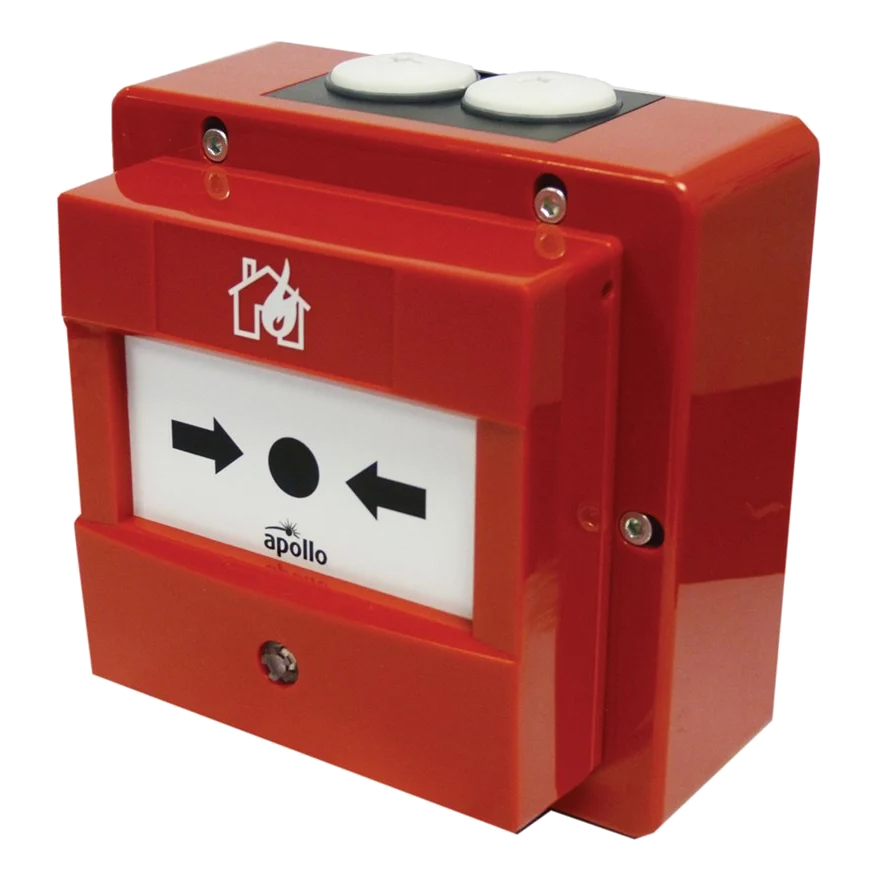

Apollo XP95 IS Manual Call Point
£165.04 (inc VAT: £198.05)
Summary
The 55200-940APO IS call point from Apollo is used to manually initiate an alarm signal on the fire detection system.
The 55200-940APO is suitable for use in areas where explosive atmospheres are, or may be, present.
Features
- Suitable for intrinsically safe and weatherproof applications
- Suitable for use on Zones 2, 1 & 0
- EN 54-11 Certified
- Reports an alarm in under 0.2 seconds
- XP95 & Discovery compatible
Specifications
General
- Warranty : 3 years
Mechanical
- Colour : Red
- Weight : 240g
- Materials Housing : Polycarbonate, ABS
- Product Dimensions (LxWxD) : 97.5x93x71mm
- Detection Principle : Operation of a switch
Conformance
- Approvals : BASEEFA, CPR, IECEx, PESO (CCoE)
Electrical
- Protocol Voltage : 5 to 9V peak to peak
- Power-up Surge Current : 1mA
- Quiescent Current : 300μA (tested at 24V dc)
- Polarity : L1 & L2 are polarity sensitive
Environmental
- Humidity : 0% to 95% RH
- IP Rating : IP67
Additional information
| Weight | 0.24 kg |
|---|---|
| Device Type | |
| Environment | |
| Hazardous Applications | |
| Marine Applications | |
| Protocol | |
| Short Circuit Isolator | |
| System Type |
