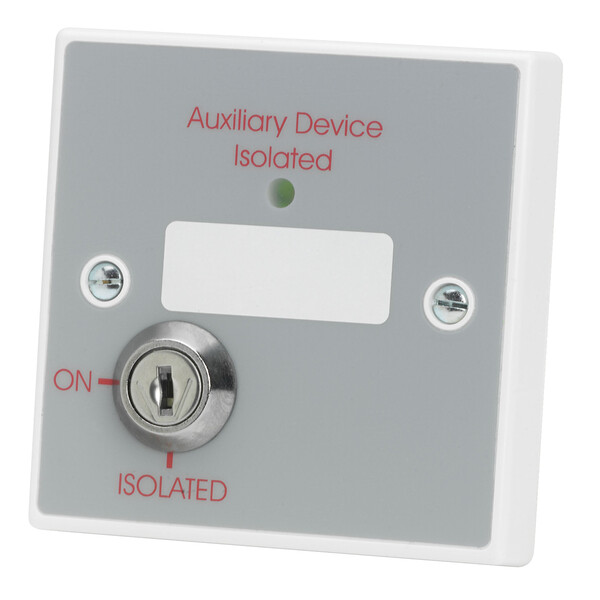

C-Tec BF367 Auxiliary Device Isolator
£16.81 (inc VAT: £20.17)
Key features
- Isolate a 24V output for fire alarm panel.
- Prevent auxillary equipment such as autodiallers from activating.
- Label includes area to write on description.
Downloads
Summary
The C-Tex BF367 allows a +24 VDC output from a fire alarm control panel to be remotely isolated to prevent autodiallers, water sprinklers, rollershutters, etc, from activating.
View full overview Show less
The BF367 is designed so that if monitoring is used on the +24 VDC output being controlled, a fault condition will show at the fire panel when the device is Isolated.
The label includes a white ‘write on’ area allowing installers to add equipment locations and it fits on standard UK 25mm flush or surface mount back boxes.
Key Features
- Isolate a 24V output for fire alarm panel.
- Prevent auxillary equipment such as autodiallers from activating.
- Label includes area to write on description.
Specifications
- Activation Current : 10mA @ 27.6 VDC required to illuminate the amber Isolated LED
- Switching Load : Switching Resistive load 3A @ 30V DC; Switching Inductive load 1.5A @ 30V DC; Non-switching current rating 5A Absolute Max
- Indicators : Isolated LED
- Connections : OV; SW In; SW Out
- Dimensions (WxHxD) : 85x85x19mm
- Construction & Finish : White PVC plate; Grey label; Silver plated brass switch material
- IP Rating : IP40
- Operating Temperature : -10ºC to +60ºC
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.2 kg |
|---|
