CAST Compact Ceiling White VAD
£30.56 (inc VAT: £36.67)
Summary

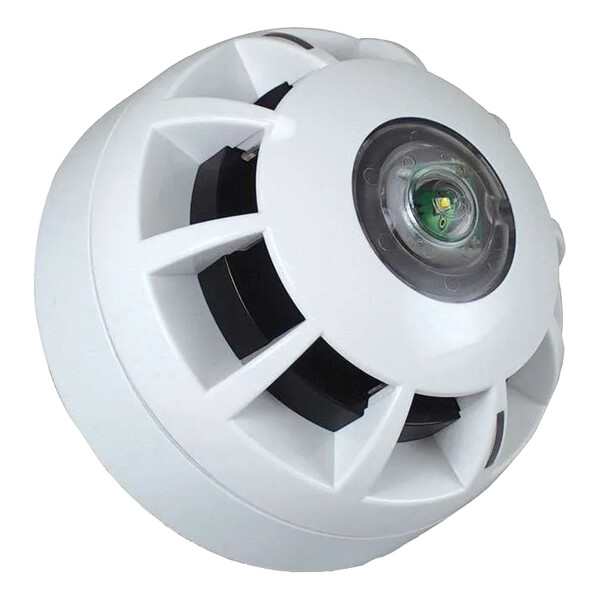

The C-TEC CA458A/SW is a specialised Ceiling Voice Alarm Device (VAD) designed to deliver reliable performance in fire safety applications. Certified to LPCB EN54-17 & 23 and Kiwa Telefication EN54-13, this device ensures compliance with stringent safety standards. It provides ‘C-3-8’ light distribution when ceiling mounted and can also be wall-mounted to offer ‘W-3-3.1’ light distribution, making it versatile for various installation needs.
Features
- Provides ‘C-3-8’ light distribution when ceiling mounted
- Can provide ‘W-3-3.1’ light distribution when wall mounted
- 7mA typical alarm current
- 460µA typical quiescent current
- IP21C rated for environmental protection
- Polling indicator (red LED)
- Product dimensions: 102mm diameter x 63mm deep
Specifications
- Approvals/Certifications : LPCB Certified To EN54-17 & 23, Kiwa Telefication Certified To EN54-13
- Protocol/Compatibility : Compatible With C-TEC’s CAST Protocol Addressable Fire Panels
- VAD Category & Coverage : C-3-8 Or W-3-3.1
- Flash Rate & Colour : 0.5Hz / White
- Supply/Operating Voltage : 27 To 40V DC
- Quiescent Current : 460µA Typical
- Alarm Current : 7mA @ 27 To 40V DC (VAD Lit)
- Indicators : Polling (Red LED)
- Product Dimensions (mm) : 102mm Diameter x 63mm Deep
- IP Rating : IP21C (Type A)
- Weight : 175g
- Operating Conditions/Temperature : -10ºC To +55ºC, Max. 95% RH (Non-condensing)
Downloads
- Datasheet (Adobe PDF)
