CAST Manual Call Point
Summary

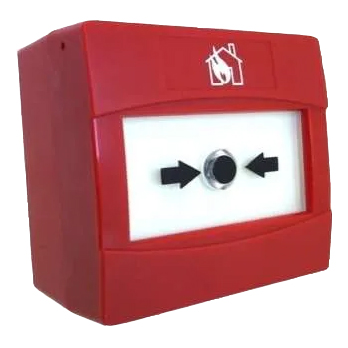

The C-TEC CA470 is a high-quality red manual call point designed for use with C-TEC’s XFP and ZFP ‘CAST’ protocol Addressable Fire Panels. This device is LPCB certified to EN54 Parts 11 & 17 and Kiwa Telefication certified to EN54-13, ensuring compliance with rigorous safety standards. It features a smooth-action resettable element that mimics the feel of breaking glass, making it user-friendly and reliable in emergency situations.
Features
- Surface or flush mountable with included back box and adaptor plate
- Photoluminescent operating window visible for up to 5 minutes
- 5mA typical alarm current
- 370µA typical quiescent current
- IP42 rated (IP67 rated version available)
- Supplied with reset/back box removal key and ‘Not in Use’ label
- Available in yellow, green, blue, and white versions
Specifications
- Approvals/Certifications : LPCB Certified To EN54 Parts 11 & 17, Kiwa Telefication Certified To EN54-13
- Compatibility : Compatible With C-TEC’s XFP/ZFP CAST Protocol Addressable Fire Panels
- Application/Operation : Surface Or Flush Mountable
- Supply/Operating Voltage : 22 To 40V DC
- Quiescent Current : 370µA Typical @ 22 To 40V DC
- Alarm Current : 5mA Typical @ 22 To 40V DC
- Indicators : Red ‘Alarm Ring’ (Lit Steady Red When Activated, Flashing Red When Polling)
- Connections : Loop IN, Loop OUT (x2)
- Product Dimensions (mm): 87 W x 88 H x 62 D (Includes Back Box)
- Construction & Finish : Red ABS Polycarbonate; Glass Fibre Window
- IP Rating : IP42
- Weight : 180g
- Operating Conditions/Temperature : -10ºC To +55ºC
