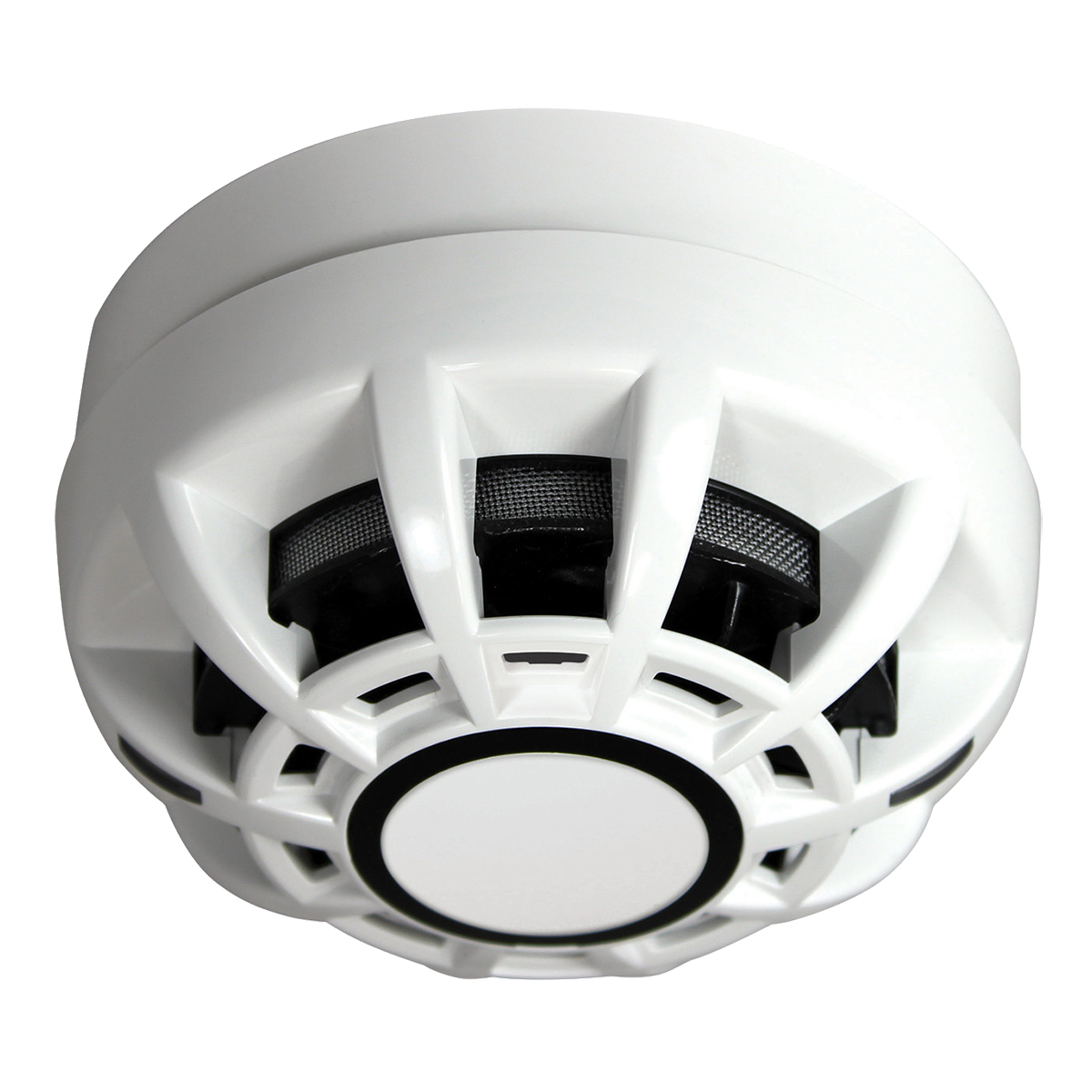

CAST-PRO CO Fire + Smoke + Heat Multisensor

£54.40 (inc VAT: £65.28)

Low Stock

Summary

The C-Tec CAST-PRO CO Fire + Smoke + Heat Multisensor (Part No. CP411) is a state-of-the-art fire detection device designed for enhanced safety and reliability. This programmable detector is certified to EN54-5, 7, 17, 29 & 31, ensuring compliance with stringent safety standards. It is compatible with C-TEC’s ZFP touchscreen-controlled CAST protocol addressable fire panel, making it an ideal choice for modern fire safety systems.

Utilising advanced technologies such as the MASC™ (Miniature Advanced Smoke Detection Chamber) and AFFIRM™ algorithms, the CP411 offers exceptional tolerance to false alarms while improving the detection of real fire conditions. Its onboard features, including drift compensation and a short circuit loop isolator, further enhance its operational reliability.

Features

  • Certified to EN54-5, 7, 17, 29 & 31
  • 12 detection modes with adjustable sensitivity
  • Drift compensation functionality
  • Onboard short circuit loop isolator
  • Two ultra-bright red LED indicating strips
  • Compatible with CA408 CAST base
  • Operating voltage: 22 to 40V DC
  • Quiescent current: 630uA @ 40V DC
  • Alarm current: <1mA
  • IP Rating: IP21C
  • Dimensions: 105mm diameter x 48mm deep
  • Weight: 122g (not in base)
  • Operating temperature: -10ºC to +50ºC

Specifications

  • Approvals/Certifications : KIWA Certified to EN54-5, 7, 17, 29 & 31
  • Compatibility : C-TEC’s ZFP CAST Addressable Fire Alarm Systems
  • Type : CO, Heat & Smoke Fire Detection
  • Sensitivity : 12 Detection Modes (default Mode 10)
  • Supply Wiring : 2-Wire, Polarity Sensitive
  • Supply/Operating Voltage : 22 to 40V DC
  • Quiescent Current : 630uA @ 40V
  • Alarm Current (Imax at Vmin) : <1mA
  • Sound Pressure Level (LAFmax) : N/A
  • VAD Category & Coverage : N/A
  • Indicators : 2 LED Indicator Strips
  • Connections : Via CA408 Base
  • Product Dimensions : 105mm Diameter x 48mm Deep
  • IP Rating : IP21C
  • Weight : 122g (not in base)
  • Operating Conditions/Temperature : -10ºC to +50ºC

Downloads

Additional information

Device Type

Detection Type

, ,

System Type

Colour

,

Environment

Hazardous Applications

Marine Applications

Protocol
