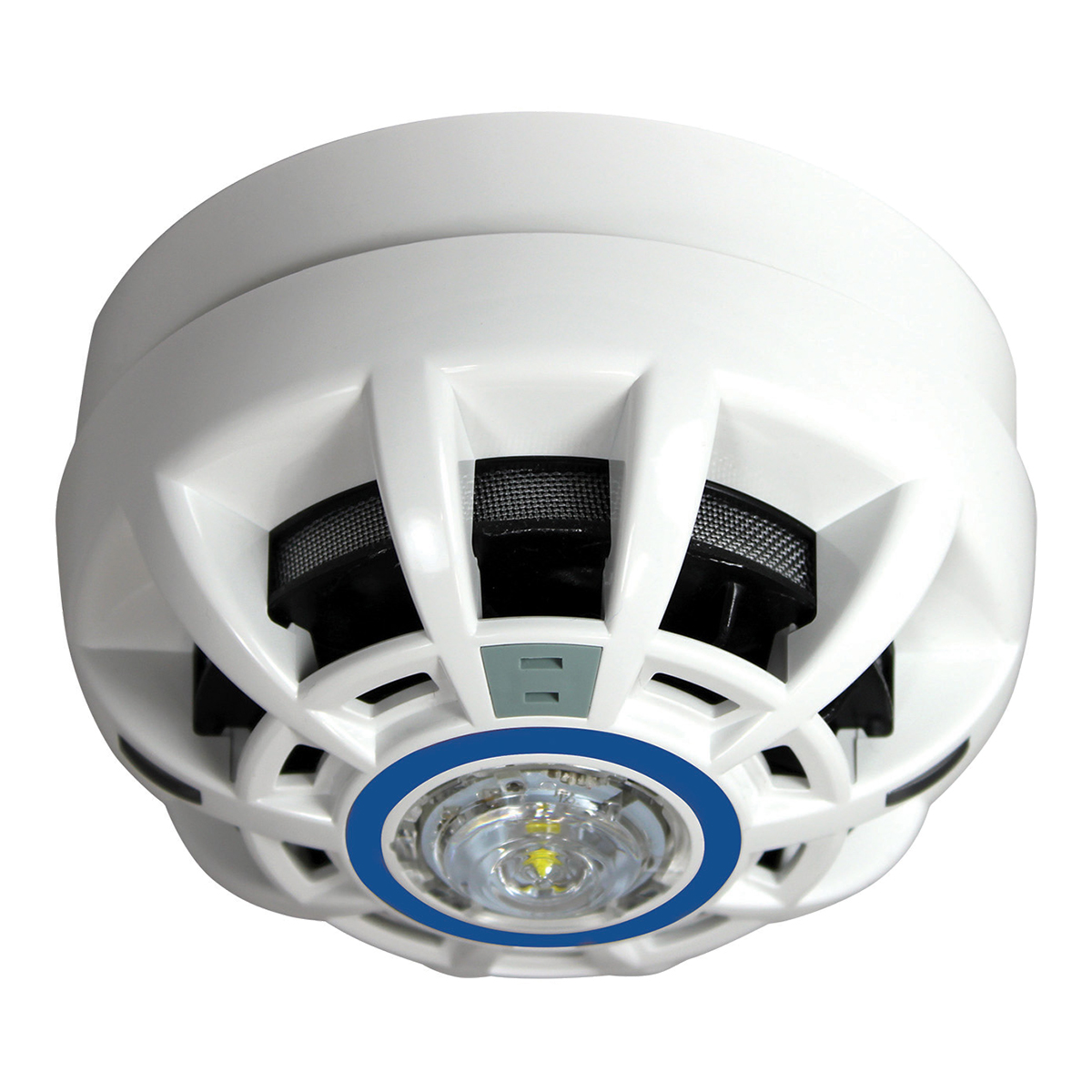

CAST-PRO CO Fire + Smoke + Heat Multisensor with Sounder & White VAD
£105.60 (inc VAT: £126.72)
Summary
The C-Tec CAST-PRO CP411TV is a state-of-the-art CO fire, smoke, and heat multisensor designed to enhance fire detection capabilities. This device integrates multiple functionalities into a single unit, including a 92dB(A) tone alarm sounder and a C-3-9.4 visual alarm device (VAD). It is engineered to quickly detect real fire conditions while significantly reducing false alarms, ensuring reliable performance in critical situations.
Certified to various EN standards, the CP411TV is compatible with C-TEC’s ZFP touchscreen-controlled CAST protocol addressable fire panel, making it a versatile choice for modern fire safety systems.
Features
- CO, heat and smoke fire detection
- 92dB(A) tone alarm sounder
- C-3-9.4 visual alarm device
- Drift compensation functionality
- Onboard short circuit loop isolator
- Multiple detection modes and sensitivities
- Two ultra-bright red LED indicating strips
Specifcations
- Approvals/Certifications : CPR Number 0063-CPR-212190016, KIWA Certified to EN54-3, 5, 7, 17, 23, 29 & 31
- Compatibility : Compatible with C-TEC’s ZFP CAST Addressable Fire Alarm Systems
- Type : CO, Heat & Smoke Fire Detection plus Tone Alarm & White VAD
- Sensitivity : 12 Detection Modes (default for this device is Mode 10)
- Supply Wiring : 2-wire, polarity sensitive
- Supply/Operating Voltage : 28 to 40V DC
- Quiescent Current : 630uA @ 40V
- Alarm Current (Imax at Vmin) : 13.2mA (max volume, VAD lit)
- Alarm Current (Iavg at Vmin) : 10.8mA (max volume, VAD lit)
- Sound Pressure Level (LAFmax) at Vmax at 1m: 92dB(A)
- VAD Category & Coverage : C-3-9.4 (10m2/mA efficiency; 0.5Hz Synchronised)
- Indicators : 2 LED indicator strips emitting red light when in alarm offering 360º visibility
- Connections : Via CA408 base: 1 +Ve IN (analogue switch); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen
- Product Dimensions (mm) : 105mm diameter x 51mm deep (detector only); 105mm diameter x 68mm deep (detector in base)
- IP Rating : IP21C
- Weight : 133g (not in base); 188g (in base)
- Operating Conditions/Temperature : -10ºC to +50ºC. Max relative humidity: 95% (non-condensing)
- Notes : Requires a CA408 CAST base. CA408R relay base also available
Downloads
- Datasheet (Adobe PDF)
