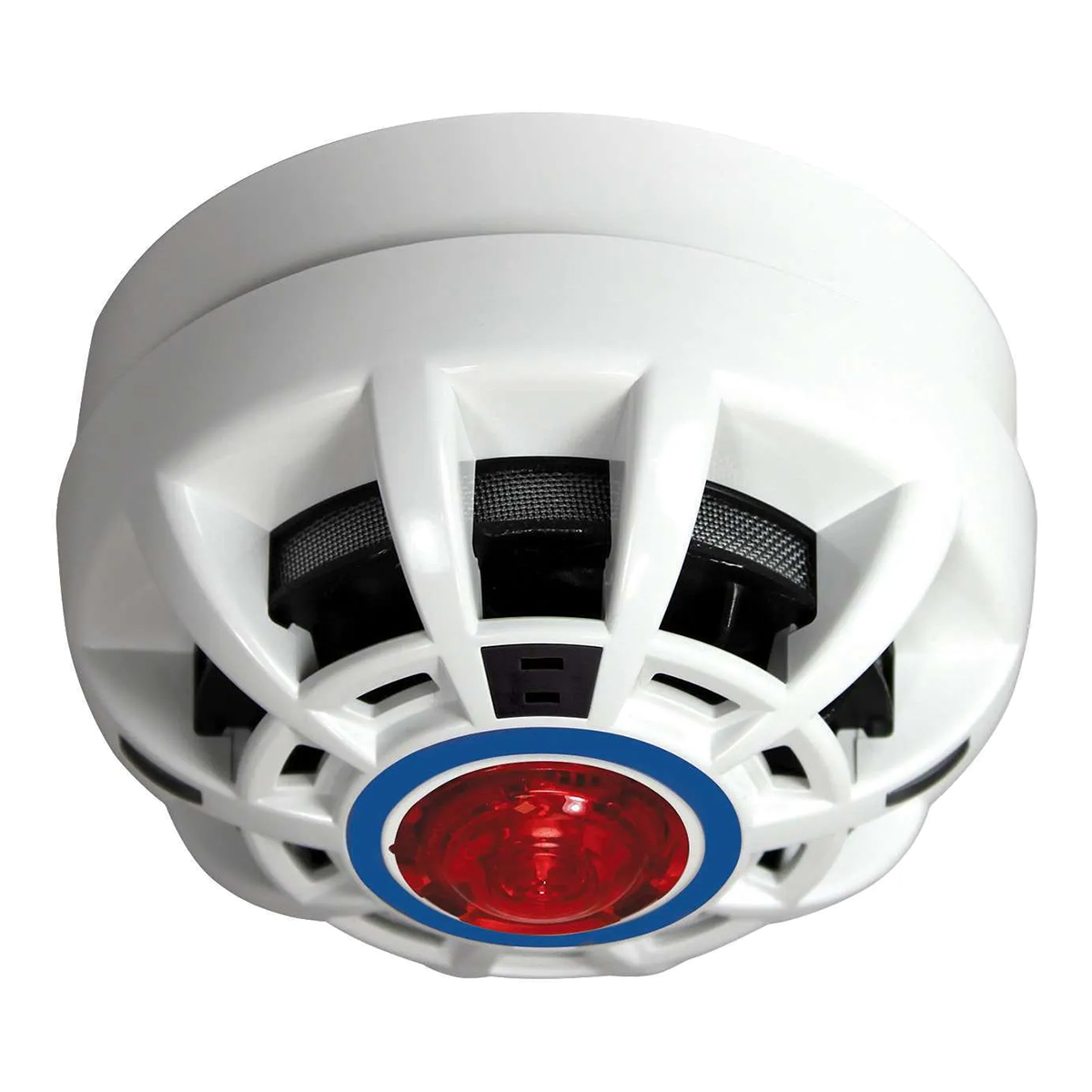

CAST-PRO Smoke + Heat Multisensor with Voice Sounder & Red VAD
£119.68 (inc VAT: £143.62)
Summary
The CAST-PRO Smoke + Heat Multisensor (Part No. CP414VVR) is an advanced fire detection device that integrates smoke and heat sensing capabilities with an 86dB(A) voice sounder and an O-C-1.9-4 red visual alarm device (VAD). This multifunctional unit is engineered to quickly identify real fire incidents while effectively minimising false alarms, ensuring reliable alarm conditions. It meets multiple EN certifications and is compatible with C-TEC’s ZFP touchscreen-controlled CAST protocol addressable fire panel, making it a robust solution for modern fire safety systems.
Featuring cutting-edge technologies like MASC™ and AFFIRM™ algorithms, the CAST-PRO enhances detection accuracy while reducing the likelihood of false alarms. The device also offers various detection modes and selectable voice messages, providing a comprehensive fire safety solution tailored to different environments and requirements.
Features
- Smoke and heat multisensor fire detection
- 86dB(A) voice sounder with six selectable messages
- O-C-1.9-4 red visual alarm device (VAD)
- Drift compensation functionality
- Onboard short circuit loop isolator
- Two ultra-bright red LED indicator strips
- Eight detection modes for varying sensitivities
- Compatible with CA408 CAST base
Specifcations
- Approvals/Certifications : CPR Number 0063-CPR-242190011, KIWA Certified To EN54-3, 5, 7, 17, 23 & 29
- Compatibility : Compatible With C-TEC’s ZFP CAST Addressable Fire Alarm Systems
- Type : Heat & Smoke Fire Detection Plus Voice Sounder & Red VAD
- Sensitivity : 8 Detection Modes (Default For This Device Is Mode 7)
- Supply Wiring : 2-Wire, Polarity Sensitive
- Supply/Operating Voltage : 28 To 40V DC
- Quiescent Current : 590uA @ 40V
- Alarm Current (Imax At Vmin) : 24.9mA (Max Volume, VAD Lit)
- Alarm Current (Iavg At Vmin) : 14.6mA (Max Volume, VAD Lit)
- Sound Pressure Level (LAFmax) At Vmax At 1m : 86dB(A)
- VAD Category & Coverage : O-C-1.9-4 (2m2/mA Efficiency; 0.5Hz Synchronised)
- Indicators : 2 LED Indicator Strips Emitting Red Light When In Alarm Offering 360º Visibility
- Connections : Via CA408 Base: 1 +Ve IN (Analogue Switch); 2 +Ve OUT (Analogue Switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen
- Product Dimensions (mm) : 105mm Diameter x 51mm Deep (Detector Only); 105mm Diameter x 68mm Deep (Detector In Base)
- IP Rating : IP21C
- Weight : 131g (Not In Base); 186g (In Base)
- Operating Conditions/Temperature : -10ºC To +50ºC, Max Relative Humidity: 95% (Non-Condensing)
- Notes : Requires A CA408 CAST Base. CA408R Relay Base Also Available
Downloads
- Datasheet (Adobe PDF)
Additional information
| Device Type | |
|---|---|
| Colour | |
| Detection Type | |
| Environment | |
| Hazardous Applications | |
| Marine Applications | |
| Protocol | |
| System Type | |
| Flash Colour |
