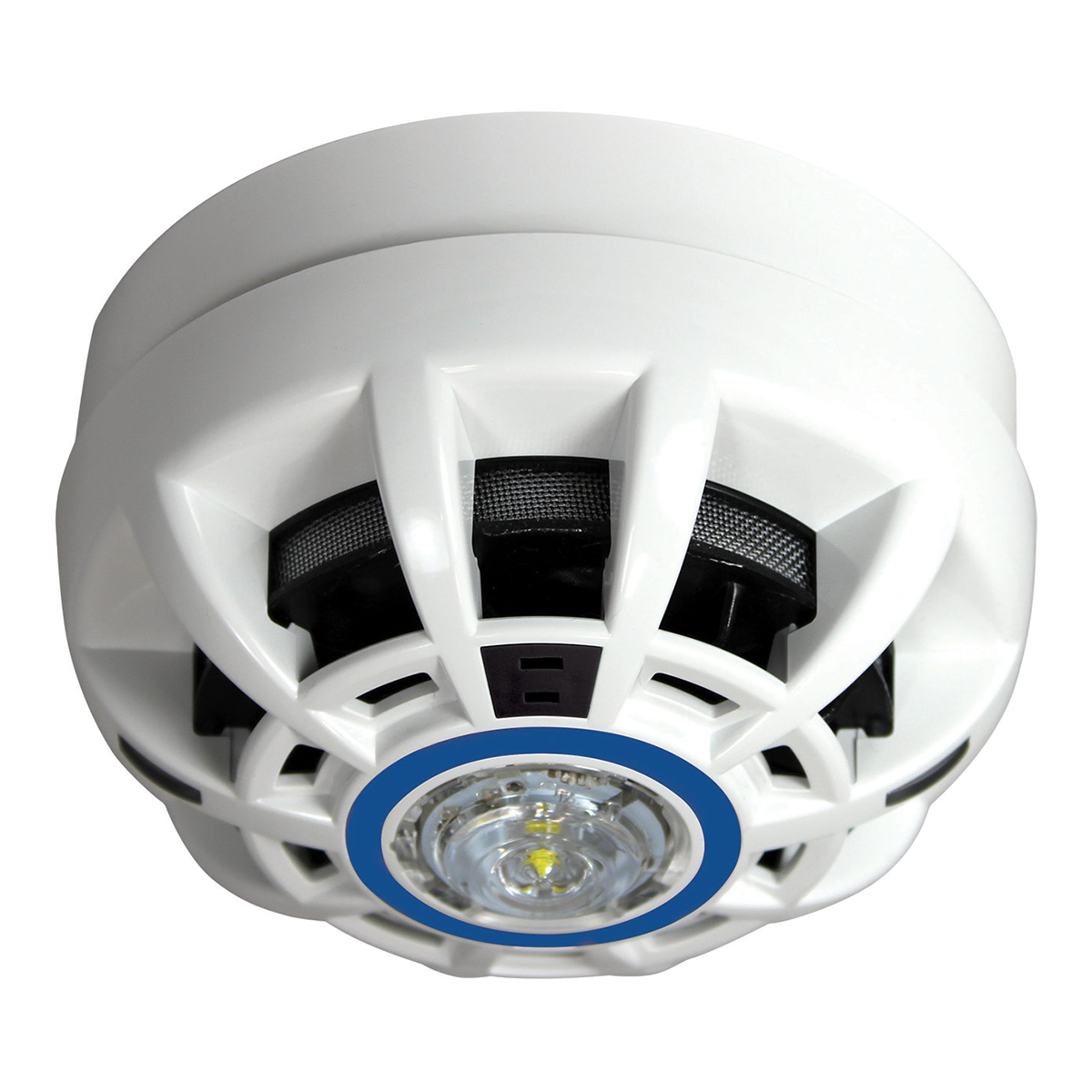

CAST-PRO Smoke + Heat Multisensor with Voice Sounder & White VAD
£113.28 (inc VAT: £135.94)
Summary
The CAST-PRO Smoke + Heat Multisensor (Part No. CP414VV) is a versatile fire detection device that combines smoke and heat sensing with an 86dB(A) voice sounder and a C-3-9.4 visual alarm device (VAD). This innovative product is designed to quickly detect real fires while effectively reducing false alarms, ensuring reliable alarm conditions. It is certified to multiple EN standards and is compatible with C-TEC’s ZFP touchscreen-controlled CAST protocol addressable fire panel, making it an ideal choice for modern fire safety systems.
Equipped with advanced features such as MASC™ technology and AFFIRM™ algorithms, the device enhances detection capabilities while minimizing false alarms. The CAST-PRO also offers multiple detection modes and selectable voice messages, providing comprehensive fire safety solutions for various environments.
Features
- Smoke and heat multisensor fire detection
- 86dB(A) voice sounder with six selectable messages
- C-3-9.4 visual alarm device (VAD)
- Drift compensation functionality
- Onboard short circuit loop isolator
- Two ultra-bright red LED indicator strips
- Eight detection modes for varying sensitivities
- Compatible with CA408 CAST base
Specifcations
- Approvals/Certifications : CPR Number 0063-CPR-242190011, KIWA Certified To EN54-3, 5, 7, 17, 23 & 29
- Compatibility : Compatible With C-TEC’s ZFP CAST Addressable Fire Alarm Systems
- Type : Heat & Smoke Fire Detection Plus Voice Sounder & White VAD
- Sensitivity : 8 Detection Modes (Default For This Device Is Mode 7)
- Supply Wiring : 2-Wire, Polarity Sensitive
- Supply/Operating Voltage : 28 To 40V DC
- Quiescent Current : 590uA @ 40V
- Alarm Current (Imax At Vmin) : 24.9mA (Max Volume, VAD Lit)
- Alarm Current (Iavg At Vmin) : 14.6mA (Max Volume, VAD Lit)
- Sound Pressure Level (LAFmax) At Vmax At 1m : 86dB(A)
- VAD Category & Coverage : C-3-9.4 (10m2/mA Efficiency; 0.5Hz Synchronised)
- Indicators : 2 LED Indicator Strips Emitting Red Light When In Alarm Offering 360º Visibility
- Connections : Via CA408 Base: 1 +Ve IN (Analogue Switch); 2 +Ve OUT (Analogue Switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen
- Product Dimensions (mm) : 105mm Diameter x 51mm Deep (Detector Only); 105mm Diameter x 68mm Deep (Detector In Base)
- IP Rating : IP21C
- Weight : 131g (Not In Base); 186g (In Base)
- Operating Conditions/Temperature : -10ºC To +50ºC, Max Relative Humidity: 95% (Non-Condensing)
- Notes : Requires A CA408 CAST Base. CA408R Relay Base Also Available
