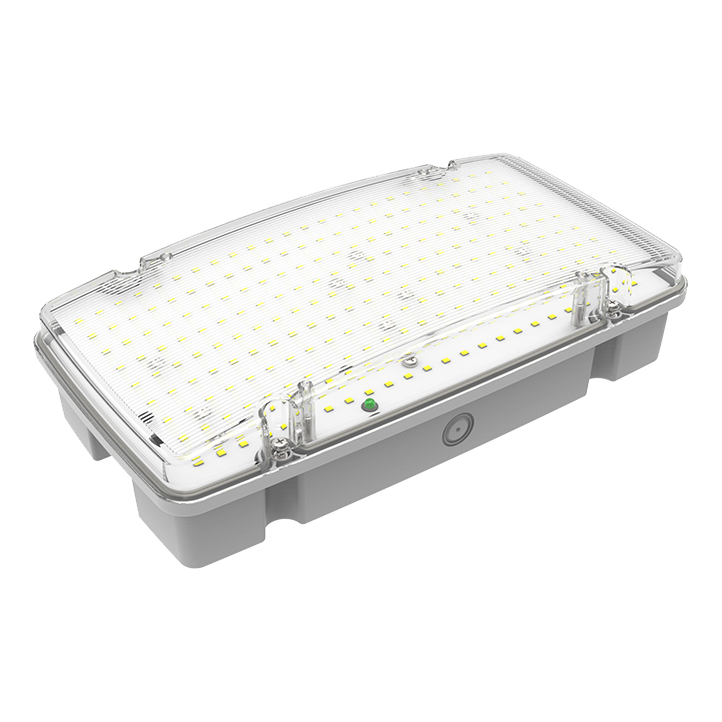

CQR LED Emergency Bulkhead Max, 10W, Non-Maintained, IP65
£56.67 (inc VAT: £68.00)
Summary
The CQR Bulkhead Max Emergency Bulkhead represents the pinnacle of robust emergency lighting design, engineered specifically for demanding industrial and commercial environments. This high-performance 10W emergency bulkhead delivers exceptional 1000-1500 lumen output whilst maintaining superior IP65 protection, making it ideal for challenging installations such as plant rooms, lift shafts and external applications.
Featuring an innovative integrated gear tray design that seamlessly incorporates into the diffuser assembly, the Bulkhead Max ensures effortless installation and maintenance access. The robust polycarbonate construction provides outstanding durability and weather resistance, whilst the advanced LiFePO4 battery technology delivers reliable 3-hour emergency operation with exceptional longevity.
Available in multiple lumen configurations and offering both manual and optional self-test functionality, the Bulkhead Max provides comprehensive flexibility for diverse emergency lighting requirements. The system’s 135° beam angle ensures optimal light distribution, whilst the 5-year comprehensive warranty covering both fitting and battery provides complete peace of mind for long-term installations.
Features
- High output emergency bulkhead delivering 1000/1500 lumens for superior illumination
- IP65 protection rating ideal for high installations such as plant rooms or lift shafts
- Integrated gear tray incorporated into diffuser for easy installation and maintenance
- Non-maintained operation with optional self-test functionality available
- Manual test and self-test options available for flexible maintenance protocols
- Emergency power options of 6W/10W with corresponding 1000/1500 lumen output
- 5-year comprehensive warranty covering full fitting and battery components
- Robust polycarbonate housing construction for enhanced durability
- Advanced LiFePO4 6.4V 6600mAh battery technology for reliable performance
- Wide 135° beam angle for optimal light distribution
- 3-hour emergency duration for extended backup operation
- 6500K colour temperature providing bright, clear emergency illumination
- Class 2 electrical safety classification for enhanced protection
- Compact dimensions of 321x167x83mm for versatile installation options
FAQ
What makes the Bulkhead Max suitable for industrial environments?
The Bulkhead Max features IP65 protection rating and robust polycarbonate construction, making it ideal for demanding environments such as plant rooms, lift shafts and external installations where moisture, dust and impact resistance are essential.
What lumen output options are available?
The CQR Bulkhead Max is available in 150lm, 1000lm and 1500lm variants, with the higher output versions delivering exceptional emergency illumination for large spaces and critical areas requiring maximum visibility.
What is the emergency duration and battery technology?
The Bulkhead Max provides 3-hour emergency operation using advanced LiFePO4 6.4V 6600mAh battery technology, which offers superior longevity and reliability compared to traditional battery systems.
Are self-test options available?
Yes, whilst the standard model operates with manual testing, optional self-test functionality is available for automated maintenance monitoring, reducing ongoing maintenance requirements and ensuring continuous compliance.
What warranty coverage is provided?
The Bulkhead Max includes a comprehensive 5-year warranty covering both the complete fitting and battery components, providing exceptional value and long-term reliability assurance.
How easy is installation and maintenance?
The innovative integrated gear tray design incorporates seamlessly into the diffuser assembly, ensuring straightforward installation and providing easy access for maintenance procedures when required.
Specifications
- Emergency Mode Lumens : 1000 / 1500
- Emergency Power : 10W
- Emergency Duration : 3 Hours
- IP Rating : 65
- Electrical Class : 2
- Battery : LiFePO4 6.4V 6600mAh
- Voltage / Frequency : AC 220-240V 50/60Hz
- Running Current : 0.05A
- Charging Power : 4.5W
- Power Factor : 0.3
- Inrush Current : 13A / 100us
- CCT : 6500K
- Beam Angle : 135°
- Lumen Maintenance L70 : 50000 Hours
- CRI : 80
- Operation Type : Non-Maintained
- Self-Test : Optional
- Housing Material : Polycarbonate
- Dimensions : 321x167x83mm
- Product Warranty : 5 Years
Downloads
- Datasheet (Adobe PDF)
