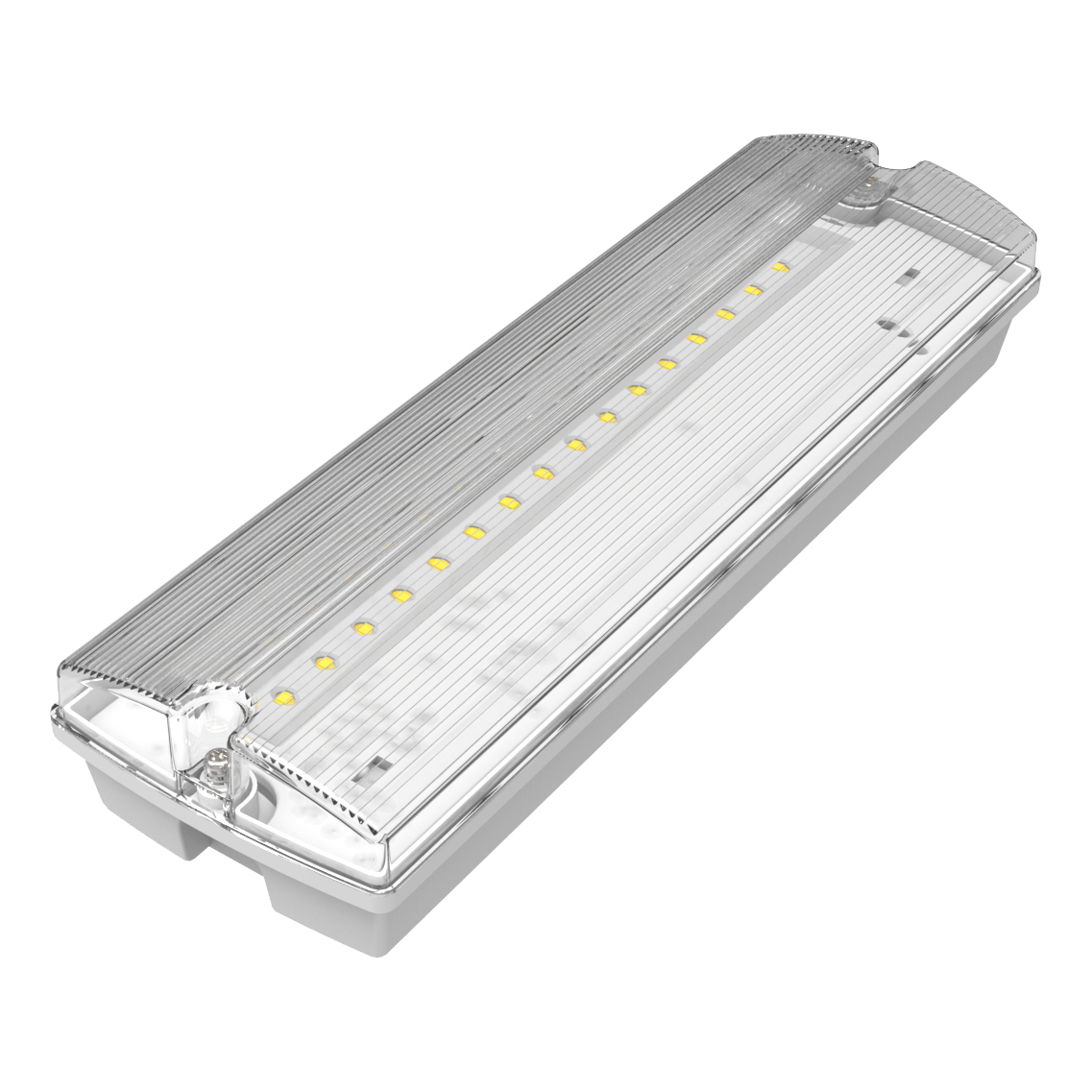

CQR LED Emergency Bulkhead Plus
£11.47 (inc VAT: £13.76)
Summary
The CQR Bulkhead Plus Emergency Bulkhead is a robust 3W LED emergency lighting solution designed for commercial and industrial applications. With its IP65 rating and Class II electrical classification, this emergency bulkhead provides reliable illumination during power outages whilst withstanding harsh environmental conditions.
Featuring a modern polycarbonate housing and delivering 150 lumens in both maintained and emergency modes, the Bulkhead Plus offers versatile installation options for surface or recessed mounting. The unit incorporates a LiFePO4 battery system providing 3 hours of emergency operation, ensuring compliance with emergency lighting regulations.
Features
- Class II, IP65, 3 hours emergency bulkhead
- Hinged gear tray with push fit terminals
- Maintained and non-maintained optionality as standard
- Installation options for surface or recessed mounting by mounting kit
- Manual test and self-test options available

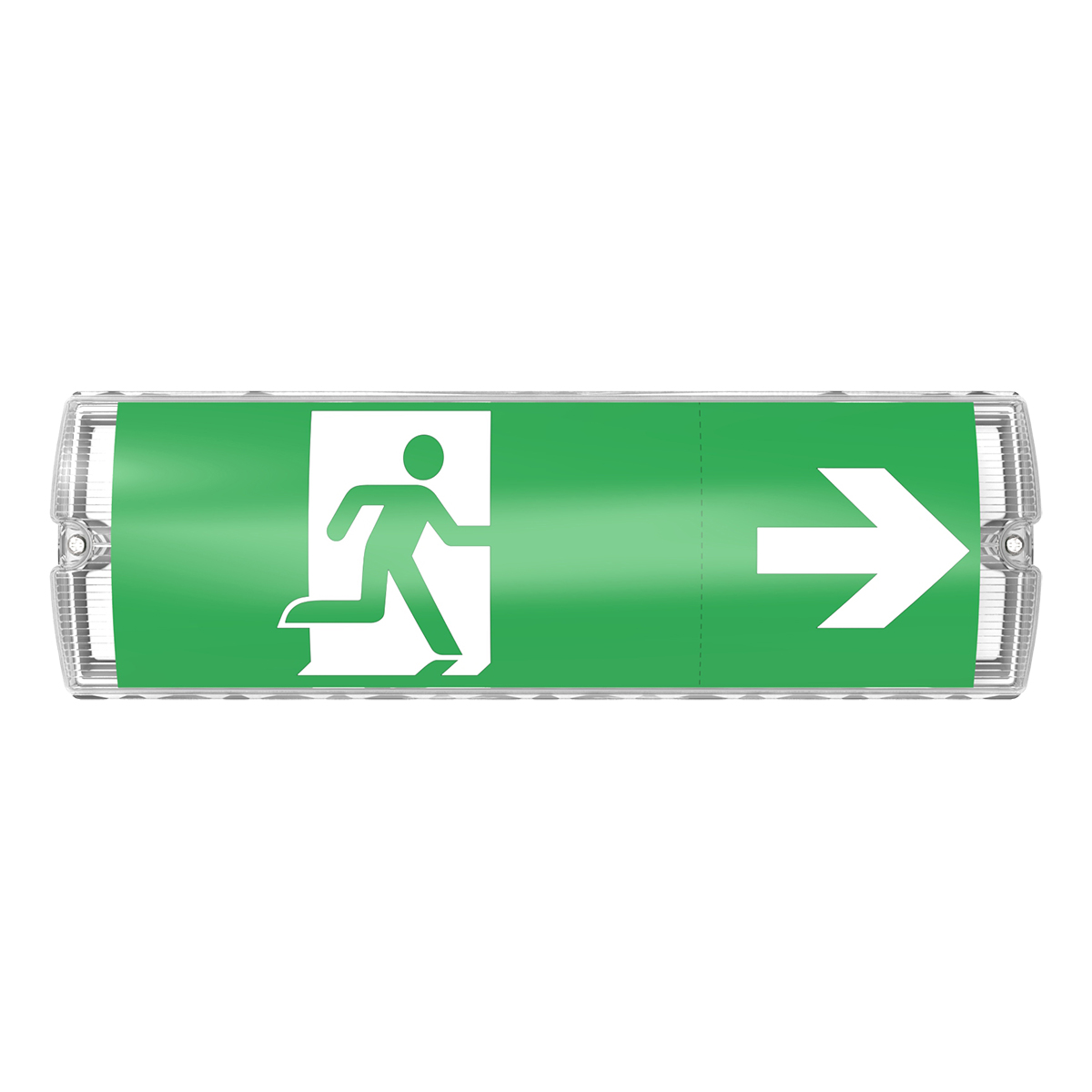

- Exit sign diffuser available to order
- 5 years warranty covering full fitting and battery
- Polycarbonate housing construction
- LiFePO4 battery technology for enhanced performance
- 6500K colour temperature with 80 CRI
- 120° beam angle for wide coverage
- 50,000 hour lumen maintenance
FAQ
What is the difference between maintained and non-maintained emergency lighting?
Maintained emergency lighting remains permanently illuminated during normal operation and continues during power failure. Non-maintained emergency lighting only operates during power outages. This bulkhead offers both options as standard.
How long does the emergency battery last?
The LiFePO4 battery provides 3 hours of emergency operation, which meets standard emergency lighting duration requirements for most applications.
Can this be installed outdoors?
Yes, with an IP65 rating, this emergency bulkhead is suitable for outdoor installation and can withstand dust ingress and water jets from any direction.
What mounting options are available?
The bulkhead can be surface mounted directly or recessed using the optional mounting kit, providing flexibility for different installation requirements.
Does this unit have self-testing capabilities?
Self-test options are available, though this particular model (BP/351/M/WH/865) does not include self-test as standard. Manual testing capabilities are included.
Specifications
- IP Rating : 65
- Electrical Class : 2
- Battery : LiFePO4 3.2V 1500mAh
- Voltage Frequency : AC 220-240V 50/60Hz
- Running Current : 0.032A
- Charging Power : 3.2W
- Emergency Power : 1W
- Power Factor : 0.4
- Inrush Current : 5A / 100us
- Maintained Mode Lumens : 150
- Emergency Mode Lumens : 150
- CCT : 6500K
- Beam Angle : 120°
- Lumen Maintenance L80 : 50000 Hrs
- CRI : 80
- Emergency Duration : 3 Hrs
- Maintained Non Maintained : Maintained & Non-Maintained
- Self Test : No
- Housing Material : Polycarbonate
- Dimensions : 351x111x63mm
- Product Warranty : 5 Years
Downloads
- Datasheet (Adobe PDF)
