DPL Wireless Disabled Toilet Alarm Kit
Summary
The Direct Page London Wireless Disabled Toilet Alarm is specifically designed to meet the requirements of the Disability Discrimination Act (DDA) in all public buildings, providing a high-quality featured system at an economical cost. This innovative wireless solution eliminates the need for complex wiring installations, requiring only two screws to fix each unit in its designated location.
The system offers exceptional flexibility and can be easily moved or expanded as requirements change. It is perfect for installation across a wide range of environments including superstores, shopping centres, day centres, doctors’ surgeries, disabled public toilets, hotels, pubs, boats, swimming pools, gyms, leisure centres, and workplaces of all types. The system complies with EN 300 220-3 and EN 301 489-3 standards.
Available as either individual components or complete kit solutions, the DPL Wireless System can be supplied as Kit 1 or Kit 2, each offering different operational methods to suit specific installation requirements. Optional features include text messaging capabilities to pocket pagers or displays, and range extension up to 5-8 miles with repeater/booster units.
Features
- DDA compliant wireless toilet alarm system
- No wiring required for installation flexibility
- Simple 2-screw mounting system
- Kit 1 multi-pull operation (pull once for alert, twice for reset)
- Kit 2 single-pull operation with separate wireless reset point

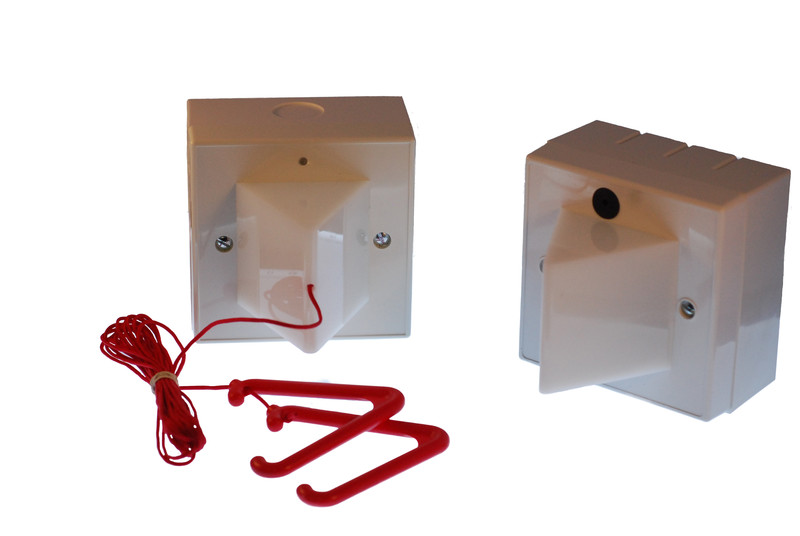

- Ceiling pull cord unit with two triangles and reassurance LED
- Over-door beacon/sounder unit for external notification
- Battery low monitoring via beacon/sounder
- Optional wrist and pocket pagers with full text messaging
- Range extension capability up to 5-8 miles with repeaters
- Programmable system with multiple ID options
- Suitable for large sites and multiple building types
- Red LED visibility for attending staff and users

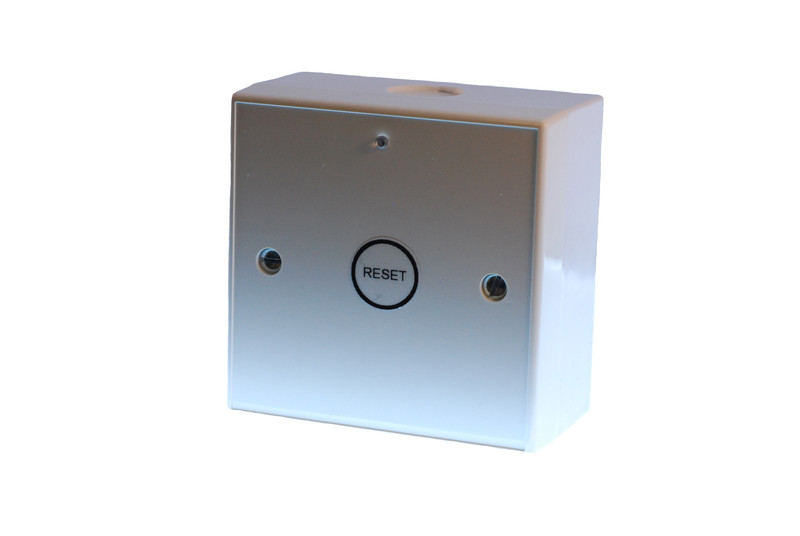

- Wireless reset point for Kit 2 door-side operation
- External aerial compatibility for extended range
FAQ
What is the difference between Kit 1 and Kit 2?
Kit 1 uses a multi-pull system where you pull the cord once for alert activation and twice for reset. Kit 2 uses a single-pull system where you pull once for alert activation and reset the alarm using a separate wireless reset point located by the door.
How easy is the installation process?
Installation is very simple, requiring only two screws to fix each unit in its required place. No wiring is needed, making the system extremely flexible and easy to relocate or expand.
What is the operating range of the system?
The standard range is 30-50 metres internally and 100-150 metres in open ground. This can be extended up to 5-8 miles using optional repeaters/boosters and external aerials.
Can I add pagers to the system later?
Yes, optional wrist or pocket pagers can be added to the system at any time. These will display the full text location of the alerting alarm, and any number of pagers can be connected to one system.
How long do the batteries last?
The pull cord and reset point batteries typically last 1-3 years depending on usage. The pocket pager battery lasts approximately 80 days, while the wrist pager battery lasts about 14 days. All units provide low battery warnings.
Does the system comply with regulations?
Yes, the system is designed to meet DDA requirements and complies with EN 300 220-3 and EN 301 489-3 standards. It also holds CE, FCC, ACA C-tick, RoHS, and IC approvals.
Specifications
- Compliance Standards : EN 300 220-3, EN 301 489-3, DDA requirements
- Installation Method : 2-screw mounting, no wiring required
- Kit Options : Kit 1 (multi-pull), Kit 2 (single-pull with reset point)
- Operating Frequency : 430-460MHz (Pull cord/Reset point), 432-436MHz/454-460MHz (Pagers)
- Transmission Format : Pocsag
- Transmitter Power : 10mW
- Operating Range : 30-50m internal, 100-150m open ground
- Extended Range : Up to 5-8 miles with repeaters
- Battery Life Pull Cord : 1-3 years (CR2450 Lithium or 2x AAA alkaline)
- Battery Life Pocket Pager : 80 days (1.5V AA alkaline)
- Battery Life Wrist Pager : 14 days (built-in rechargeable)
- Receiver Sensitivity : -108dBm (Over door unit)
- Sounder Output : 60-65dB @ 1 meter (Piezo)
- Operating Temperature : -10°C to +50°C
- Humidity Rating : 95% humidity
- Programmable IDs : Up to 250,000 different Pocsag IDs
- Pager Message Capacity : 50 messages, 512 characters per message
- Approvals : CE, FCC, ACA C-tick, RoHS, IC
