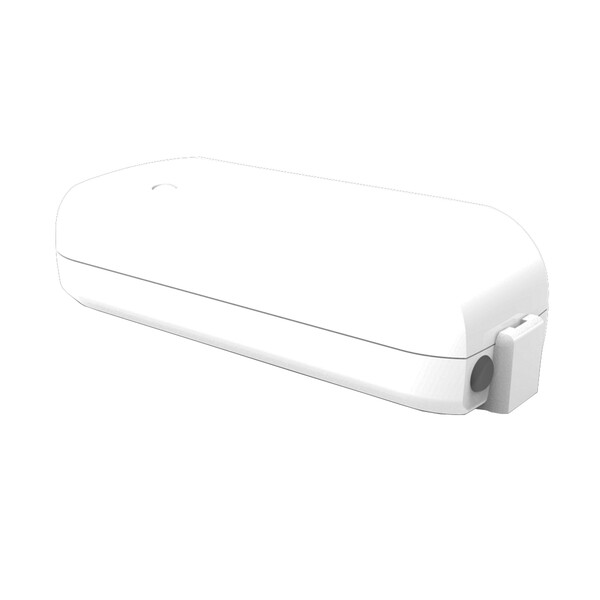

Ekho Wireless Single Input Module
£90.73 (inc VAT: £108.88)
Summary
The EK-WL8-IN is a Single Channel Input Module providing a convenient and cost effective solution for monitoring third party equipment.
The module is also controllable from the Fire Control Panel via the cause and effect programming and offers the same level of flexibility as a standard addressable module. An optional back box is available and can be bought separately.
Features
- Approved to EN54-18 and 25
- RED compliant
- Monitored Input
- Bi-directional wireless communication
- Self optimising wireless amplitude and frequency
- Tamper Switch
- Up to 10 years battery life
Specifications
- Ordering Code : EK-WL8-IN
- Operating Frequency Range : 868 – 870 MHz
- Communication Range (In Open Air) : 1200m
- Modulation Type : GFSK
- Operating Frequency Channels : 6
- Maximum Radiated Power : ≤ 25 mW
- Time Period Between Wireless Signal Transmissions : 2 minutes
- Operating Temperature Range : -10°C to +55°C
- Maximum Tolerated Humidity (Non Condensing) : 95% RH (non-condensing)
- Weight (g) / Dimensions (mm) : 70 / H 109 x W 37 x D 30 (without back box)
- Power supply (Dual 3V lithium batteries) : 1 x Primacy cell (CR123A) 1 x Secondary cell (CR2032A), 1.2 Ahr 0.24 Ahr , Up to 10 years primary battery life* 3 months secondary battery life
- Optional Back box is available : EK-BOX-02
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 3 kg |
|---|---|
| Device Type |
