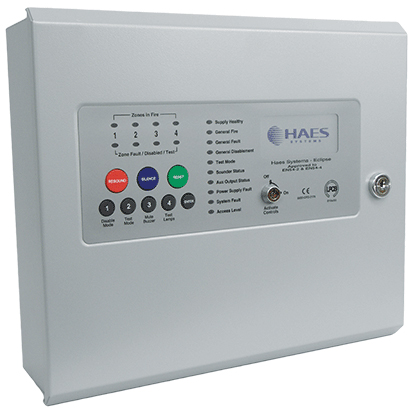

Esento Eclipse Conventional or Save-Wire Panel
Summary
The Esento Eclipse is an entry-level fire control panel from Haes, available with either 2 or 4 zones. Despite its entry-level status, it offers a range of features designed to enhance fire safety management. The panel is equipped with Twin Wire setting by DIL switch, programmable zones and outputs, and a false alarm management mode, making it a versatile choice for various applications.
The Eclipse panel is engineered to provide ease of use with its super bright LED indicators and colour-coded buttons, ensuring users can confidently manage their fire alarm systems. Its Twin Wire mode significantly reduces installation costs by allowing audio-visual devices to be connected to the same pair of cables as detectors and call points.
Features
- 2 or 4 zones available
- False alarm management mode
- Twin Wire selection by DIL switch
- Approved to EN54-2 & 4
- 3-year warranty
- Fire & fault relays
- One man walk test
- Non latching zones
- Class change inputs
FAQ
What is Twin Wire mode and how do I enable it?
Twin Wire mode allows detectors, call points, and sounders to share the same pair of cables. This “sav‑wire” technology can reduce installation costs by up to 40%. To activate it, simply set the appropriate DIL switch on the main PCB to the ‘ON’ position. Note that special sav‑wire detector bases and call points are required for proper operation.
How do I program the panel’s functions?
The panel features an eight‑button keypad along with a key‑switch. Users can program various functions—such as false alarm management, zone disablement, sounder circuit settings, and keypad code changes—by entering specific four‑digit codes. Detailed instructions for programming are provided in the manual’s “Setup & Programming” section.
Specifications
External Indications – Level 1
- Zones in Fire
- Zones in Fault, Disabled or in Test Mode
- Supply Healthy
- General Fire
- General Fault
- General Disablement
- Test Mode
- Sounder Status
- Aux Output Status
- Power Supply Fault
- System Fault
- Access Level
External Controls – Level
- Keyswitch or code entry ‘activate controls’
- Colour coded buttons for controls and programming
- Button functions:
- Resound
- Silence
- Reset
- Disable Mode
- Test Mode
- Mute Buzzer
- Test Lamps
- Enter
Internal Controls
- PSU Voltage adjustment
- DIL switches:
- Twin Wire mode
- Zone interface setting
- Access level 3 mode
Access Level 3 Options
- Select sounder resound options for zones (EN54 requirement)
- Select Type ‘A’ dependency per zone
- View / edit dependency functions
- Initialise factory settings
- Set buzzer volume
- Change keypad access code
- Non latching zones
- Short circuit as alarm zones
- Intrinsically safe zones
- Program O/Ps to cancel on Silence Alarms
- Program sounder circuit responses
Cabinet
- Mild steel, lockable, 20mm knockouts
- Colour ref: Radon MW334E Interpon powdercoat
- Back box = 300mmW x 250mmH x 80mmD
- Lid = 308mmW x 260mmH x 23mm (Return)
- Max battery size = 2 x 3.2Ah, 12v, SLA
Additional information
| Weight | 3 kg |
|---|---|
| Zones | 2, 4 |
| Device Type |
