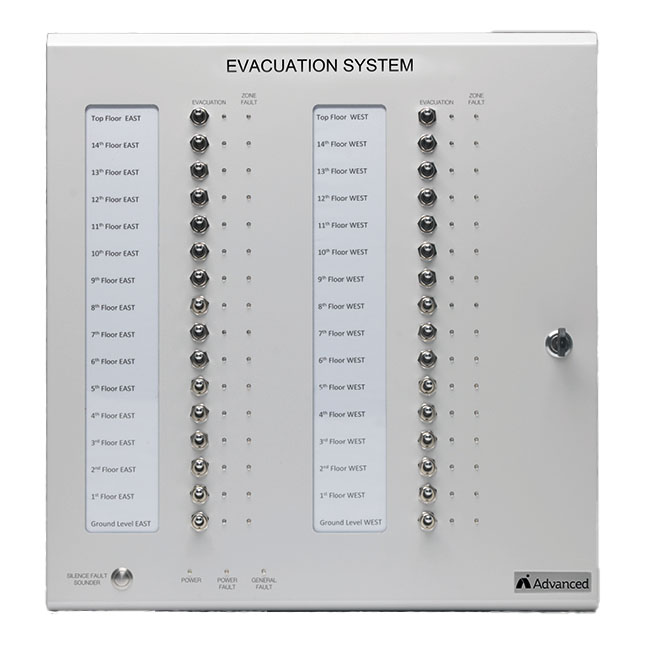

EvacGo 1-4 Loop EACIE Panel
Summary
The EvacGo panel is an advanced evacuation alert system designed to comply with the BS8629 Code of Practice. Developed by Advanced, this system integrates robustness and reliability with speed and simplicity to ensure effective evacuation alert management in buildings containing flats.
Built on the industry-leading MxPro 5 panel technology, the EvacGo panel offers proven performance, quality, and ease of use. It is available in various formats, including wired, wireless, and hybrid options, and can be supplied with 8, 16, 24, or 32 firefighter evacuation alert areas as standard. Fully expandable from 1 to 4 loops, it features the latest flash-based microprocessor technology and provides a clear overview of active evacuation zones.
The panel is suitable for a wide range of site applications, from small to large buildings, and is fully programmable on-site using Advanced’s DynamixTools PC programming software. Its robust design includes a high-tensile steel cabinet with a high-security locking mechanism, ensuring it is both vandal-resistant and accessible only to authorised personnel.
Features
- Modular construction
- Can be customised on site if required via insert label
- Fully expandable from 1 to 4 loops
- Supplied with 8, 16, 24 or 32 firefighter evacuation alert areas as standard
- Control panel with latest dual flash-based microprocessor technology
- Robust vandal-resistant steel enclosure with unique copy-protected keys
- Suitable for a wide range of site applications
- Virtual screen for simple ease of use and remote programming and servicing
- Fully programmable on site
- Designed to comply with the BS 8629 Code of Practice
Specifications
- Base Technology : Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets
- Protocols (Devices/Loop) : Apollo/Hochiki (126/127), Argus (240), AxisEN (240)
- Number Of Evac Alert Zones : Up to 32
- Number Of Loops : Dedicated 1-4 loop control panel
- Mains Supply : 200 – 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A max
- Charger Current : 2A temperature compensated
- Serial Ports : 1 x on-board RS232 connection for PC communication
- USB Interface : 1 x USB B type connection for PC communication
- Programming : PC running Windows tools
- Event Log : 5000 event & diagnostic + 500 fire
- Networking : Optional plug-in network card (MXP-509 – fault tolerant)
- Outer Box Colour : RAL 9006 silver grey
- Outer Box Dimensions : H x W x D 750 x 700 x 200
- Locking Mechanism : Solid steel construction with anti-hacksaw locking bars, patented cylinder system & unique lock
- Weight : 70 kg
- Internal Box Colour : RAL 7035
- Internal Box Dimensions : H x W x D 475 x 450 x 135
- Lock : Standard MxPro CAI Emkay Key
- Internal Box Weight : 10 Kg
- Battery (Min / Max) : 2 x 12v 4Ahr / 2 x 12v 17Ahr
- Cable Entry : 11 x rear
Downloads
- Datasheet (Adobe PDF)
Additional information
| Zones | 8, 16, 24, 32 |
|---|---|
| Fault-tolerant Network Card | No, Yes |
| Device Type | |
| Max Loops |
